Active

Q-2390

The Qualcomm Dragonwing™ Q-2390 processor combines on-device AI, vision, and real-time processing for compact, cost-optimized systems. 

Q2

Dragonwing Q-2390 brings application processing, graphics, vision, on-device AI, real-time processing, and flexible connectivity together on one integrated IoT platform. Its heterogeneous architecture provides dedicated quad-core CPU, GPU, AI, ISP, and RISC-V MCU resources, so workloads can be distributed efficiently while maintaining responsive application performance.

Wi-Fi, Bluetooth, dual Ethernet with Time-Sensitive Networking, PCIe, USB, and broad I/O provide additional connectivity and integration flexibility. Support for Android, Yocto Linux, Ubuntu, and Zephyr gives teams flexibility across a range of compact commercial, enterprise, and consumer applications. The Dragonwing Q-2390M version adds integrated LTE Cat 4 data connectivity, extending product deployment beyond local networks.

The Dragonwing Q-2390 and its industrial-grade counterpart, the Dragonwing IQ-2390, extend intelligent edge computing across a variety of industries and environments.

Benefits

Integrate AI, Vision, and Real-Time Compute

  • Dedicated quad-core CPU, GPU, AI, ISP, and RISC-V MCU resources support efficient workload partitioning
  • Local processing helps reduce cloud dependency, latency, and application CPU load

Extend connectivity with integrated cellular

  • Connect products through integrated 4G LTE Cat 4 data, Wi-Fi, Bluetooth, and dual Gigabit Ethernet
  • Support time-aware wired communications with Time-Sensitive Networking and additional system expansion through PCIe

Developer-ready from evaluation to design

  • Start with EVKs that expose key interfaces for rapid prototyping and system evaluation
  • Develop with Android, Yocto Linux, Ubuntu, and Zephyr (for the RISC-V MCU)

Build responsive visual experiences

  • Use quad-core application processing and integrated graphics to support responsive user interfaces
  • Process camera inputs with the integrated ISP for vision-enabled applications

Support security for the long haul

  • Hardware-backed security features support trusted boot, device identity, key protection, and data integrity
  • Software maintenance and lifecycle support provide a foundation for vulnerability handling and ongoing product security

Scale across product designs

  • Scale within the Dragonwing portfolio as processing, vision, AI, connectivity and packaging requirements dictate
  • Use a common compute and software foundation across retail, access control, appliances, home robotics, and commercial devices

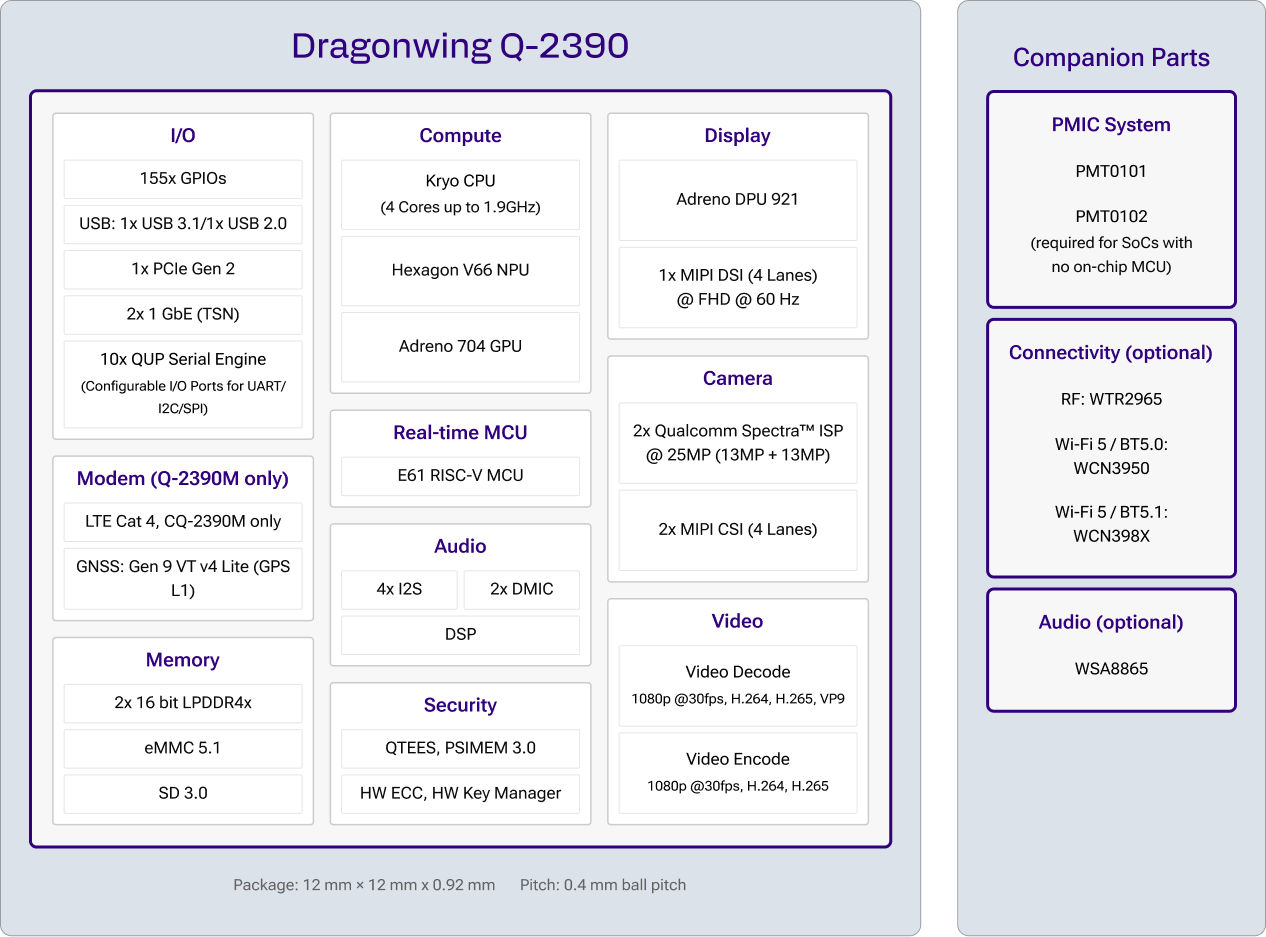

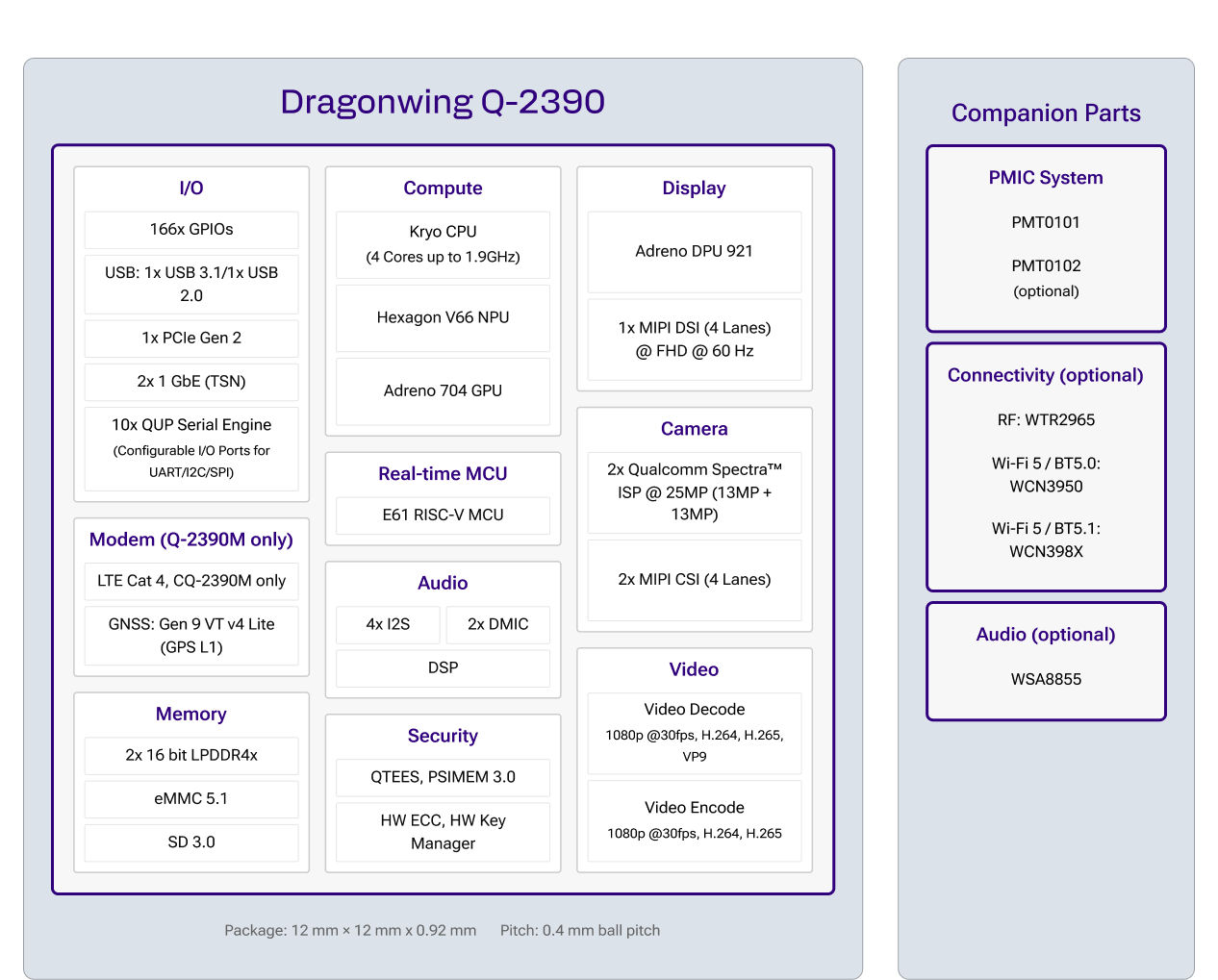

Block Diagram

Companion parts

PMIC SYSTEM

PMT0101

PMT0102 (SKU dependent)

CONNECTIVITY (OPTIONAL)

RF: WTR2965

Wi-Fi 5 / BT5.0: WCN3950

Wi-Fi 5 / BT5.1: WCN398X

AUDIO (OPTIONAL)

WSA8855

Specifications
SKU
CQ2390S-0-AA
CQ2390M-0-AA
CQ2390S-0-AB
CQ2390M-0-AB
CPU
Name
1x Arm® Cortex®-A78 Processor, 3x Arm® Cortex®-A55 Processor
1x Arm® Cortex®-A78 Processor, 3x Arm® Cortex®-A55 Processor
1x Arm® Cortex®-A78 Processor, 3x Arm® Cortex®-A55 Processor
1x Arm® Cortex®-A78 Processor, 3x Arm® Cortex®-A55 Processor
Number of Cores
11, 32
11, 32
13, 34
13, 34
Clock Speed
Up to 1.5 GHz
Up to 1.5 GHz
Up to 1.9 GHz
Up to 1.9 GHz
GPU
Name
Qualcomm® Adreno™ 704
Qualcomm® Adreno™ 704
Qualcomm® Adreno™ 704
Qualcomm® Adreno™ 704
Clock Speed
1.1 GHz
1.1 GHz
1.1 GHz
1.1 GHz
Memory
Speed
1.8 GHz
1.8 GHz
1.8 GHz
1.8 GHz
Type
LPDDR4x
LPDDR4x
LPDDR4x
LPDDR4x
Density
Up to 8 GB
Up to 8 GB
Up to 8 GB
Up to 8 GB
Bit Width
16-bit
16-bit
16-bit
16-bit
Number of Channels
2
2
2
2
Display
Display Processing Unit (DPU) Name
Qualcomm® Adreno™ 921
Qualcomm® Adreno™ 921
Qualcomm® Adreno™ 921
Qualcomm® Adreno™ 921
Maximum On-Device Display Resolution
1x FHD @ 60 Hz
1x FHD @ 60 Hz
1x FHD @ 60 Hz
1x FHD @ 60 Hz
Interface Type
1x 4-lane Mobile Industry Processor Interface (MIPI)
1x 4-lane Mobile Industry Processor Interface (MIPI)
1x 4-lane Mobile Industry Processor Interface (MIPI)
1x 4-lane Mobile Industry Processor Interface (MIPI)
Video Playback
Resolution
1080p @ 30 fps
1080p @ 30 fps
1080p @ 30 fps
1080p @ 30 fps
Codecs
H.264 (Advanced Video Coding (AVC)), H.265 (High Efficiency Video Coding (HEVC)), VP9
H.264 (Advanced Video Coding (AVC)), H.265 (High Efficiency Video Coding (HEVC)), VP9
H.264 (Advanced Video Coding (AVC)), H.265 (High Efficiency Video Coding (HEVC)), VP9
H.264 (Advanced Video Coding (AVC)), H.265 (High Efficiency Video Coding (HEVC)), VP9
  1. A78 @ 1.5 GHz
  2. A55 @ 1.5 GHz
  3. A78 @ 1.9 GHz
  4. A55 @ 1.8 GHz
  5. With TSN
  6. via WCN3950/WCN398x
  7. MCU
  8. Subject to change without notice. Refer to the Product Longevity Program page for the latest information.
