IQ-X7181
Active

IQ-X7181

Designed for premium industrial compute, featuring a 12-core 3.4 GHz CPU, 45 TOPS AI performance, Windows support, a ‑40°C to 105°C operating range, and 10+ years of product longevity.

IQ-X

The Qualcomm Dragonwing™ IQ-X Series processor powers next-generation industrial compute devices with advanced performance, designed to deliver the reliability, longevity, and intelligent edge processing required for mission-critical deployments..​​

The Dragonwing IQ-X7181 is a pre-integrated industrial compute module that is built to combine a 12-core Qualcomm Oryon™ CPU, advanced GPU, and up to 45 TOPS of AI performance. It supports up to 6 cameras, high-speed I/O including 11 USB ports (up to USB 4.0), 16 PCIe lanes, and UFS 4.0, while operating reliably in rugged environments from -40°C to 105°C. The platform supports Windows 11 IoT Enterprise LTSC , Ubuntu, and offers 10+ years of product longevity.

Contact us today for more information on the Dragonwing IQ-X7181 EVK.

Product license agreement

Applications

Industrial PCs
Industrial HMI
Medical Equipment
Factory Automation

Benefits

Cutting-edge Compute Performance

  • 12-core Qualcomm Oryon CPU
  • Designed to deliver breakthrough single- and multithread performance built to handle demanding workloads

Leading On-device AI Capabilities

  • 45 Dense TOPS with dedicated NPU
  • Supports advanced machine vision, analytics, and decision-making locally
  • Aims to eliminate unpredictable costs and latency from cloud AI

Scalable Connectivity and Storage

  • 11 USB port up to USB 4.0
  • 16 PCIe lanes
  • UFS 4.0
  • DisplayPort 1.4a

Advanced Multimedia Experiences

  • Supports up to 2x 5K or 4x 4K concurrent displays
  • 4K120 decode (VP9, AV1)
  • 4K60 encode (AV1)

High-Speed Vision Integration

  • Dual ISPs
  • Up to 6 cameras
  • 36 MP ZSL and RGB plus IR

Industrial-Grade Reliability

  • Device operating junction temperature: -40°C to 105°C
  • Long-term availability and supply chain commitment

Block Diagram

Companion parts

CAMERA PMIC

PM8010

SPEAKER AMP

WSA8840
WSA8845

I/O EXPANDER (OPTIONAL)

QPS615

CONNECTIVITY (OPTIONAL)

Wi-fi 7:
WCN7850/WCN7851

AUDIO

WCD9385

Processor Specifications
CPU
12-core Qualcomm® Oryon™ @ 3.4 GHz
NPU
Qualcomm® Hexagon™
Up to 451 TOPS
GPU
Qualcomm® Adreno™ @ 1.25 GHz
Memory
8x16-bitLPDDR5x @ 4200 MHz
Up to 64 GB
DSP
Qualcomm® Hexagon™ V73M
  1. Dense TOPS
  2. 30 fps ZSL
  3. 1x RGB camera + IR
  4. With DisplayPort 1.4a
  5. Supports UART/I2C/I3C/SPI
  6. Gear 5. For on-board memory.
  7. Subject to change without notice. Refer to the Product Longevity Program page for the latest information.

Dragonwing IQ-X7181 Module Options

Note: to leverage the best experience for the product comparison table, please use the desktop to view content.

4 of 4 total products

Product

CPU

Name

Number of Cores

Clock Speed

GPU

Name

Clock Speed

Memory

Speed

Type

Density

DSP

Name

Display

Interface Type

Interfaces

Supported Interfaces

Software Options

Operating System

IQ-X7181

IQX7181MD-1-AC

Qualcomm® Oryon™

12

3.4 GHz

Qualcomm® Adreno™

1.25 GHz

4200 MHz

LPDDR5x

64 GB

Qualcomm® Hexagon™ V73M

1x 4-lane Embedded DisplayPort (eDP)
DisplayPort

QUP5


221x GPIO

Windows
Ubuntu

IQX7181MD-1-AB

Qualcomm® Oryon™

12

3.4 GHz

Qualcomm® Adreno™

1.25 GHz

4200 MHz

LPDDR5x

32 GB

Qualcomm® Hexagon™ V73M

1x 4-lane Embedded DisplayPort (eDP)
DisplayPort

QUP5


221x GPIO

Windows
Ubuntu

IQX7181MD-1-AA

Qualcomm® Oryon™

12

3.4 GHz

Qualcomm® Adreno™

1.25 GHz

4200 MHz

LPDDR5x

16 GB

Qualcomm® Hexagon™ V73M

1x 4-lane Embedded DisplayPort (eDP)
DisplayPort

QUP5


221x GPIO

Windows
Ubuntu

IQX7181MD-0-AA

Qualcomm® Oryon™

12

3.4 GHz

Qualcomm® Adreno™

1.25 GHz

—

—

—

Qualcomm® Hexagon™ V73M

1x 4-lane Embedded DisplayPort (eDP)
DisplayPort

QUP5


221x GPIO

Windows
Ubuntu

  1. Dense TOPS
  2. 30 fps ZSL
  3. 1x RGB camera + IR
  4. With DisplayPort 1.4a
  5. Supports UART/I2C/I3C/SPI
  6. Gear 5. For on-board memory.
  7. Subject to change without notice. Refer to the Product Longevity Program page for the latest information.

EARLY ACCESS

Ready to get started?

Apply to join the early access program for the Dragonwing IQ-X7181.

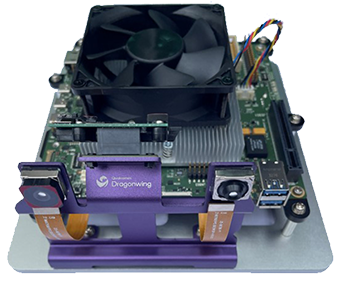

Development Hardware

AIMB-293
AIMB-293 is an industrial motherboard powered by the Qualcomm Dragonwing IQ-X processor. It features Oryon CPU (12-core and 10-core SKUs), Spectra™VPU, Adreno™ Snapdragon X GPU and Hexagon™ NPU up to 75 TOPS of edge AI performance. The motherboard supports 4x 4-lane MIPI-CSI (C-PHY) and 2x DisplayPort, making it ideal for vision intelligence applications, Windows On Arm 11 IoT erterprise is supported 10 years of expanded maintenance for MS Windows 11 LTSC.

KEY FEATURES:

  • 2x DP with DP++ @ 4K60P and 1x LVDS @2K60P.
  • 9x USB3.2 Gen1 and 2x USB2.0, 3x GbE.
  • 1x M.2 M-Key Type 2280 (PCIe Gen4 x4) for high-speed NVMe SSDs.
  • 1x M.2 E-Key Type 2230 (PCIe and USB2.0) for Wi-Fi 7 and BT 5.3.
  • 1x M.2 B-Key Type 3042/52 (USB3.2 Gen1) for the certified 5G module.
  • Slim and quiet thermal solution release power for extreme performance
By:Advantech Co., Ltd.
