Robotics RB6 Platform
Contact Sales
RB6

Delivering power-efficient, advanced edge-AI computing and video processing performance with 5G connectivity for autonomous robotics

The Qualcomm Robotics RB6 Platform powers the next-generation robotics and intelligent machines including autonomous mobile robots (AMRs), delivery robots, highly automated manufacturing robots, urban air mobility (UAM) aircrafts, autonomous defense solutions, and beyond.

The Qualcomm Robotics RB6 platform sits at the premium tier of Qualcomm Technologies’ robotics solutions, delivering expanded capabilities that take enterprise and industrial robotics innovation to the next level with enhanced AI and 5G. The new solution delivers st...

Product license agreement
Featured DocumentsProduct Brief
Benefits
default icon alt text
All-in-one hardware solution

Your camera, computer vision, AI and 5G hardware development needs are integrated into one platform.

default icon alt text
Easy-to-use, comprehensive, customizable premium AI SDK

The Qualcomm® Intelligent Multimedia SDK brings together multimedia, AI and ML, computer vision (CV), and networking building blocks to support end to end deployment of robotic applications.

default icon alt text
Power-efficient on-device AI computing and video processing

The enhanced Qualcomm® AI Engine provides 70-200 TOPS (INT8) of performance at very low power and delivers maximum performance per watt. Also our powerful image signal processor (ISP) provides support for up to seven concurrent cameras, or up to 24 simultaneous video streaming cameras.

default icon alt text
Latest 5G connectivity

Qualcomm Dragonwing Robotics RB6 platform provides 5G connectivity with support for global sub-6GHz and mmWave bands in mainstream, enterprise, and private networks. The platform’s flexible architecture with expansion cards supports evolving connectivity features allowing Qualcomm Robotics RB6 platform to deliver support for 3GPP Release 15, and Releases 16, 17 and 18 features as cards become available in the future.

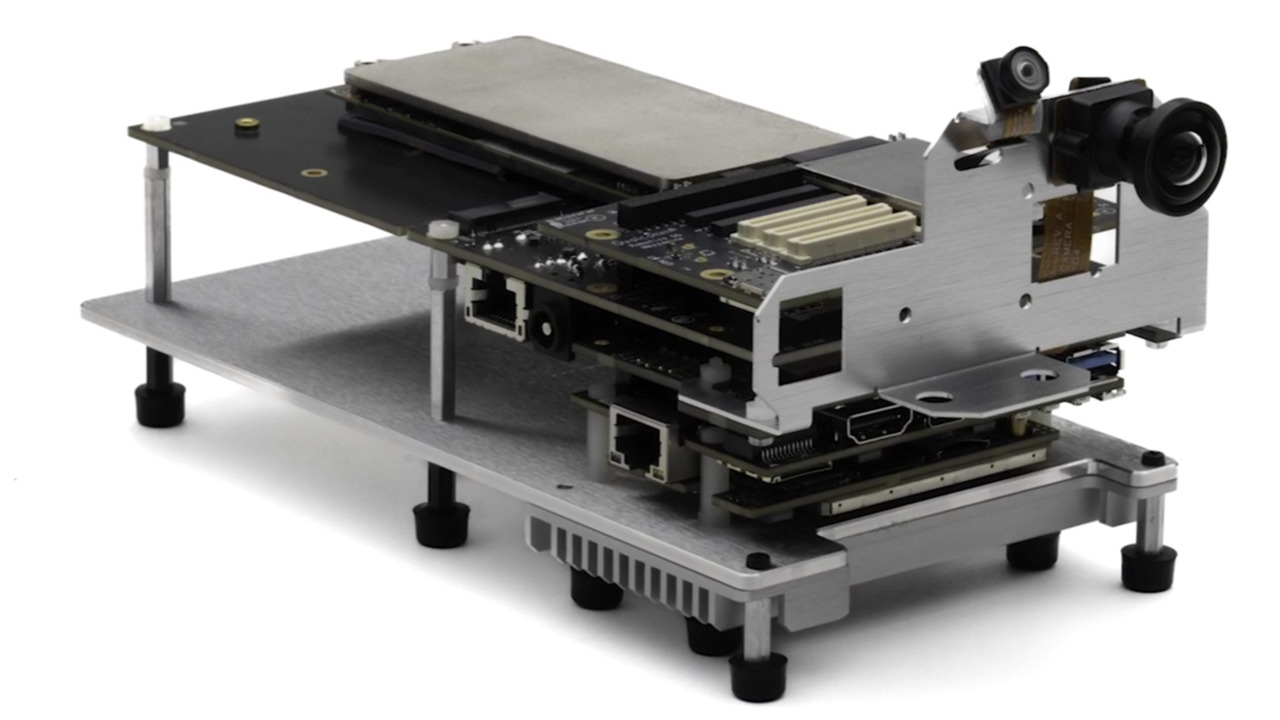

Qualcomm Robotics RB6 5G and AI Platform

01:13
Qualcomm Robotics RB6 5G and AI Platform

1:13

Current Time 0:00
Duration 1:13
Loaded: 8.11%
Stream Type LIVE
Remaining Time 1:13

1x
  • Chapters
  • descriptions off, selected
  • captions off, selected
  • en (Main), selected

Features

  • Qualcomm® Spectra™ 480 Image Signal Processor designed to deliver a premium camera experience that can process 2 Gigapixels per second with high-performance capture of 200-megapixel photos, 8K video recording and 4K HDR video capture.
  • Qualcomm® Adreno™ 650 Visual Processing Subsystem deliver’s quality graphics for larger than-life immersive experiences using the Adreno graphics processing unit (GPU) and video processing unit (VPU).
  • Enhanced Qualcomm AI® Engine with Qualcomm Hexagon DSP for on-device AI processing at the edge and delivers premium computer vision (CV) experiences for high-performance use cases.
  • Qualcomm® Kryo™ 585 CPU: Manufactured in 7nm process node, optimized across four high-performance Kryo Gold cores and four low power Kryo Silver cores.
  • Qualcomm® Secure Processing Unit (SPU) offers vault-like security that is designed to help safeguard your facial data, iris scan and other biometric data. It supports hardware root of trust, Qualcomm® Trusted Execution Environment, Secure boot and camera security.
  • Advance connectivity using Qualcomm® FastConnect™ 6800 System with Wi-Fi 6
  • Support for 12 cameras by D-PHY and 18 cameras by C-PHY (seven concurrent) and AI processing up to 24 simultaneous 1080p video streams.
Specifications
Qualcomm® Artificial Intelligence (AI) Engine
Qualcomm® Hexagon™ Processor Features
Qualcomm® Hexagon™ Scalar Accelerator
CPU
Name
Qualcomm® Kryo™ 585
Clock Speed
Up to 2.84 GHz
DSP
Name
Qualcomm® Hexagon™ Tensor Accelerator
GPU
Name
Qualcomm® Adreno™ 650
APIs
OpenGL® ES, OpenCL™
Wi-Fi
Generation
Wi-Fi 6 (ready), Wi-Fi 4, Wi-Fi 5
Standards
802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.11ad, 802.11ay, 802.11ax
Security
WPA3 Enhanced Open, WPA3 Personal, FIPS 140-2, WPA3 Enterprise, WPA3 Easy Connect
Features
Dual-Band Simultaneous (DBS)

Compare related products

Note: to leverage the best experience for the product comparison table, please use the desktop to view content.

1 of 2 total products

Product

Qualcomm® Artificial Intelligence (AI) Engine

Qualcomm® Hexagon™ Processor Features

GPU

APIs

Memory

Type

Density

Part

Part Number(s)

Other

Qualcomm Robotics RB6 Platform

Qualcomm® Hexagon™ Scalar Accelerator

OpenGL® ES
OpenCL™

LPDDR5

Up to 16 GB

Cloud AI 100
QRB5165
