Foundational innovations shaping 6G: MIMO

What you should know:

• MIMO has long been a foundational technology for wireless connectivity and remains a foundation of 6G. Successive advances in MIMO techniques have continuously improved capacity, coverage and user experience while helping shape the evolution of cellular systems.
• 6G extends the MIMO evolution with a system-wide design framework and Giga-MIMO. Across all spectrum layers, 6G MIMO scales coverage, reliability and capacity, while Giga-MIMO unlocks a new upper mid-band capacity layer through denser antenna arrays and greater spatial reuse.
• Qualcomm Technologies is helping bring the next generation of MIMO from research into deployment. Through innovations spanning Giga-MIMO, device evolution, energy-efficient system design, integrated sensing and end-to-end prototyping, we are helping shape how MIMO continues to evolve for the 6G era.

Mobile data demand is entering a new phase. Video, XR and cloud services continue to grow, while AI and agentic AI introduce a new class of persistent, uplink-intensive traffic. 6G is being designed for this shift, and at the center of that design, once again, is MIMO.

MIMO has been a foundational technology across multiple generations of cellular systems, continuing to evolve as networks have expanded capacity, coverage and performance. Over time, advances in antenna systems, beamforming, spatial multiplexing and interference management have made MIMO one of the most important building blocks of modern wireless connectivity.

5G NR took MIMO another decisive step forward with the introduction of Massive MIMO. By deploying a much larger number of base-station antennas, Massive MIMO enabled highly focused 3D beamforming, extending coverage, improving network performance and tracking users as they moved through the network, including those on higher floors of buildings. Combined with multi-user MIMO (MU-MIMO), which allows multiple users to share the same time and frequency resources simultaneously, it delivered significantly higher capacity, more uniform coverage, greater spectral efficiency and a markedly improved user experience. Massive MIMO became one of the breakthrough innovations that helped bring the full promise of 5G to life.

Rather than replacing the innovations that made 5G successful, 6G is building on them. In 6G, MIMO evolves from a high-impact feature into a system-wide design framework that spans all 6G spectrum bands. Giga-MIMO extends the Massive MIMO paradigm into the 6 to 8 GHz upper mid-band with denser antenna arrays and greater spatial reuse.

Qualcomm Technologies continues to contribute key advances in MIMO technologies and the development of next-generation MIMO innovations for 6G.

Giga-MIMO unlocks upper mid-band capacity critical to 6G

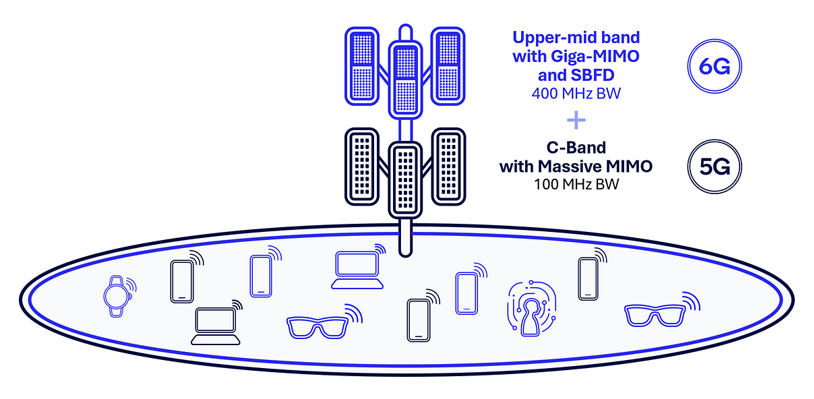

Long-term capacity growth requires new spectrum. Upper mid-band spectrum in the 6-8 GHz range offers significantly larger contiguous bandwidth, enabling a new wide-area capacity layer for 6G.

Higher frequencies introduce increased propagation loss, but they also bring an important advantage: shorter wavelengths. Those shorter wavelengths allow a much higher antenna density within the same panel form factor used for lower mid-band systems. Giga-MIMO leverages this property by scaling antenna counts proportionally without increasing the panel size.

For a given conducted power, these large arrays increase effective isotropic radiated power through narrower beamforming. This helps compensate for higher path loss. At the same time, improved spatial resolution and interference control enable greater user multiplexing and spatial reuse. As a result, this allows networks to serve more users at the same time while reducing interference between them.

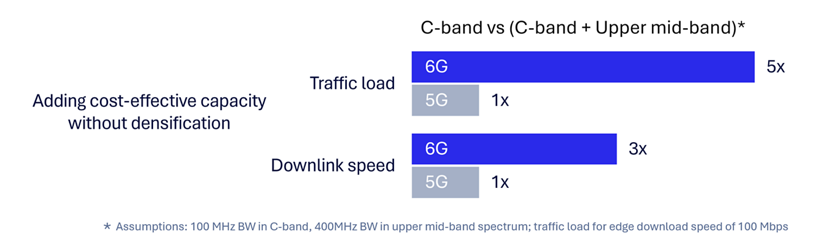

Our system-level evaluations show that adding an upper mid-band layer can support about five times network load scaling and about three times higher average user throughput, while maintaining improved performance across users. While a typical 5G multi-user MIMO system can support up to 16 layers in the downlink, 6G Giga-MIMO can go up to 32 downlink layers due to better spatial resolution, leading to both network and user performance gains. The significance is not only higher peak capacity. Giga-MIMO makes upper mid-band spectrum a practical wide-area capacity layer by combining wider bandwidth, denser antenna arrays and spatial-domain scaling within deployable infrastructure constraints.

Designing 6G MIMO for real-world robustness

Scaling antennas is only part of the 6G MIMO story. The real challenge is ensuring those gains translate into consistent, reliable performance across real-world conditions for different spectrum bands, deployment models and device capabilities.

One important innovation is the ability for the network to better understand how signals propagate between the base station and the device. In 6G, this procedure is tailored to the deployment scenario — balancing accuracy and overhead to ensure strong performance without excessive complexity.

At a high level, 6G builds on a layered approach to channel awareness:

• A reliable baseline ensures consistent performance across all users and bands.
• More advanced techniques are applied where they deliver clear system gains, such as in higher-frequency bands and dense multi-user scenarios.

This “fit-for-purpose” design ensures that MIMO scales efficiently, rather than relying on a single, overly complex solution.

Techniques such as spatially-coupled MIMO (SC-MIMO) build on this trend by allowing devices to better separate overlapping data streams. The result is more robust and efficient performance across a wider range of real-world conditions.

At the same time, uplink performance and device constraints are treated as first-order design priorities. 6G systems are designed with practical user equipment (UE) limitations in mind, including antenna capability and power efficiency, while still advancing uplink MIMO and overall system performance.

Overall, 6G MIMO is designed not just for peak performance, but for scalable, deployable gains. By combining adaptable channel state information (CSI) strategies, stronger device capabilities and balanced system design, it ensures that the benefits of 6G can be realized consistently across networks, devices and use cases.

Bringing energy efficiency to 6G MIMO

Energy efficiency is a core design principle for 6G MIMO. As antenna arrays grow larger, they can deliver greater capacity, coverage and performance, but they also increase power and processing requirements across both the network and the device.

To address this challenge, 6G MIMO incorporates a range of energy-saving innovations. Networks can dynamically activate only the antennas and resources needed for current traffic conditions, while more efficient reference signaling and advanced signal processing reduce overhead without sacrificing performance.

Energy efficiency extends beyond the network. 6G is being designed with practical device constraints in mind, helping ensure that gains in capacity and coverage translate into real-world user benefits without a proportional increase in power consumption or battery impact.

As a result, energy-efficient MIMO is not a single feature but a system-wide design objective spanning antenna architectures, signal processing, AI/ML-assisted optimization and RF efficiency. The goal is simple: deliver the benefits of larger-scale MIMO while maintaining the efficiency required for broad commercial deployment.

Extending 6G MIMO gains to the device

6G MIMO evolution extends to the UE, ensuring that system-level gains translate into real-world performance.

Key areas of innovation include antenna and transmit power optimization under practical constraints, including higher power classes and UE-autonomous or network-assisted antenna selection. Uplink waveform evolution with MIMO support, such as 2-layer DFT-s-OFDM, further improves uplink efficiency.

Efficient reference signal design introduces new sequence designs to improve power-amplifier operation efficiency. AI-assisted beamforming and channel feedback, including configurable or downloadable uplink codebooks, enable better adaptation to different UE antenna structures.

Power saving remains critical. Dynamic adaptation of receive antennas based on load and efficient support of decoupled uplink and downlink operation help balance performance and energy consumption.

These improvements ensure better uplink and downlink performance, scalability with wider bandwidth and larger arrays, and robustness in real-world conditions. The result is a system where gains are not only theoretical, but achievable in actual devices.

Expanding MIMO beyond communications with wireless sensing

Wireless networks have traditionally been designed to connect devices. In 6G, the same infrastructure may also sense and understand its environment, opening the door to new experiences and services beyond communications alone. With integrated sensing and communications (ISAC), the same large-aperture arrays that enable 6G MIMO to scale coverage and capacity also enable high-resolution sensing.

Giga-MIMO provides fine angular resolution through large effective apertures and fine range resolution through wide bandwidth. 6G ISAC allows the base station to reuse communication infrastructure, reference signals and waveforms to detect, locate, track and classify passive objects.

With hybrid beamforming, a single MIMO panel can simultaneously serve ground users and steer its sensing field toward aerial targets. A wide transmit beam combined with digital receive processing enables separation of closely spaced objects.

Wider bandwidth, up to 400 MHz, improves range resolution and detection range, while networks of nodes provide geometric diversity to extend sensing coverage. These capabilities can also support high-fidelity radio digital twins, improving overall network efficiency.

In this way, large-scale 6G MIMO goes beyond extending capacity and coverage by enabling new services such as ISAC.

Proving the path with end-to-end prototyping

Qualcomm Technologies is actively developing and prototyping the key technologies that form the foundation of future networks, translating 6G MIMO innovations into deployable systems. This prototype platform enables wideband RF/antenna MIMO research using the Qualcomm Dragonwing QRU100 Platform and Qualcomm QTR185 RF transceiver chipsets.

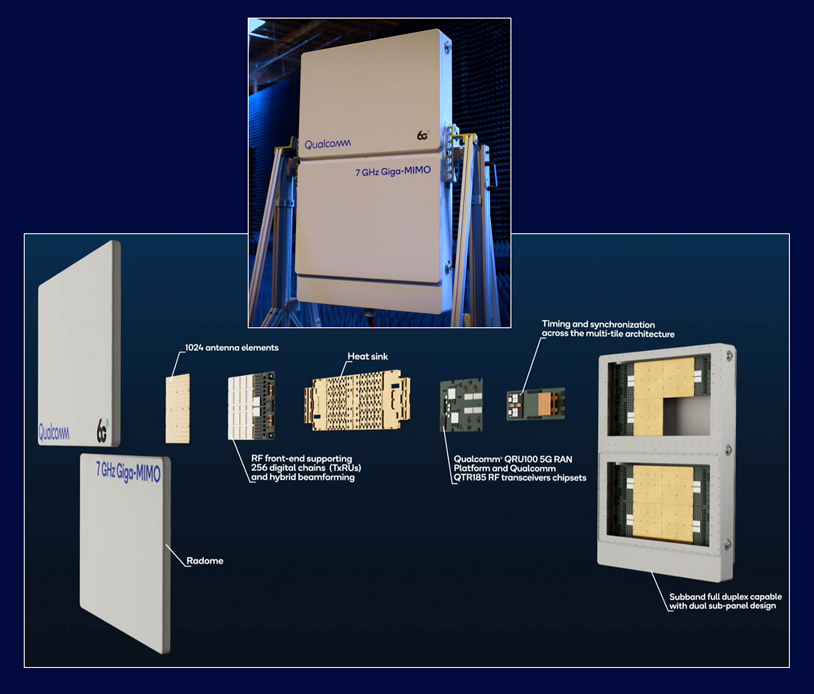

At a system level, our prototype platform further demonstrates how Giga-MIMO can scale performance through wider bandwidths, increased spatial layers, higher-order modulation and advanced waveform enhancements. The prototype base station incorporates 1024 antenna elements and 256 digital ports, while the prototype device supports up to eight downlink layers and four uplink layers to maximize spectral efficiency and network capacity.

Beyond communications, Qualcomm Technologies is also advancing ISAC through prototyping. Testbeds operating at 3.5 GHz and 28 GHz reuse communication infrastructure and reference waveforms to enable sensing with minimal overhead. These systems have demonstrated real-time aerial drone detection, accurate range and angle estimation up to a kilometer, and classification of different drone types at extended ranges, with public demonstrations including MWC Barcelona 2026.

Together, these prototypes demonstrate a clear path from 6G MIMO innovation to real-world deployment, validating how Giga-MIMO and ISAC can be integrated into scalable, high-performance wireless systems.

MIMO: an evolving foundation of wireless innovation

6G MIMO is the latest step in the continued evolution of MIMO technologies, building on advances that have expanded wireless capacity, coverage and performance across successive generations of cellular systems. Each generation added more antennas, sharper spatial processing and richer multi-user operation while preserving the same idea: use spatial dimensions to unlock more capacity, better coverage and more efficient spectrum use.

6G evolves MIMO from a feature into a system-wide design framework spanning low, mid-band, upper mid-band and mmWave spectrum. Giga-MIMO extends the Massive MIMO paradigm into the 6-8 GHz upper mid-band through denser arrays, improved EIRP, sharper spatial resolution and interference control.

Qualcomm Technologies has helped drive key advances in MIMO technologies across multiple generations of wireless innovation. That leadership continues through end-to-end Giga-MIMO prototypes, standards contributions and ongoing research that is helping shape the next stage of MIMO for 6G.
