On-Device Agentic AI Workflows with Qualcomm Hexagon NPU and LLMWare.ai

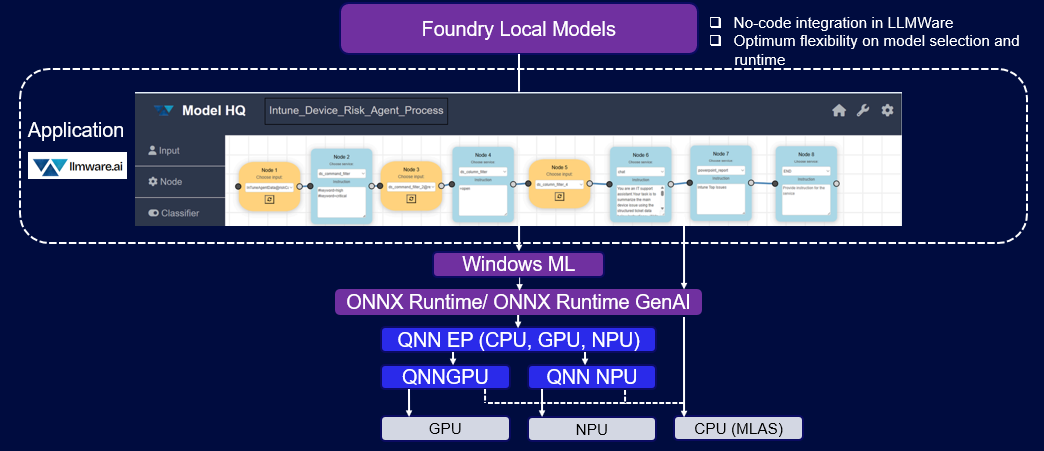

Application Layer (User / Workflow Interface) provides

• No-code integration to Microsoft Foundry Local and other model repositories
• No-code agent builder and workflow UI
• Custom agents, templates, batch processing, and API integrations

Example: Jira ingestion → prioritization → summarization → CSV + notifications

Model & Knowledge Layer allows

• Ingesting SLMs and local LLMs optimized for Snapdragon NPU


• Integrated AI knowledge management for:
  • Document parsing, search, and vector databases
  • Prompt management and generation pipelines
  • RAG-style workflows and structured processing

Agent Orchestration Layer to create

• Agent-based process orchestration engine
• Multi-step workflow chaining (data → model → logic → action)
• Scheduling for hands-free, time-based execution



Runtime & Inference Layer for flexibility

• Windows ML + ONNX Runtime / GenAI stack


• Qualcomm AI Engine with Qualcomm AI Engine Direct SDK execution providers


• Heterogeneous compute orchestration across:
  • NPU (primary for AI inference)
  • GPU and CPU fallback paths



Hardware Layer for edge execution on

• Snapdragon X Series platform with on-device NPU acceleration for:
  • Low latency inference
  • Performance per watt optimized for productivity and speed
  • Fully offline / private execution

Build-along time:

Prerequisites:

1. Set up LLMWare’s Model HQ for PCs with Snapdragon: LLMWare AI for Complex Enterprises


2. Install Microsoft Foundry Local : Get started with Foundry Local - Foundry Local | Microsoft Learn


3. Configure your enterprise email account to receive notifications


4. Obtain your JIRA integration API token

LLMWare’s Model HQ offers an intuitive, no-code UI to build innumerable workflows that are relevant for the enterprise. Let’s explore one such workflow further.

Use case:

• Automate Jira ticket overload into a daily insight pipeline using LLMWare’s Model HQ no-code agent platform running locally on Snapdragon X2 Elite


• Connect to Jira to filter priority issues and generate summaries using an NPU-optimized model through a simple drag-and-drop workflow


• Establish scheduled runs to produce structured reports and send notifications, delivering timely, actionable insights to stakeholders

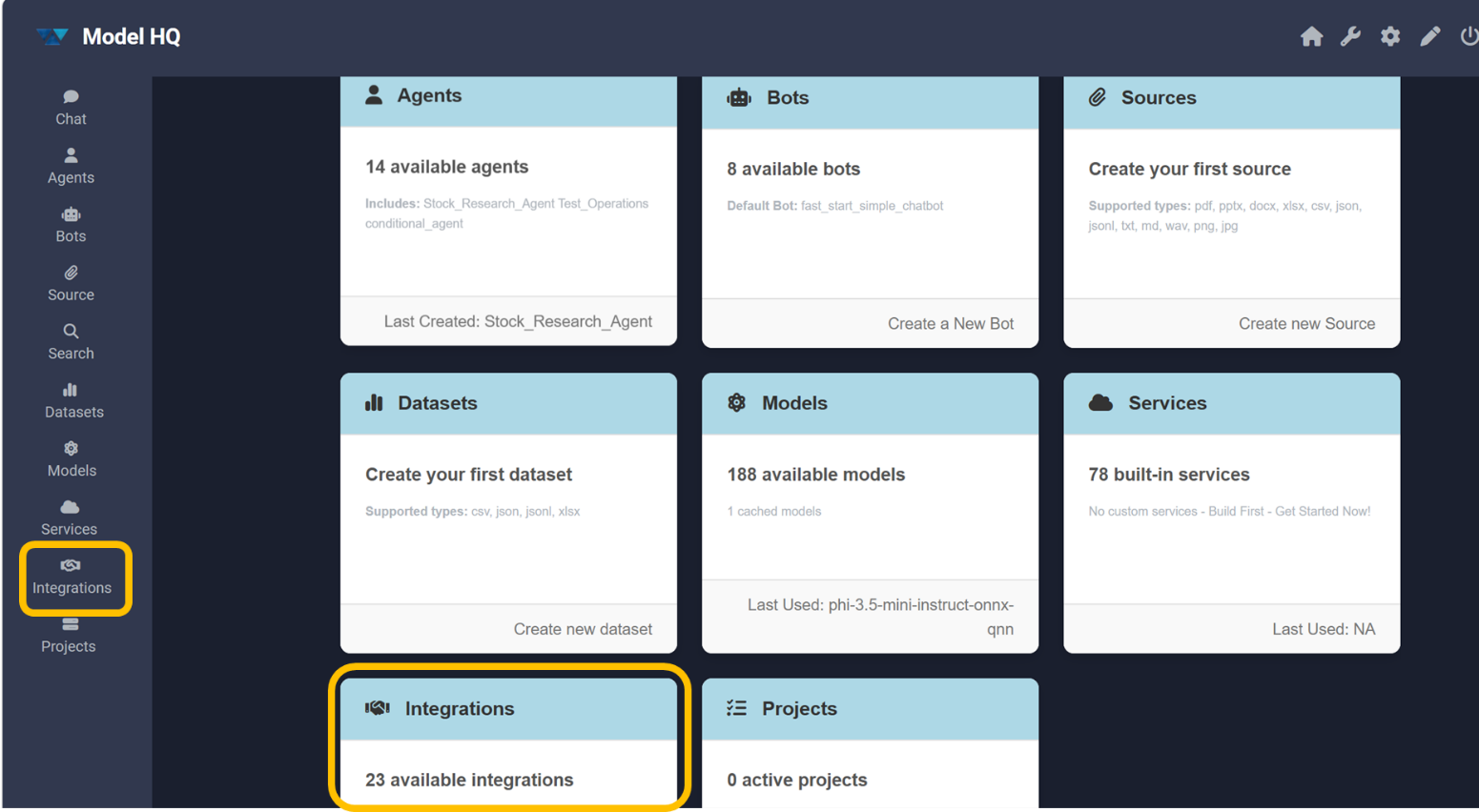

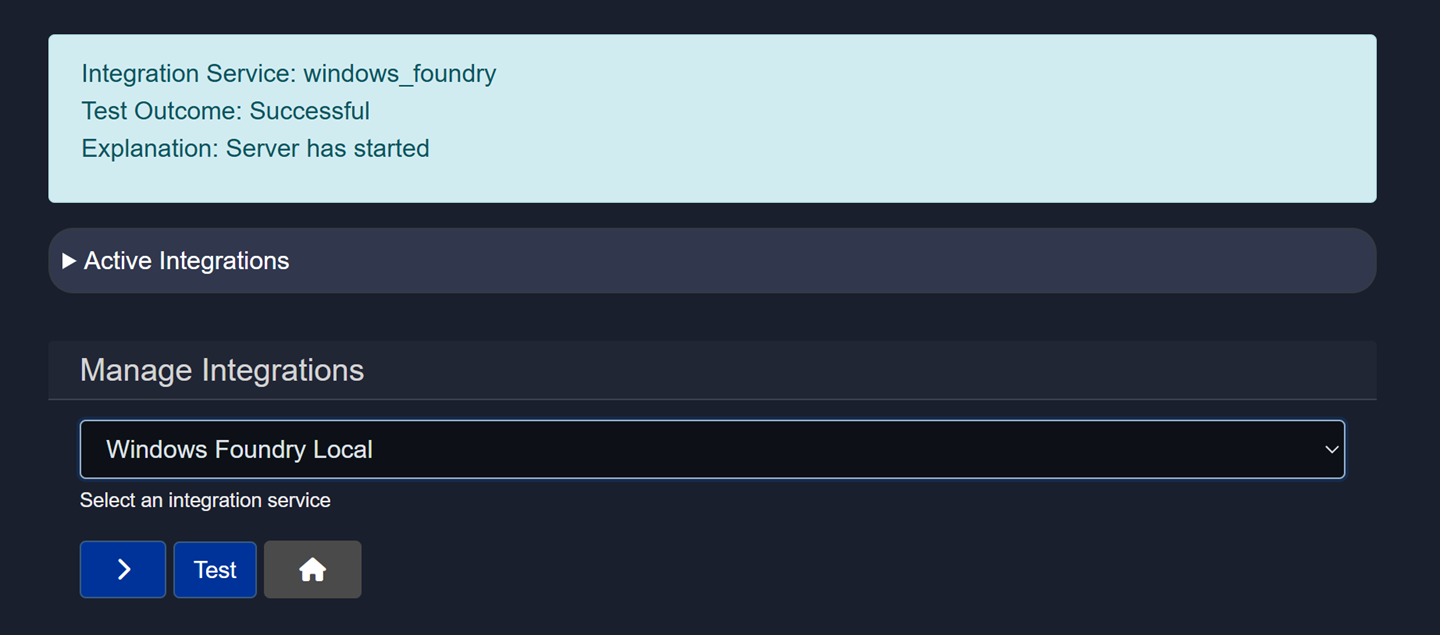

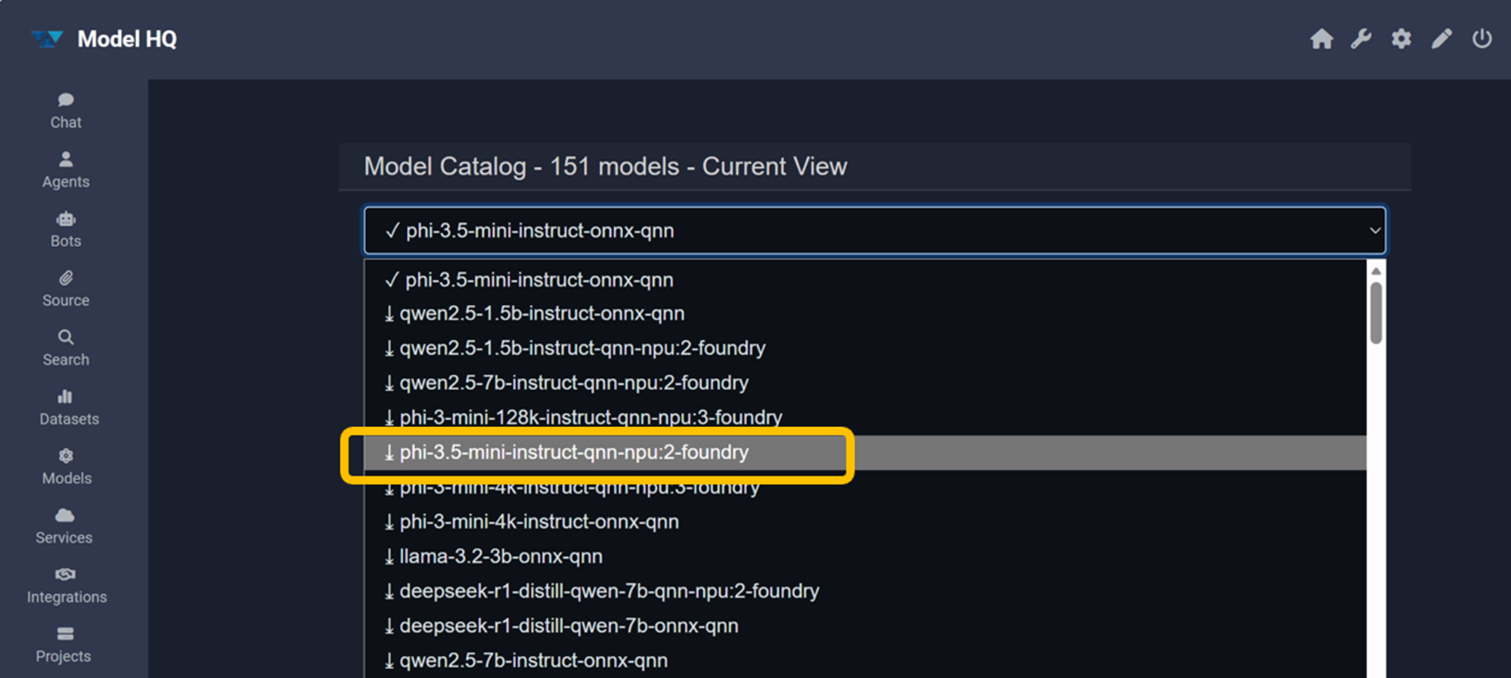

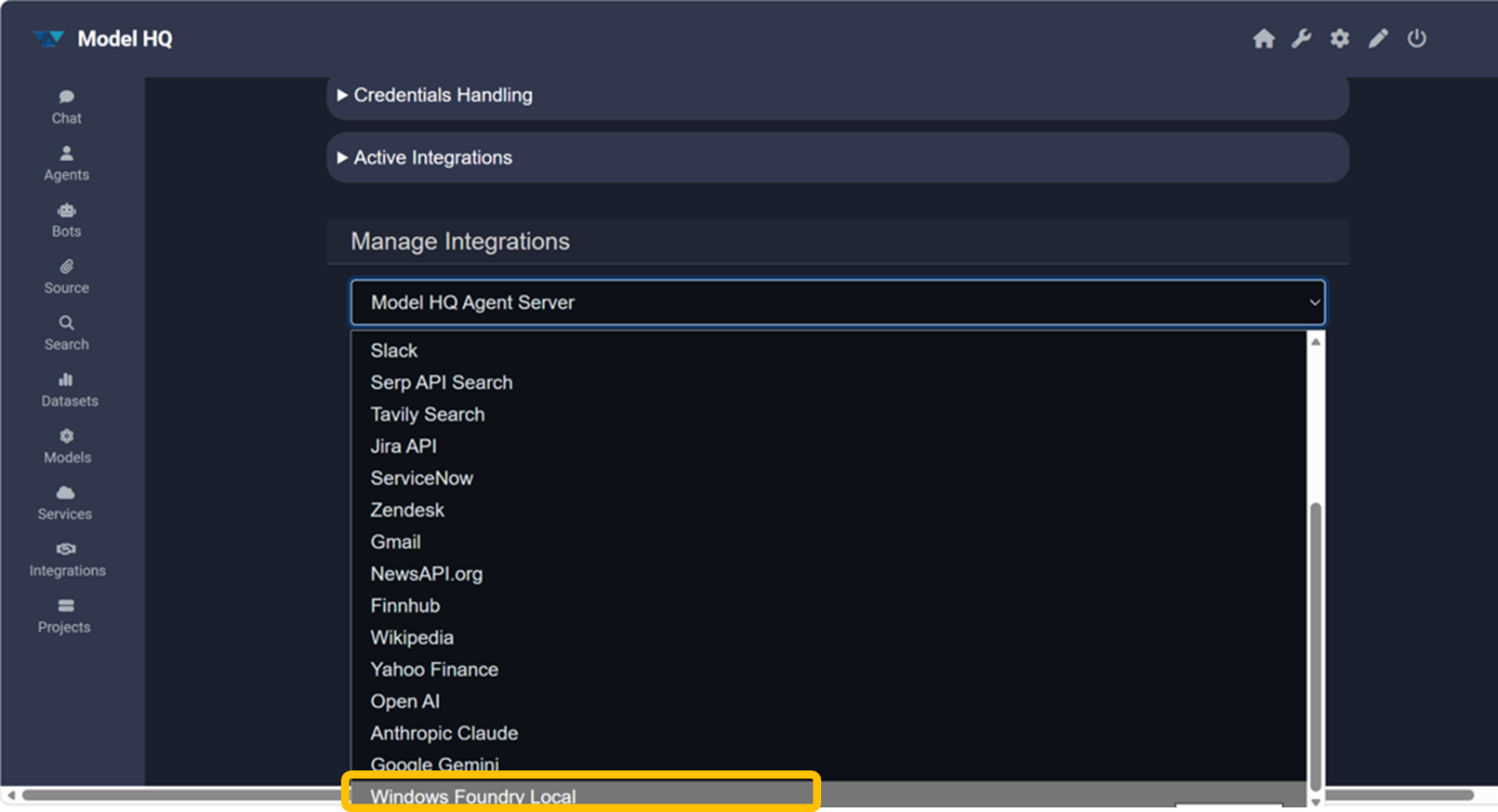

Step 1: Integrate Foundry Local into Model HQ and download a SLM

In just a few clicks, integrate Foundry Local and download the model of your choice through Model HQ.

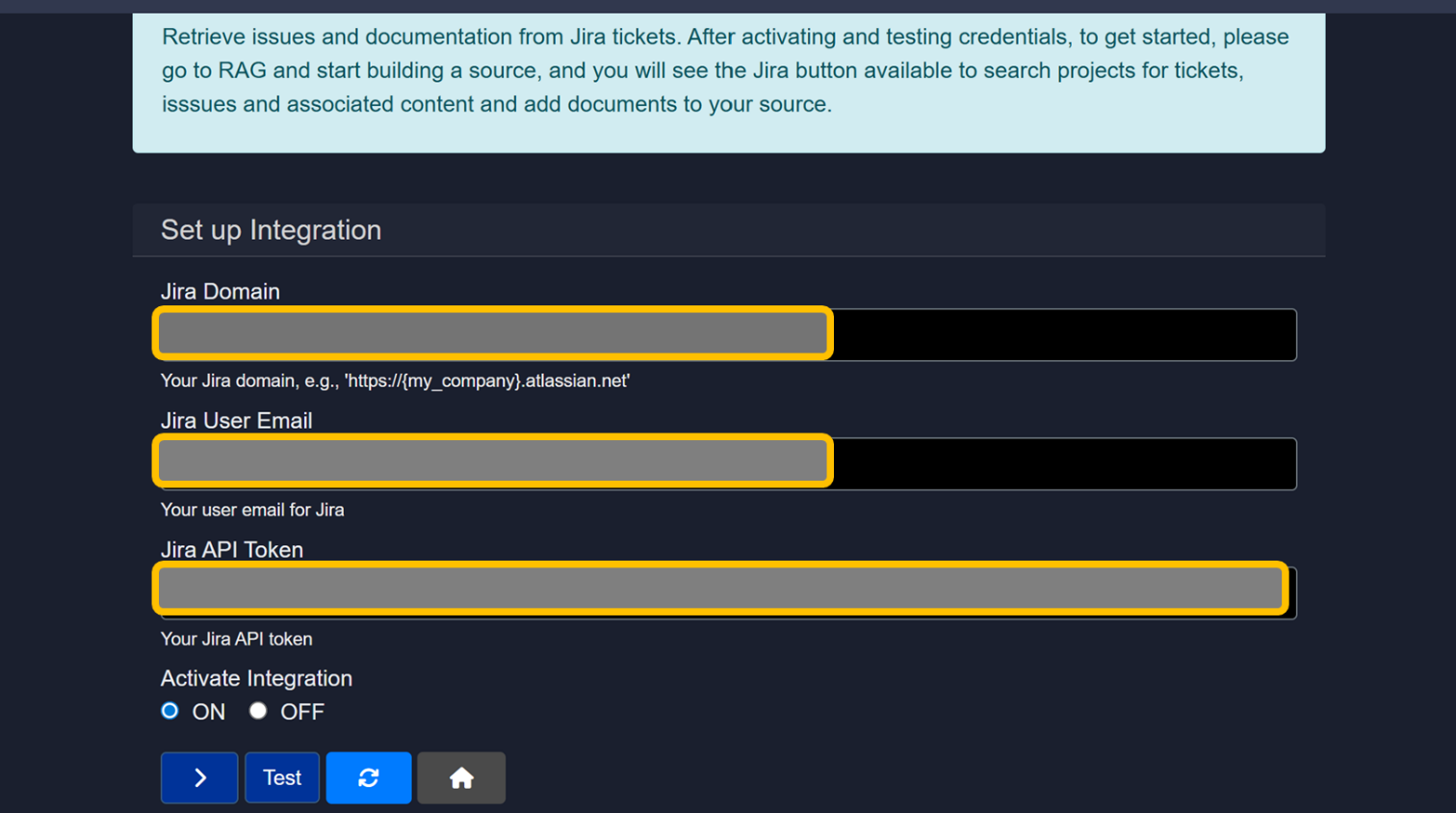

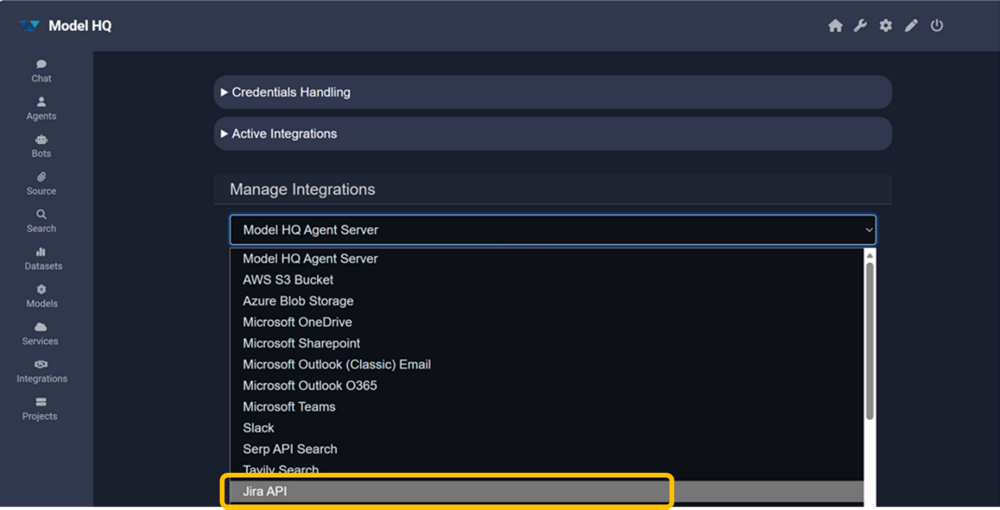

Step 2: Integrate your enterprise JIRA instance

Connecting to your enterprise instance of JIRA is as simple as applying your credentials, in one easy step.

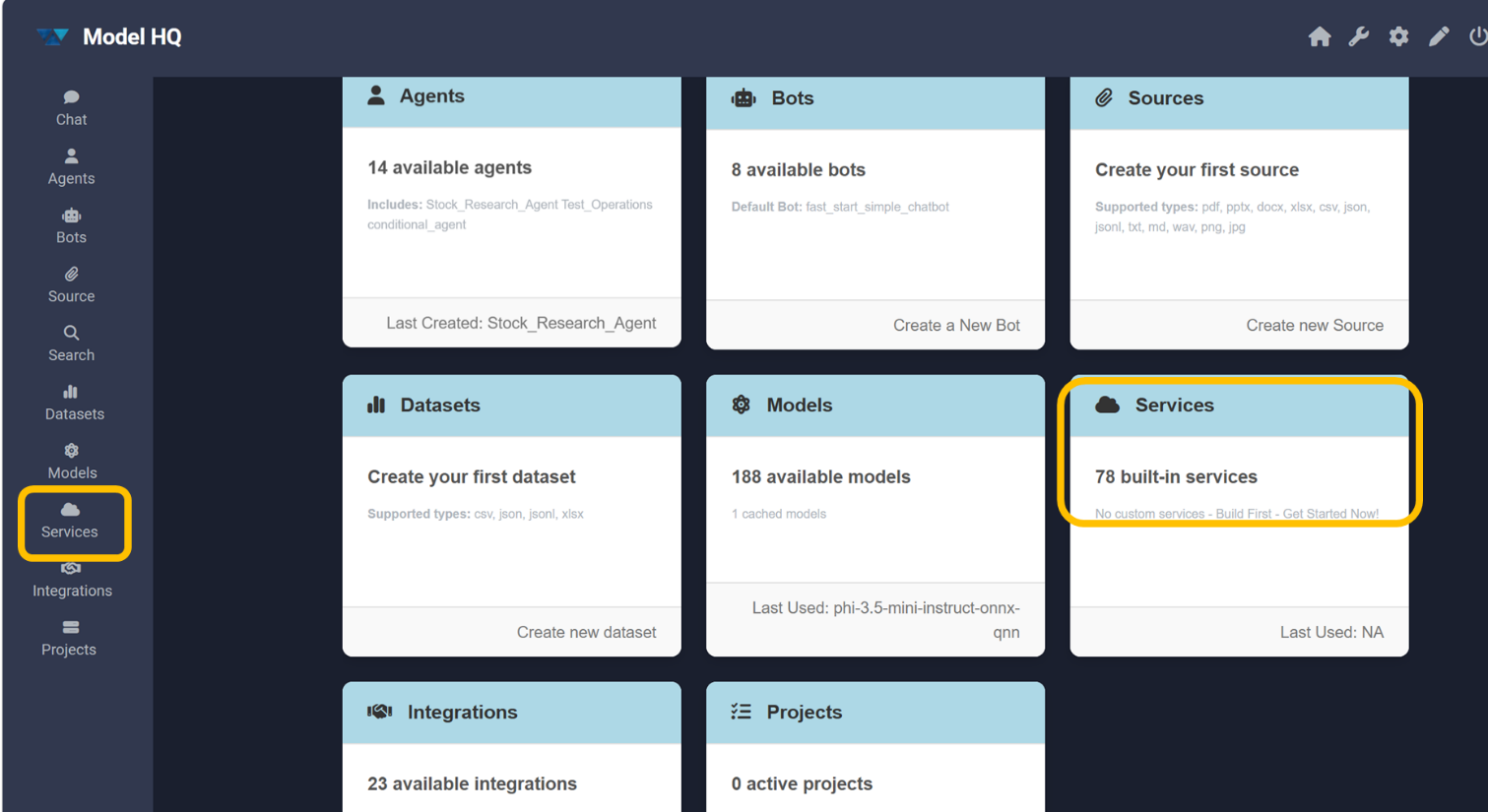

Step 3: Create, edit and test custom services (to later integrate into the agent process)

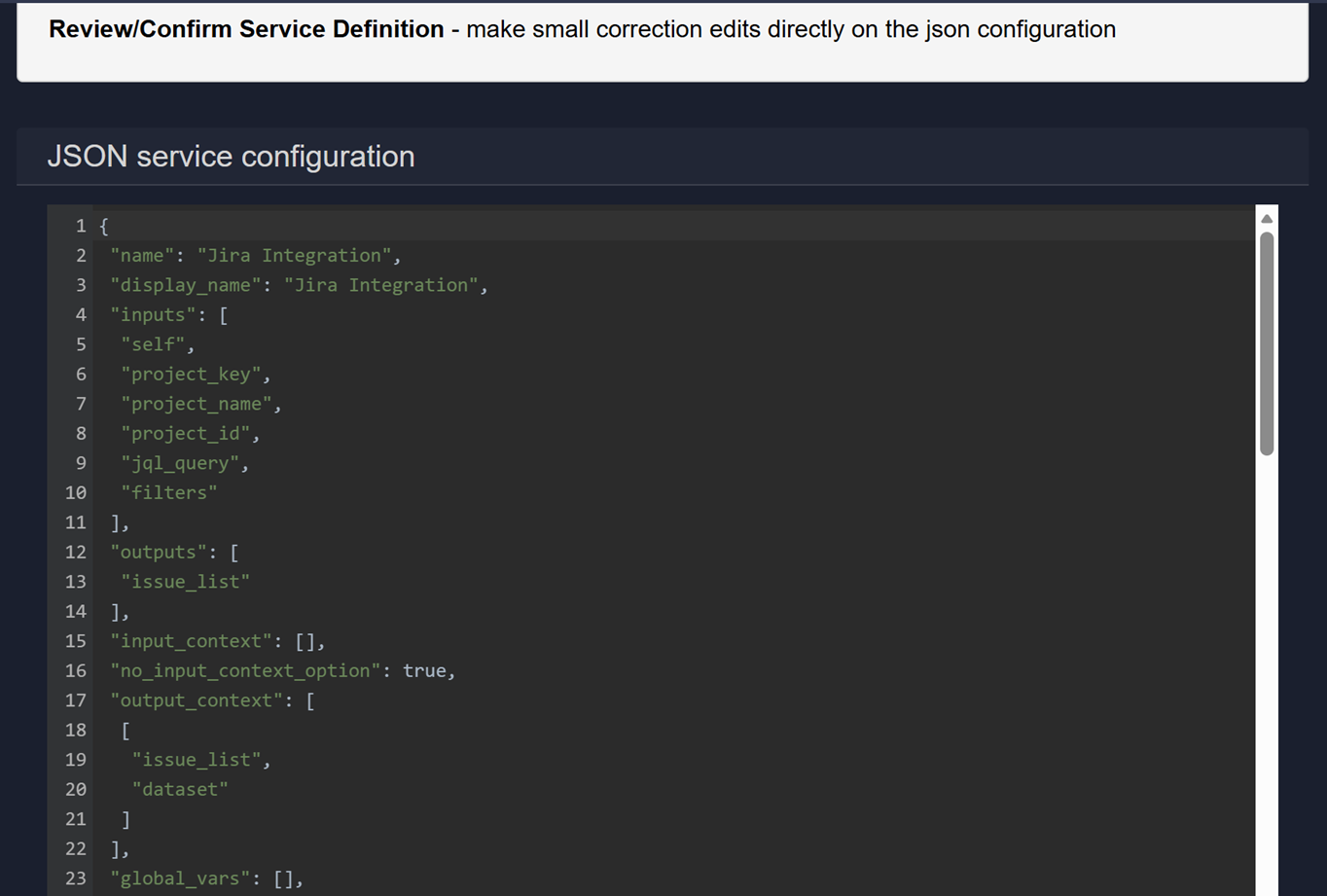

Set up a custom service to connect to the JIRA instance as the knowledge base—simply define the service, link it to a project, choose the output format, and optionally update the JSON configuration.

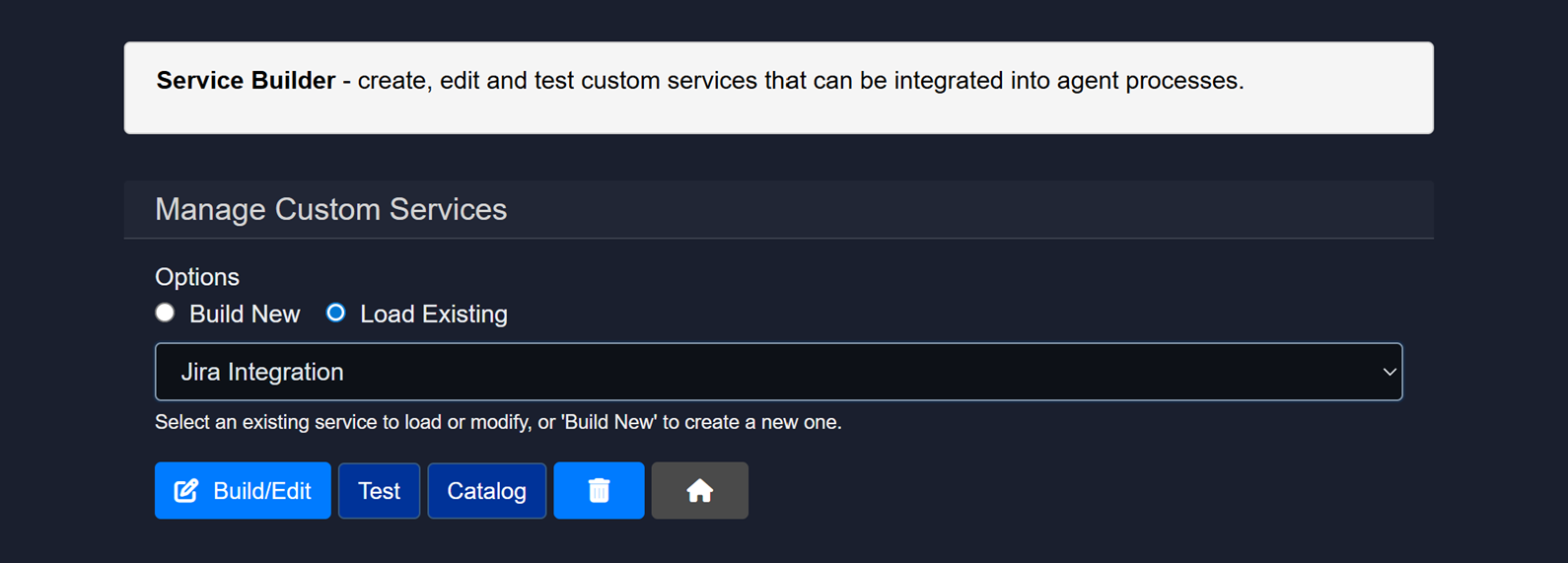

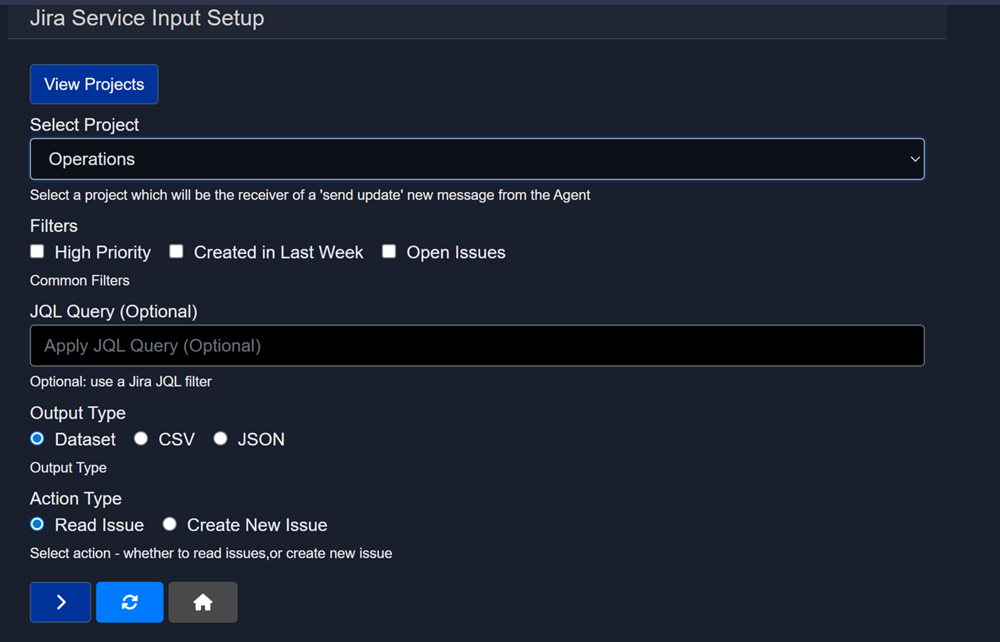

Build new and edit or load an existing service.

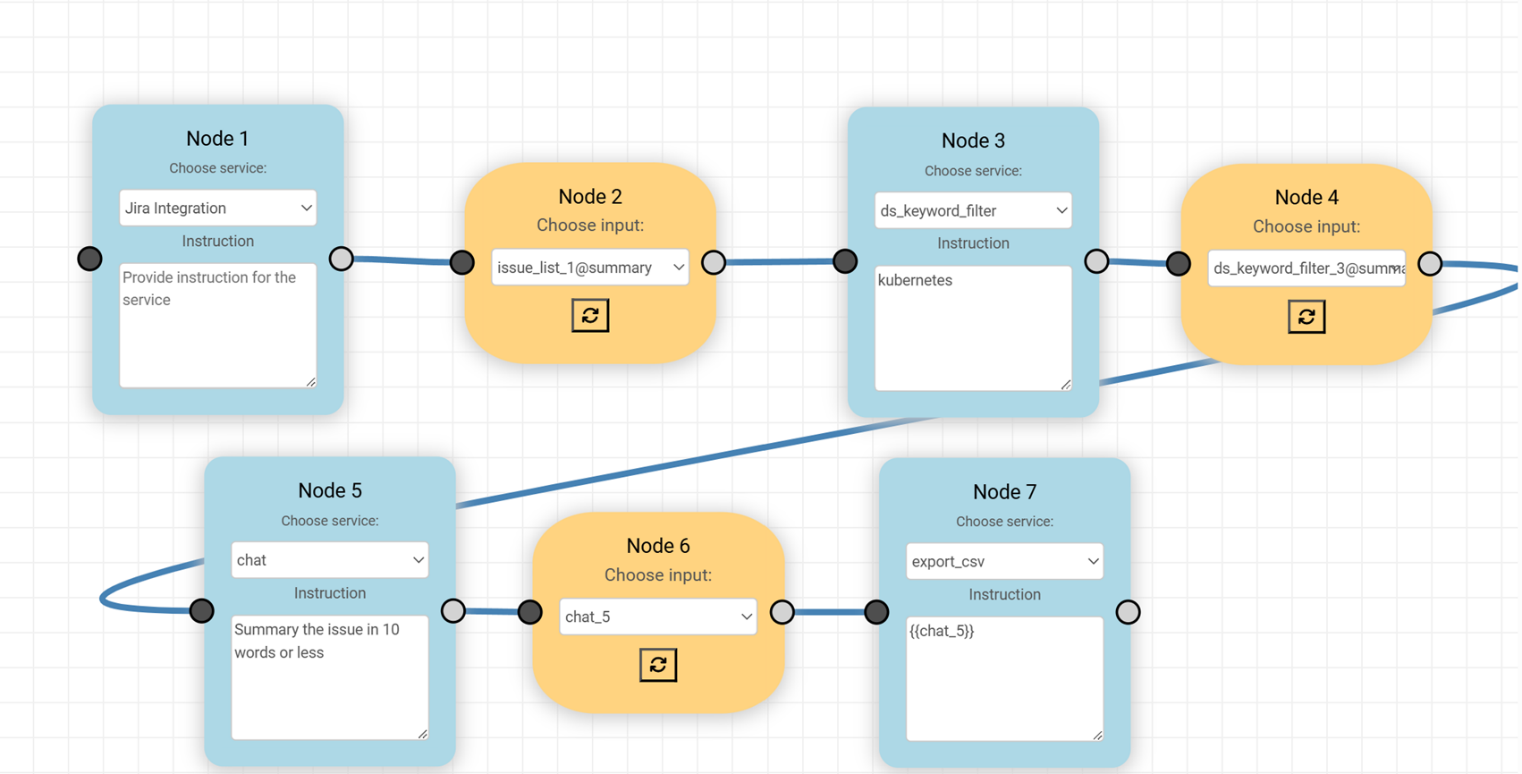

Step 4: Create an agent pipeline

The Model HQ visual UI builder provides an intuitive way to create agentic pipelines—simply drag and drop nodes to connect tasks, configure inputs/outputs, select the model in Agent Global configurations, and your workflow is ready.

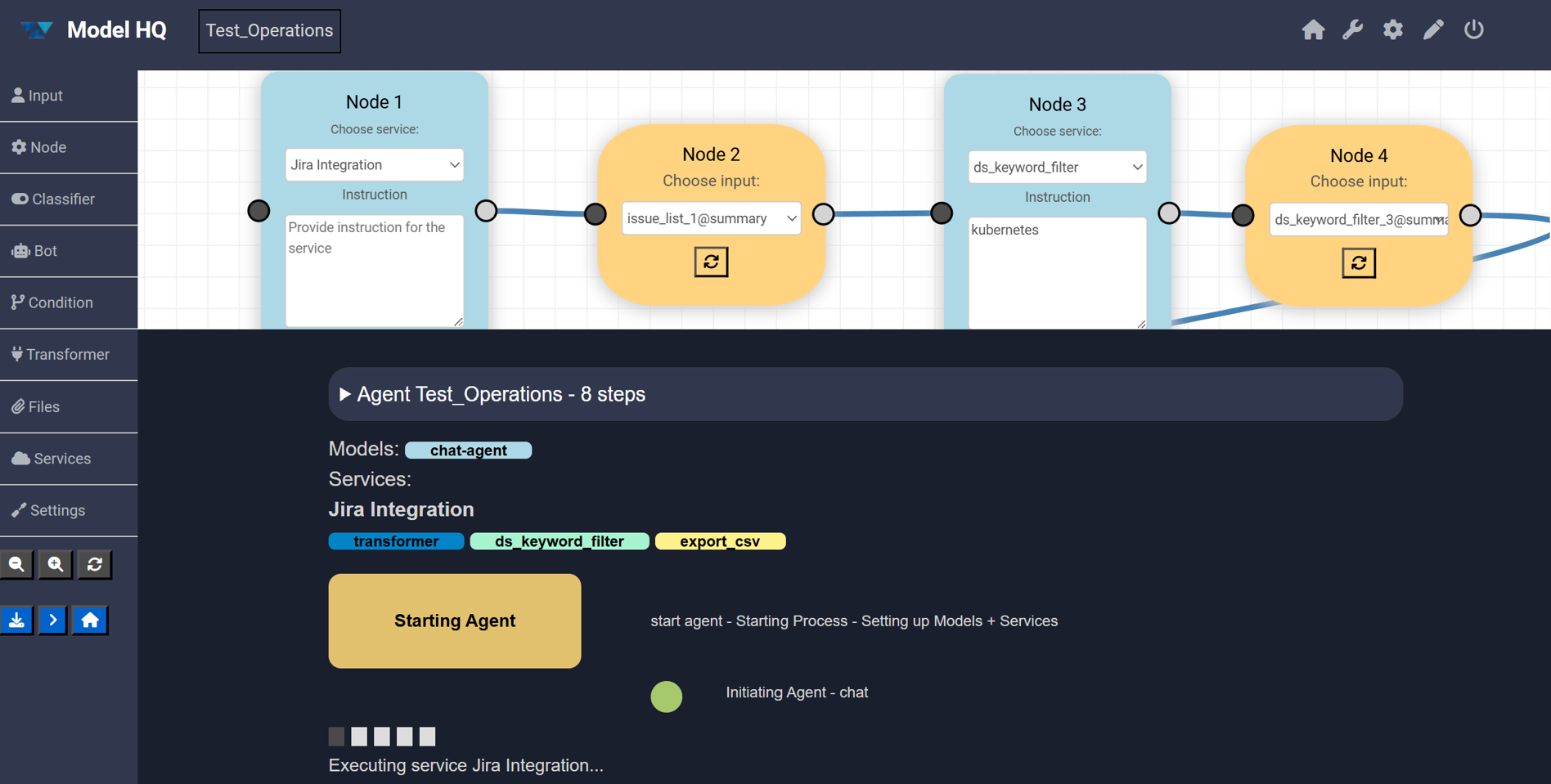

Test pipeline execution.

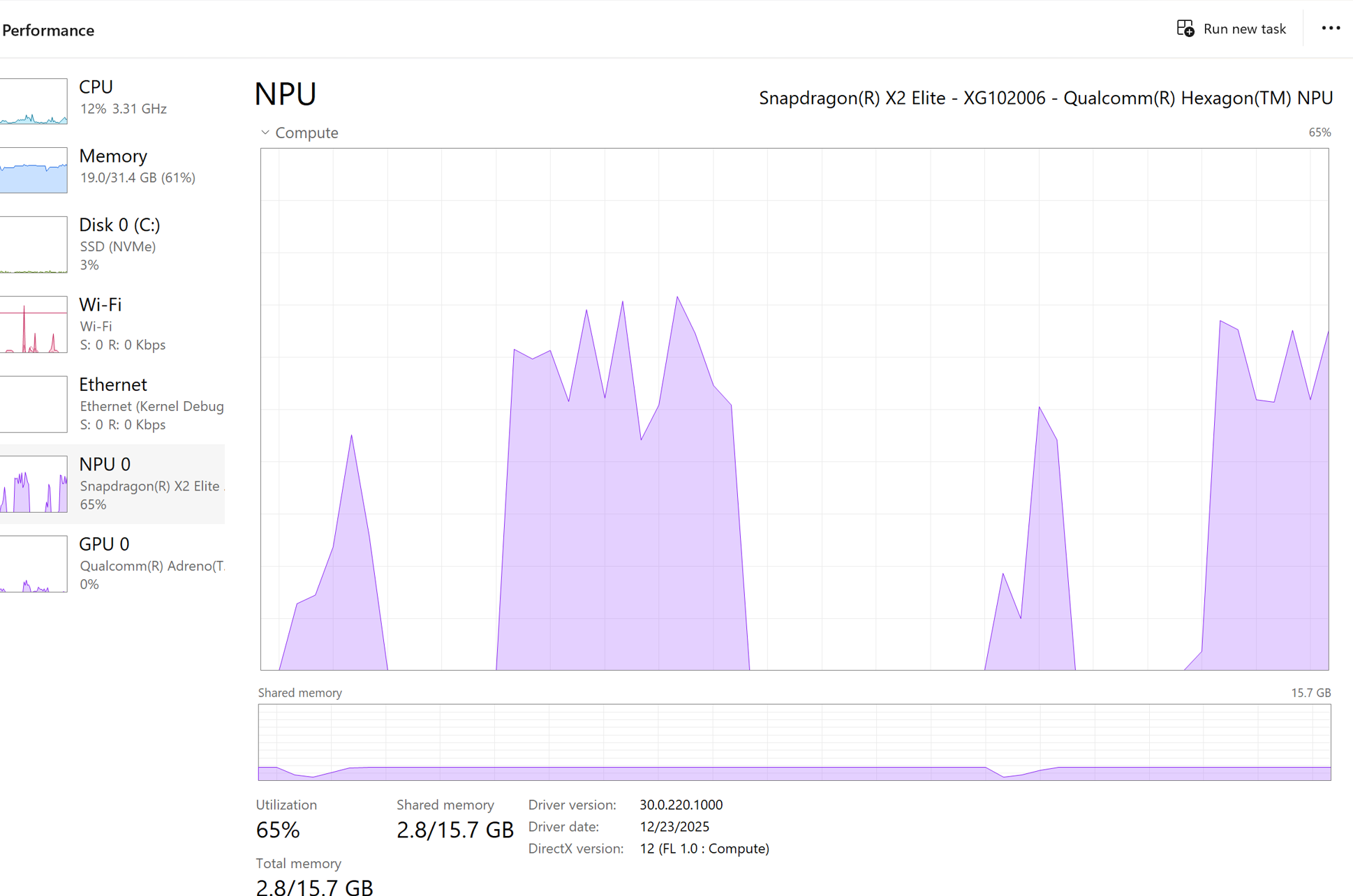

When the pipeline runs, the model is offloaded to the Snapdragon NPU for execution.

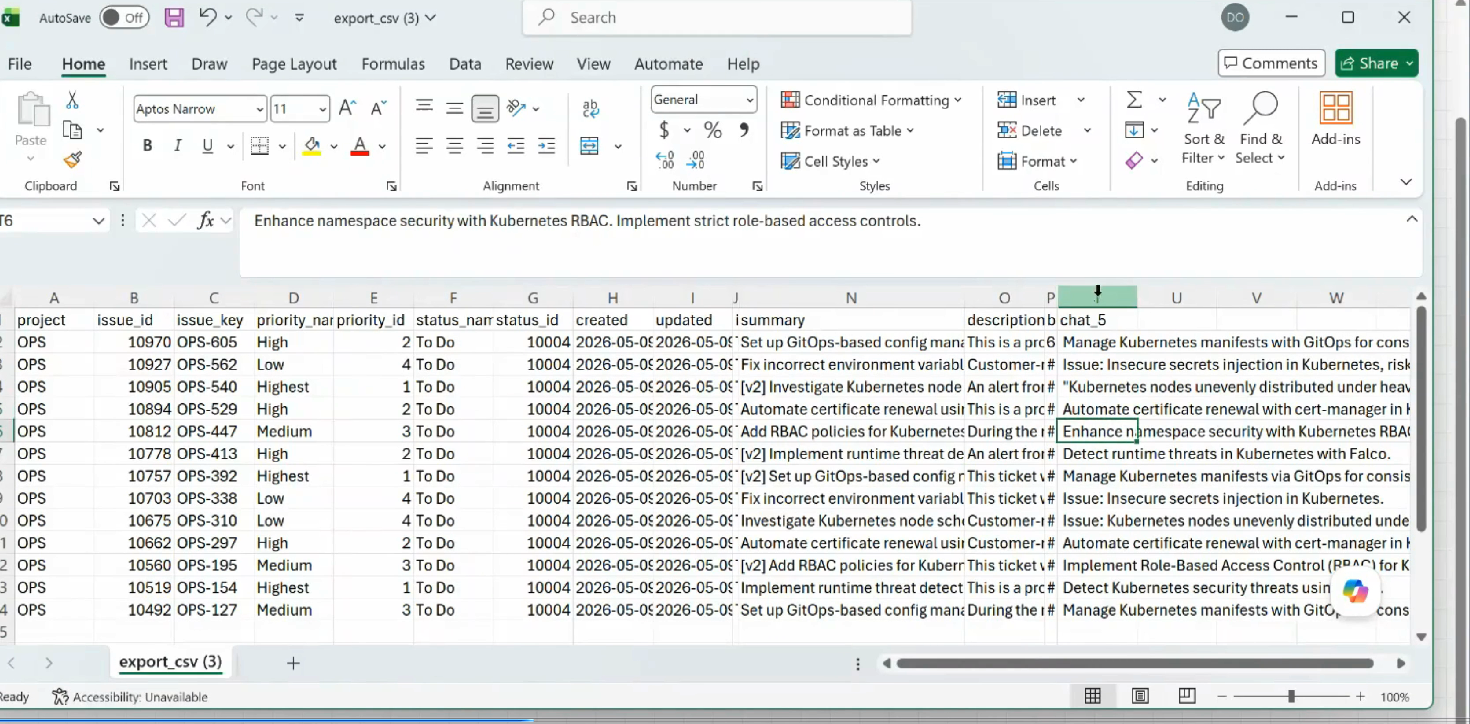

The CSV output file now contains rows processed and filtered for relevance through the agentic pipeline.

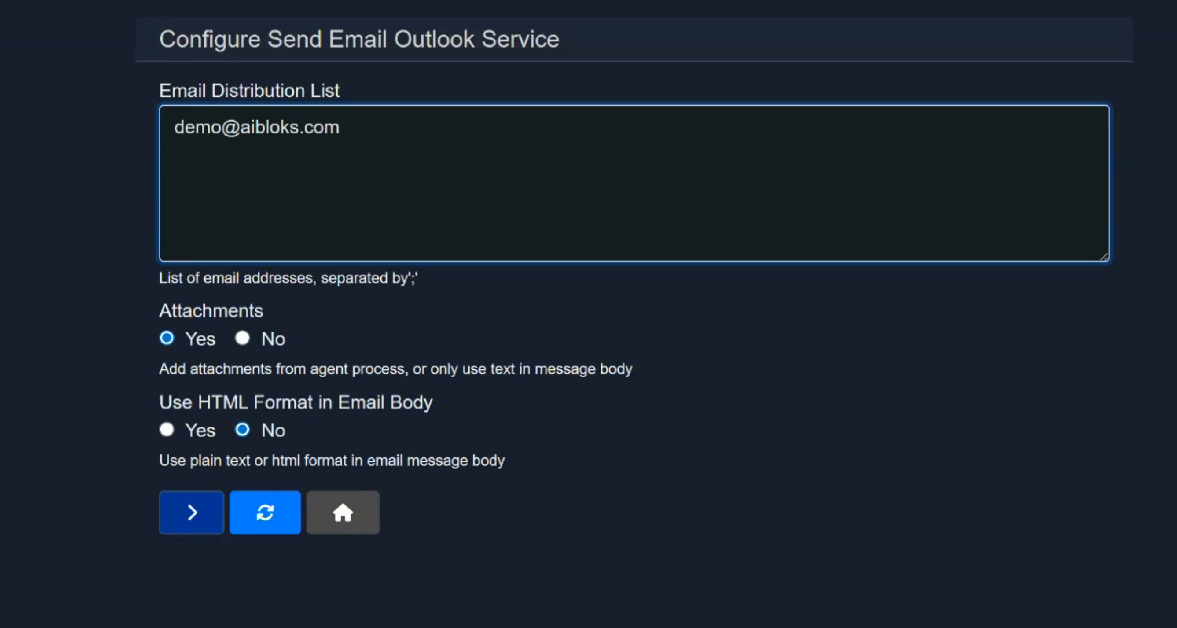

Step 5: Set up email integration and a scheduler

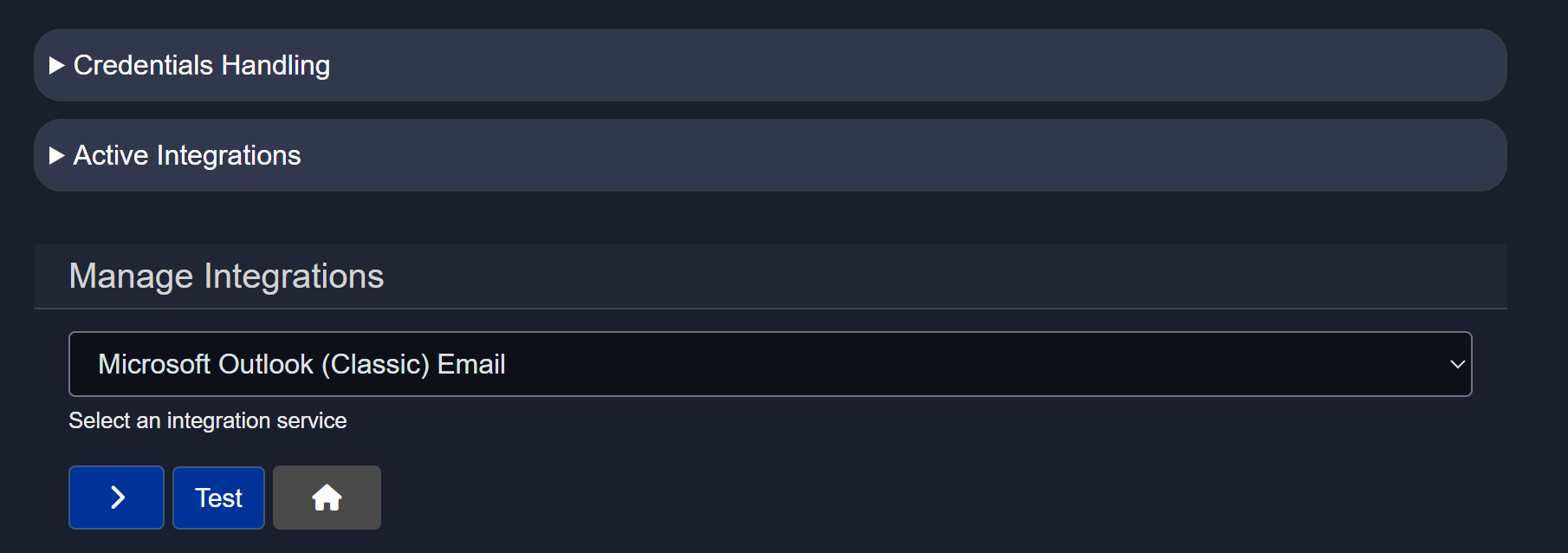

Through Model HQ, setup a new integration service to configure emails.

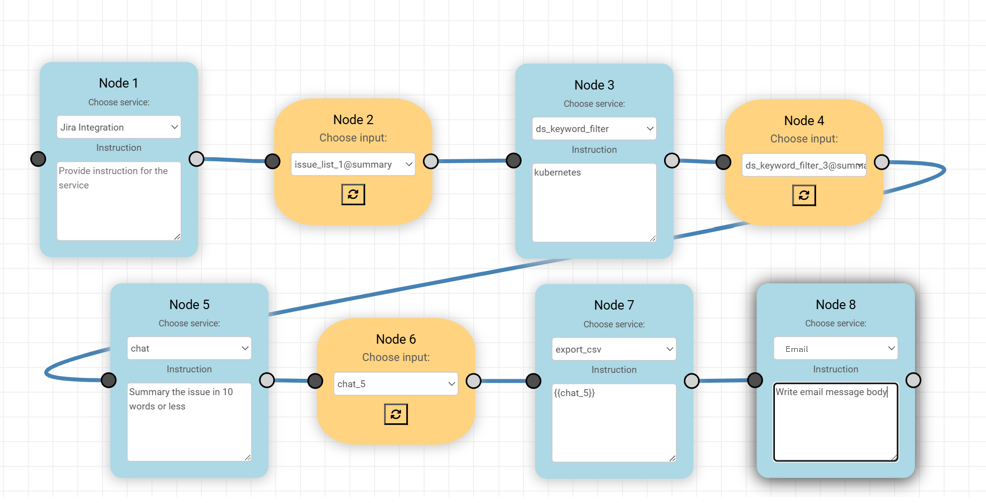

Add a node to the pipeline to route the CSV output to an email distribution list.

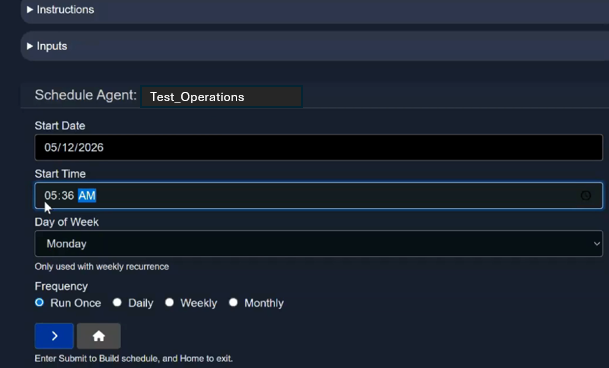

…and setup an automated scheduler to have emails generated at the required cadence.

Benefits:

LLMWare’s Model HQ solution enables enterprises to rapidly integrate Microsoft Foundry Local models into their workflows, providing a seamless foundation for building AI-driven automation. By leveraging a no-code agent platform, organizations can deploy fast, private AI workflows that run entirely on-device, powered by Snapdragon NPU for optimized performance and efficiency with WinML, ONNX runtime and Qualcomm AI Engine Direct SDK  Execution Providers in the backend.

The architecture also supports extensibility into pro-code environments, giving developers the flexibility to customize and scale solutions as business requirements evolve.

Learn more and give it a try!

Windows on Snapdragon Developer Portal

LLMWare.ai
