Improving memory bandwidth with the Tile Memory Heap extension for Vulkan

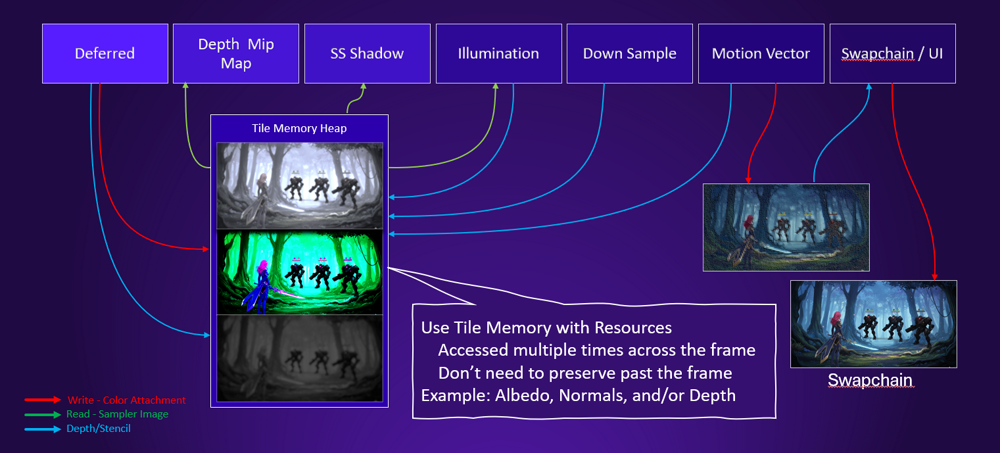

Here the Albedo, Normals, and Depth Resources are first written in the Deferred Pass and then subsequently accessed in the following passes like the shadow and illumination pass. These 3 resources are good candidates for Adreno HPM because they are accessed multiple times in many render and compute passes across the frame.

Subheading – Tile memory properties

Our Adreno HPM is exposed via a new VkMemoryHeap on devices that support VK_QCOM_tile_memory_heap. Tile memory heaps will have the following property set VK_MEMORY_HEAP_TILE_MEMORY_BIT_QCOM. The size of available tile memory can differ between devices and is typically small enough to only fit a small number of resources.

Adreno HPM is transient and the scope of where tile memory is defined is only within a single command buffer submission batch by default. On some devices this boundary extends further to a queue submit which can be checked with the new queueSubmitBoundary physical device property.

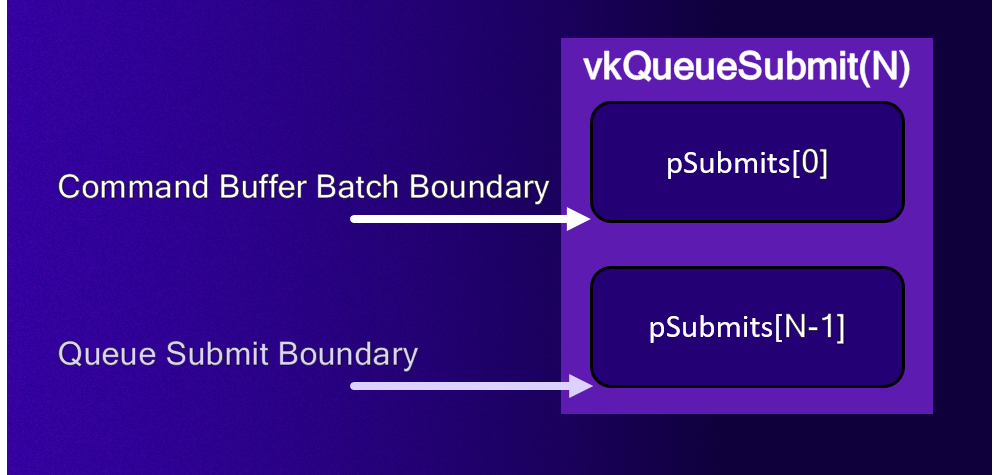

The picture above illustrates a Queue Submit with N # of Command Buffer Batches and where the defined boundary occurs based off if this physical device property is set.

Adreno HPM works best on resources that only have a limited lifetime within a frame of an application. All memory contents within tile memory eventually become undefined when not within the defined tile memory scope.

If any contents from tile memory need to be preserved outside this scope then the application must issue a transfer command from a tile memory resource to a non-tile memory resource in order to keep a copy of the memory contents but this may alter performance so only use it when absolutely needed.

In the deferred rendering example above, all 3 deferred rendering resources are completely re-written every frame and the memory contents are no longer needed once the last memory read of resource is finished.

This means that these resources are good candidates to be used with Adreno HPM as their memory contents can be discarded and don’t need to be saved out to system memory in the frame.

Using Adreno HPM with resources

To bind our Adreno HPM to a resource, the following new usage flags must be added for image and buffer creation respectively VK_IMAGE_USAGE_TILE_MEMORY_BIT_QCOM and VK_BUFFER_USAGE_TILE_MEMORY_BIT_QCOM . When querying memory requirements for these tile memory resources, the new structure VkTileMemoryRequirementsQCOM must be provided to the proper vkGetImageMemoryRequirements2 or vkGetBufferMemoryRequirements2 call.

Our Adreno driver will fill in the tile memory requirements for the given resource if it is supported in our Adreno HPM. If for any reason this resource is not supported in tile memory for whatever reason, like if the resource is too large to fit in the tile memory heap, the ‘size’ and ‘alignment’ fields of the VkTileMemoryRequirementsQCOM structure will be filled in with 0’s when querying memory requirements.

Once the memory requirements have been gathered for the resources, these requirements must be used to bind a VkDeviceMemory object allocated from the tile memory heap to the resource. You can now bind tile memory to a resource like you would an existing VkDeviceMemory object to gain the benefits of our Adreno HPM.

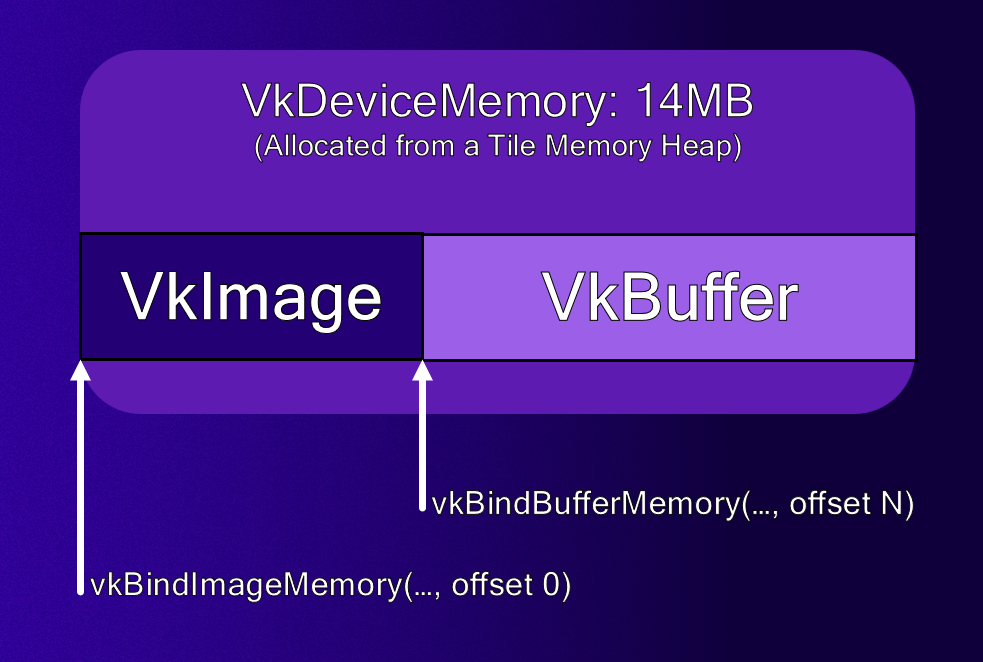

In the picture above, VkImage and VkBuffer are both bound to the same tile memory VkDeviceMemory object. Both resources are able to fit within 14 Megabytes of tile memory simultaneously without any overlap. Overlapping of resources is allowed in tile memory and existing memory aliasing rules apply from the Vulkan spec.

Allocating a VkDeviceMemory object from the tile memory heap will always return a VkDeviceMemory object with an offset of 0 into the tile memory heap. Allocating tile memory does not consume any actual memory from this heap. This means that an application may have different VkDeviceMemory objects allocated out of a tile memory heap that represents different tile memory layouts.

Binding tile memory in command buffers

Binding tile memory to resources is only the first step of using tile memory with this extension. In order to access the tile memory during command execution, tile memory must also be bound to the command buffer at the time of execution.

Binding tile memory to the command buffer allows the implementation to know which portion of tile memory will be reserved by the application. If any amount of tile memory from the heap is unbound, the implementation is free to use any unbound tile memory for other internal uses such as tile-based rendering.

To bind tile memory to a command buffer a new API is provided vkCmdBindTileMemoryQCOM which will bind the provided tile memory VkDeviceMemory object to the command buffer. The bound tile memory object represents a range of tile memory that the application can access and persist across commands. This command can be called with a null pointer in order to bind no tile memory  to the command buffer.

Tile memory is implicitly unbound at the end of a command buffer and must be rebound in the next command buffer if memory contents are expected to persist across command buffers within the tile memory scope.

Note that any VkDeviceMemory being bound to the command buffer must be the same VkDeviceMemory bound to the resources accessed in the executed commands.

Because Tile Memory VkDeviceMemory objects allocated always start at offset 0 into the heap, an application may create as many VkDeviceMemory layouts as they’d like with different resources aliasing different memory locations as needed. Allocating memory from the tile memory heap does not consume any of the total memory.

Tile memory in action

Here is an animation that shows what happens to the tile memory heap as commands get executed. This example shows 2 separate command buffers within a single Command Buffer batch which use the Tile Memory Heap.

While the commands get executed, only the bound tile memory range becomes defined and is reserved for the application. The red indicates undefined memory contents due to unbound tile memory.

Notice that the contents of tile memory get preserved between Command Buffer 0 and Command Buffer 1 even though the tile memory object is implicitly unbound after the last command finishes in Command Buffer 0.

Since Command Buffer 1 binds a separate VkDeviceMemory B before an action command is executed, the memory contents are preserved and can be accessed within Command Buffer 1.

When the last command in Command Buffer 1 completes, all tile memory is discarded and becomes undefined because Command Buffer 1 is the last Command Buffer in the submission batch tile memory scope.

Developer tips:

• Use tile memory with resources that don’t need to preserve memory contents from frame to frame and are accessed across different render and compute passes


• Use memory aliasing to fit multiple resources in the small amount of tile memory available. Memory aliasing can also allow different tile memory layouts to grow and shrink the bound tile memory within the command buffer


• Bind only the range of tile memory that is needed to the command buffer to allow the implementation to use any unbound tile memory for internal optimizations


• Using Vulkan memory allocation libraries like VMA can help with sub allocating resources


• Use Snapdragon Profiler to measure read/write bandwidth changes when using resources in tile memory


• For more details and interactions with other tile QCOM extensions check out the proposal


• Code sample: https://github.com/SnapdragonGameStudios/adreno-gpu-vulkan-code-sample-framework/tree/main/samples/tile_memory
• Validation Layer support in SDK 1.4.341.0


Have questions? Get in touch with our team
