Accelerate your AI apps: Windows ML on Snapdragon X Elite devices

Windows ML APIs for infrastructure management

• Initialize Windows AI infrastructure and download the required IHV specific  Execution Provider (QNN EP for Qualcomm) binaries into the system. winrt::Microsoft::Windows::AI::MachineLearning::Infrastructure infrastructure;
• Download the EPs onto the machine: infrastructure.DownloadPackagesAsync().get();
• Register installed Eps with ORT auto executionProviders = infrastructure.LoadExecutionProvidersAsync().get();

Windows ML APIs for session creation and inference

• Dynamic system selection of Inference Device: LearningModelDeviceKind deviceKind = LearningModelDeviceKind::Default;
• Directed device selection using LearningModelDeviceKind enum

• Set Session Options: LearningModelSessionOptions sessionOptions;
• Create Session: LearningModelSession session = LearningModelSession{…};
• Bind inputs and output resources: LearningModelBinding binding = LearningModelBinding{session};
• Evaluate model: LearningModelEvaluationResult results = session.EvaluateAsync(…).get();

ONNX Runtime APIs for session creation and inference

• Set Session Options: Ort::SessionOptions session_options;
• Allocate input and output Tensors: session.GetInputCount()  session.GetOutputCount()
• Compile Model: Ort::Status compileStatus = Ort::CompileModel(env, compile_options);
• Infer Model: session.Run()

Windows ML packaging and distribution

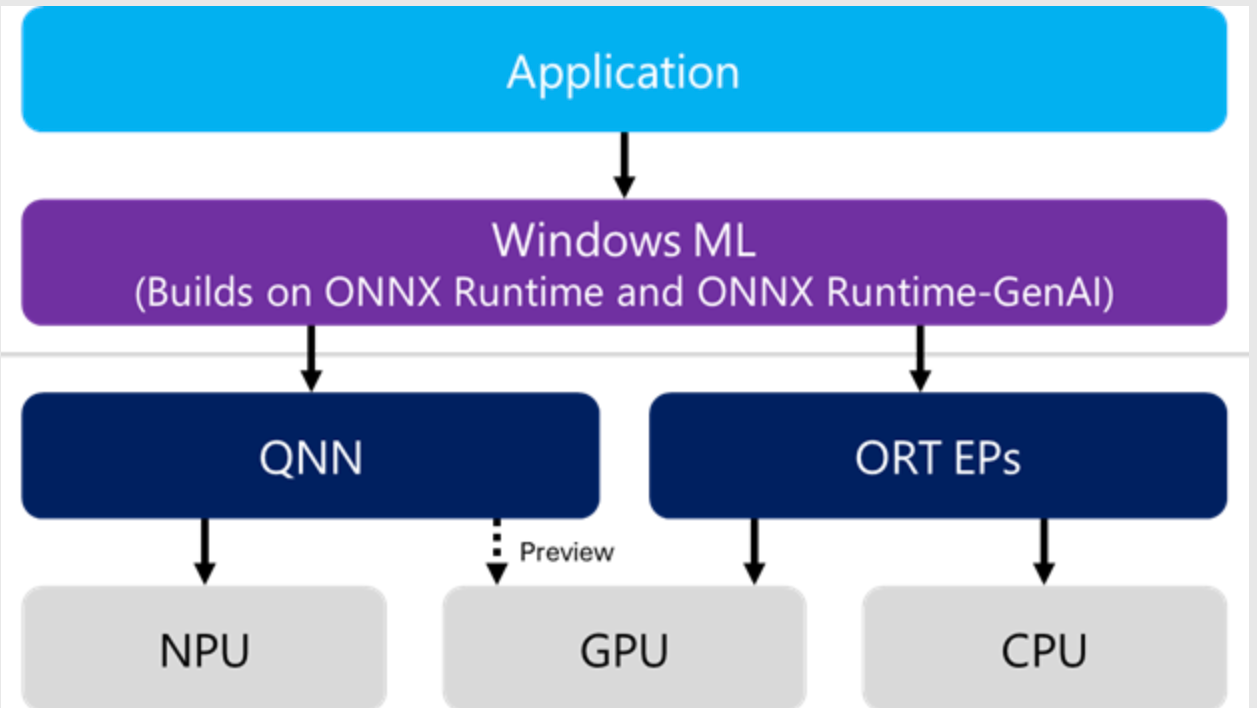

Windows ML strikes a balance between empowering IHVs to innovate and advance quickly with their implementations, while keeping serviceability and compatibility at the forefront. The Windows ML Runtime and IHV Execution Providers are packaged and distributed separately.

• The Windows ML Infrastructure class provides methods to download, configure, and register AI execution providers (EPs) for use with the ONNX Runtime.
• IHV Execution providers (EPs) are packaged as separate MSIX components, for example, Qualcomm QNN EP. This design allows execution providers to be updated independently from the Windows ML Runtime components.

Windows ML general availability extensions to Olive for improved LLM Accuracy and Performance

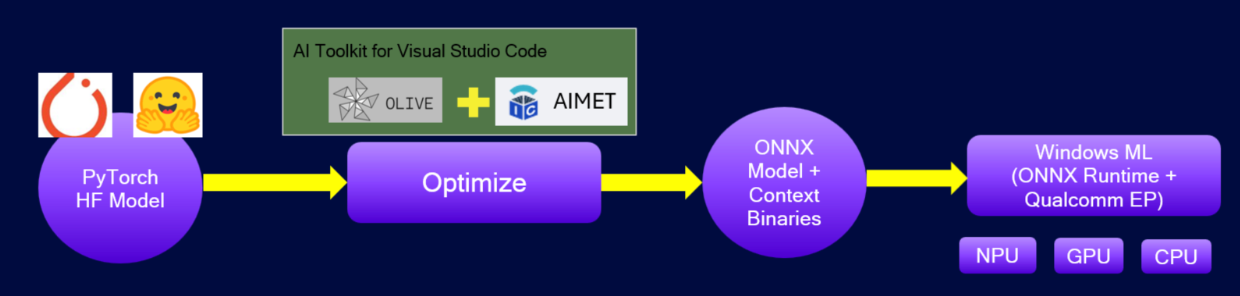

Olive is a high level IHV agnostic framework used to download models from Hugging Face, quantize, optimize for a specific hardware, evaluate, check accuracy and measure performance latency. The ONNX model generated from Olive is optimized for execution on Qualcomm NPU using Windows ML with QNN EP.

Olive provides both a CLI and a python interface with a JSON file as a config input to perform all the necessary graph transformations on the input onnx model. Ex: olive run –config resnet_ptq_qnn_qdq.json

At general availability, Windows ML support for Snapdragon NPU comes with improved accuracy and performance improvements implemented in Olive and ortGenAI for popular LLM models.

With enhancements to the prompt window processing, KV cache population and token generation stages of the LLM pipeline in ONNX Runtime ORT v1.23, models like Phi3.5 provide higher accuracy.

Quantization techniques play a key role in accuracy. GPTQModel quantization and AI Model Efficiency Toolkit (AIMET) quantization has been enabled in Microsoft’s Olive toolchain to improve accuracy of LLMs on Snapdragon NPU.

• GPTQ-Model is a production ready LLM model compression/quantization toolkit with hardware accelerated inference support for both CPU and GPU via Hugging Face Transformers, vLLM, and SGLang. GPTQ has the optimal blend of quality and inference speed you need in a real-world production deployment.


• AIMET LPBQ quantization: AIMET is a software toolkit for quantizing trained ML models. AIMET improves the runtime performance of deep learning models by reducing compute load and memory footprint. Models quantized with AIMET facilitate its deployment on edge devices like mobile phones or laptops by reducing the memory footprint.

Performance improvement: By finetuning the inter-op and intra-op thread management options in Olive, the performance of several key LLMs has been improved within a close margin of native performance.

• Intra-op and inter-op Thread optimization: These parameters control the number of threads used for parallel execution of operations within a single operation (intra-op) and between different operations (inter-op).

The table below lists the Olive recipes of Non GenAI and GenAI models that are included in Windows ML Certification Requirements. Developers can use these recipes to deploy these models optimized for Snapdragon NPUs.

Model Name	Hugging Face Link	Qualcomm Olive Recipe (NPU)
Model Card for CLIP ViT-B/32 - LAION-2B	laion/CLIP-ViT-B-32-laion2B-s34B-  b79K · Hugging Face	Olive/examples/vit at rel-0.9.2 · microsoft/Olive
OpenAI Model Card: CLIP 16x16	openai/clip-vit-base-patch16 · Hugging Face	Olive/examples/clip at rel-0.9.2 · microsoft/Olive
OpenAI Model Card: CLIP 32x32	openai/clip-vit-base-patch32 · Hugging Face	Olive/examples/clip at rel-0.9.2 · microsoft/Olive
Vision Transformer (base-sized model)	google/vit-base-patch16-224 · Hugging Face	Olive/examples/vit at rel-0.9.2 · microsoft/Olive
BERT multilingual base model (cased)	google-bert/bert-base-multilingual-cased · Hugging Face	Olive/examples/bert at rel-0.9.2 · microsoft/Olive
INT8 BERT base uncased finetuned MRPC	Intel/bert-base-uncased-mrpc-int8-static-inc · Hugging Face	Olive/examples/bert at rel-0.9.2 · microsoft/Olive
DeepSeek R1 Distill	https://huggingface.co/deepseek-ai/DeepSeek-R1-Distill-Qwen-1.5B	Olive/examples/deepseek at rel-0.9.2 · microsoft/Olive
Phi 3.5 mini instruct	https://huggingface.co/microsoft/Phi-3.5-mini-instruct	Olive/examples/phi3_5 at rel-0.9.2 · microsoft/Olive
Llama-3.2-1B-Instruct	https://huggingface.co/meta-llama/Llama-3.2-1B-Instruct	Olive/examples/llama3 at rel-0.9.2 · microsoft/Olive
Qwen 2.5 1.5B	Qwen/Qwen2.5-1.5B-Instruct · Hugging Face	Olive/examples/qwen2_5 at rel-0.9.2 · microsoft/Olive

Olive high level developer workflow

1.      Convert a HuggingFace model to ONNX

2.      Convert dynamic shape inputs to fixed dimension

3.      Quantize the model with OnnxStaticQuantizer (OnnxStaticQuantization).

4.      Generate ONNX model with embedded EP context (EPContextBinaryGenerator)

5.      Split a bigger model into smaller parts (CaptureSplitInfo/SplitModel)

6.      Graph transformation available in Olive graph surgeries (GraphSurgeries)

A combination of the following quantization techniques and graph surgeries were used to optimize the performance on Snapdragon:

1.      MatmulAddFusion: Fuses Matmul & Add op to GeMM operator, optimized for QNN

2.      ReplaceAttentionMask: Clips large negative attention mask values to -1e4 for quantization efficiency

3.      RemoveRopeMultiCache: Eliminates redundant RoPE computations across KV cache

4.      AttentionMaskToSequenceLengths: To control the context length at runtime

5.      SimplifiedLayerNormToL2Norm: Converts basic layer norm op to more efficient L2 norm

6.      Weight Rotation: Reduces outliers from weights and hidden states to enhance quantization efficiency.

7.      GPTQ: 4-bit per-channel symmetric quantization, reduces transformer layer size while preserving accuracy.

8.      ONNX Graph Capture: Exports the model to ONNX for further optimizations.

9.      4-bit Block wise quantization to the embedding layer & LM head.

10. AIMET quantization has been added in Olive to help achieve Native scaling.

Foundry Local: expanding AI capabilities

Foundry Local provides high-performance built-in models and supports custom models optimized for silicon performance. Combined with Windows ML and Azure AI Foundry, developers can integrate AI into Windows apps and services with minimal friction, while taking advantage of Qualcomm Technologies’ hardware acceleration.

For general availability, Qualcomm Technologies is actively working with Microsoft on enabling popular models on Windows AI Foundry targeted for Windows ML on Snapdragon NPU with more models coming in the near future.

Foundry Local CLI

Foundry Local Command Line Interface (CLI) provides simple to use interfaces to manage models hosted on the foundry.

View all available commands with the help option: foundry –help

The CLI organizes commands into three main categories:

• Model: Commands for managing and running AI models
• Service: Commands for controlling the Foundry Local service
• Cache: Commands for managing your local model storage

For a comprehensive guide, refer to Foundry Local.

Windows AI Foundry with Agentic AI on Snapdragon NPU

As part of the Windows ML general availability readiness, Agentic AI applications using Windows AI Foundry have been validated on the Snapdragon NPU. Check out this tutorial from Microsoft  for developing a translation app with AI Foundry and Langchain.  This application has been validated using the deepseek-r1-distill-qwen-7b-qnn-npu model on Snapdragon NPU.

What’s next?

Beyond Windows ML general availability, Qualcomm Technologies is actively working on expanding the scope of Windows ML on Snapdragon NPU:

• Expanding LLMs model coverage on Windows AI Foundry
• Enable ISV applications on Windows ML
• Improve performance and accuracy of LLMs for current and future architectures
