Steer Clear

Created by
Jiacheng Liu, Adam Abadilla, Sophia Chen, Eddie Tapia
Oct 23, 2017

Skill LevelArea of FocusOperating System
IntermediateComputer Vision,Embedded, Healthcare, IoT, Sensors, Smart CitiesLinux

The goal of Steer Clear is to help reduce the number of drivers that fall asleep at the wheel. Using computer vision and Eye Aspect Ratio (E.A.R) metrics to detect eye blinking, we can determine when the driver is drowsy and wake the driver through a combination of audio and tactile alerts. This computer vision technology has the potential to revolutionize the automotive industry, and it’s all thanks to the power of the DragonBoard™ 410c.

Objective

To help reduce traffic accidents and improve vehicle safety.

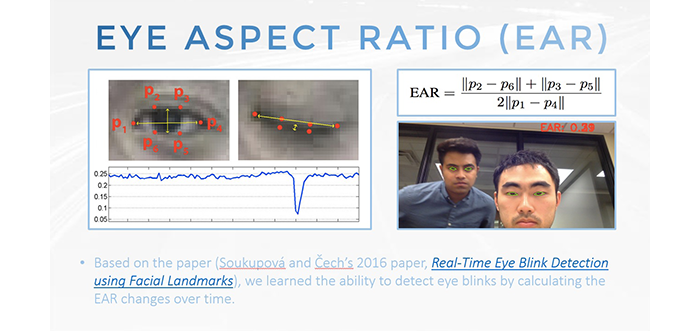

Detecting Drowsiness with the DragonBoard™ 410c

“Detecting

Build / Assembly Instructions

Materials Required / Parts List / Tools

Source Code / Source Examples / Application Executable

Additional Resources

Build / Assembly

  • Install the latest version of Debian Linux on DragonBoard
  • Update the Dragonboard, Install dependencies and OpenCV on DragonBoard

$ sudo apt-get update
$ sudo apt-get upgrade -y
$ sudo apt-get dist-upgrade -u -y
$ sudo apt-get clean
$ sudo apt-get autoremove
$ sudo apt-get install -y python3-pip
$ sudo apt-get install -y python3-dev python3-tk python3-numpy
$ sudo apt-get install -y python3-scipy
$ sudo apt-get install -y python-opencv
$ sudo apt-get install -y libopencv-dev
  • Download the source code from the Github Repository
  • Run the detect_drowsiness.py script from the terminal window
    • $ python detect_drowsiness.py

    Attachments:

    Attachment Size
    PDF icon steerclear.pdf 709.24 KB

    Opinions expressed in the content posted here are the personal opinions of the original authors, and do not necessarily reflect those of Qualcomm Incorporated or its subsidiaries ("Qualcomm"). The content is provided for informational purposes only and is not meant to be an endorsement or representation by Qualcomm or any other party. This site may also provide links or references to non-Qualcomm sites and resources. Qualcomm makes no representations, warranties, or other commitments whatsoever about any non-Qualcomm sites or third-party resources that may be referenced, accessible from, or linked to this site.

    Project Authors
    Jiacheng Liu, Adam Abadilla, Sophia Chen, Eddie Tapia
    Interns, Qualcomm Technologies, Inc.
