MDM9206 with Pressure Detector

gagentMain---->user_init---->led_init---->tx_timer_create---->userTimerCB

demo-Smart-Pressure-detector/main/main.c

  void gagentMain( void )
  {
      getFreeHeap();
      user_init();
  }

void user_init(void)
  {
      int32 ret = -1;

      gizLog(LOG_INFO,"Sensor initialization ...\n");
  	led_init();							//led init
      txm_module_object_allocate(&userTimer, sizeof(TX_TIMER));
      ret = tx_timer_create(userTimer, "userTimer", userTimerCB, NULL, 1,
                           20, TX_AUTO_ACTIVATE);
      if(ret != TX_SUCCESS)
      {
          gizLog(LOG_WARNING,"Failed to create UserTimer.\n");
      }
  }

  void led_init()
  {
  	   gizLog(LOG_INFO,"in led init...\n");
  	   led_gpio_config();
  	   led_on_off(false,led_green);		//init status is off
  }

  demo-Smart-Pressure-detector/driver/gpio.c

  void led_on_off(bool on, uint8_t pin_gpio)
  {

  	if (on)
  	{
  	qapi_TLMM_Drive_Gpio(gpio_id_tbl[pin_gpio], gpio_map_tbl[pin_gpio].gpio_id, QAPI_GPIO_LOW_VALUE_E);
  	}
  	else
  	{
  	qapi_TLMM_Drive_Gpio(gpio_id_tbl[pin_gpio], gpio_map_tbl[pin_gpio].gpio_id, QAPI_GPIO_HIGH_VALUE_E);
  	}
  }


  void ICACHE_FLASH_ATTR userTimerCB(void)
  {
  	gizLog(LOG_INFO,"in userTimerCB.....\n");
  	int16_t quality;

  	quality = fsr402_pressure_adc_read();	  //get quality value.

  	if(quality >= 1000)
  	{
  		led_on_off(true,led_green);
  		qapi_Timer_Sleep(100, QAPI_TIMER_UNIT_MSEC, true);
  		led_on_off(false, led_green);
  	}
  else if(quality == -1)
  {
  		led_on_off(true,led_red);
  		qapi_Timer_Sleep(100, QAPI_TIMER_UNIT_MSEC, true);
  		led_on_off(false, led_red);
  	}

  }

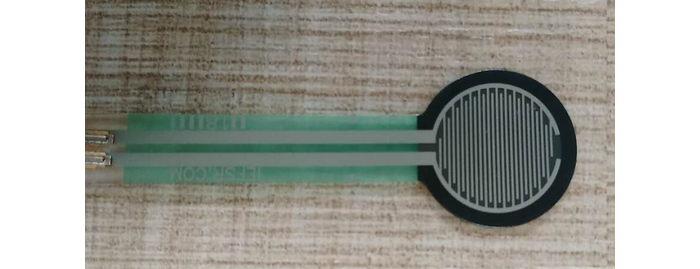

  demo-Smart-Pressure-detector/driver/adc/fsr402_pressure_adc.c

  //used to get quality value

  int fsr402_pressure_adc_read(void)
  {
      int ret = -1;
      int32_t m_voltage = 0;
      int16_t quilty = 0;
      qapi_ADC_Read_Result_t result;
  	qapi_Status_t status = QAPI_ERROR;

      const char *channel_name_adc0 = ADC_INPUT_ADC0;

      qapi_Adc_Input_Properties_Type_t Properties_ADC0;


  /*get an adc handle*/

  status = adc_open_handle();

      if(status != QAPI_OK)
      {
          gizLog(LOG_ERROR,"Get ADC Handle ERROR!\n");
          return status;
      }

  /*get the adc channel configuration*/

      status = adc_get_properties(channel_name_adc0, &Properties_ADC0);

  if(status != QAPI_OK)
      {
          gizLog(LOG_ERROR,"Get ADC channel-%s Configuration ERROR!\n", channel_name_adc0);
          return status;
      }

  /*read channel ADC0*/

  memset(&result, 0, sizeof(result));

      status = qapi_ADC_Read_Channel(adc_handle,  &Properties_ADC0, &result);
      if(QAPI_OK == status)
      {
          if(ADC_RESULT_VALID == result.eStatus)
          {
             m_voltage = result.nMicrovolts /1000;

             quilty = to_quality(m_voltage);
             if(quilty > 0)
             {
                 gizLog(LOG_INFO,"Input %s  Voltage: %d mV  about %d g\n", channel_name_adc0, m_voltage, quilty);
             }
             else if (quilty == 0)
             {
                 gizLog(LOG_INFO,"no press.\n");
             }
             else
             {
                 gizLog(LOG_INFO,"Out of range!\n");
             }
          }
      }

  status = qapi_ADC_Close(adc_handle, false);

      if(QAPI_OK != status)
      {
          gizLog(LOG_ERROR,"Free ADC Handle ERROR!\n");
  }

      return quilty;
  }

  qapi_Status_t adc_open_handle(void)
  {
  	qapi_Status_t status = QAPI_ERROR;

  status = qapi_ADC_Open(&adc_handle, 0);

      if (QAPI_OK != status)
      {
          gizLog(LOG_ERROR, "open adc error!\n");
  }

      return status;
  }

  qapi_Status_t adc_get_properties(const char *Channel_Name_Ptr,
  	qapi_Adc_Input_Properties_Type_t *Properties_Ptr)
  {
  qapi_Status_t status = QAPI_ERROR;

      uint32_t Channel_Name_Size = strlen(Channel_Name_Ptr) + 1;

  status = qapi_ADC_Get_Input_Properties(adc_handle, Channel_Name_Ptr, Channel_Name_Size, Properties_Ptr);

      if (QAPI_OK != status)
      {
  		gizLog(LOG_ERROR, "ADC Get Channel-%s Properties ERROR!\n", Channel_Name_Ptr);
  }

      return status;
  }

  //find quality from an arry based on voltage.

  int16_t to_quality(int32 m_voltage)
  {
      uint8_t i =0;
      int16_t quilty = 0;

      for(i = 0; i < V_TO_Q_SIZE; i++)
      {
          if(m_voltage <= voltage_to_quality[i].voltage)
          {
              quilty = voltage_to_quality[i].quality;
              return quilty;
          }
          i++;
      }

      if(i >= V_TO_Q_SIZE)
          return -1;
  }
