Inception V3 on Qualcomm Robotics RB3 DSP

Feb 27, 2020

Skill Level	Area of Focus	Operating System	Software Tools	Platform/Hardware
Intermediate	Computer Vision, Robotics	Linux	Hexagon SDK	Robotics RB3 Robotics Dev Kit

This project is designed to show how you can use the Qualcomm® Robotics RB3 development kit, specifically using the Qualcomm® Hexagon™ DSP with Hexagon Vector extensions (HVX), coupled with Hexagon DSP SDK to achieve high speed and high performance on device Machine Learning.

Objective

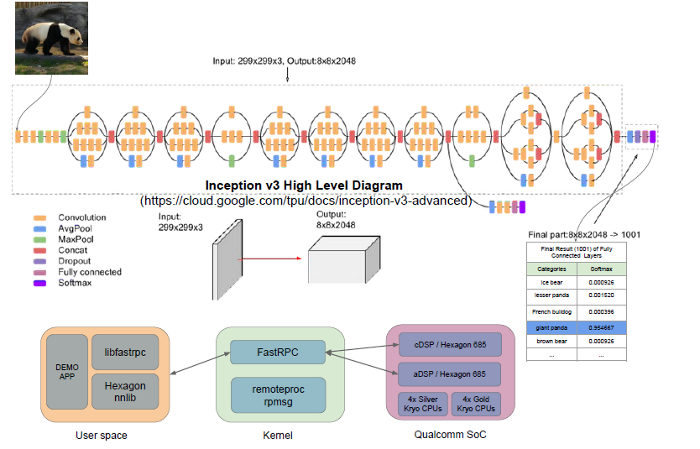

The idea for this project is to use Hexagon DSP in combination with Hexagon SDK to build an optimized multimedia app, while overcoming development hurdles such as lack of battery and insufficient processing power. Additionally, the goal was to build a compelling Image Classification app to showcase on-device Machine Learning, with the ability to offload high computational burdens from the CPU to a heterogeneous computing environment like DSP.

Materials Required / Parts List / Tools

Qualcomm Robotics RB3 Development Kit
Camera

Source Code / Source Examples / Application Executable

Source Code for Image Classification

Additional Resources

Build / Assembly Instructions

Building the Image Classification application is done in 2 parts.

The first part involves generating Hexagon compatible shared libraries and Inception V3 frozen graph and pushing them to Target robotics development kit.

The second part involves compiling the shared libraries and running the application using OpenCV.

Step 1: Setting up the Host Linux Machine

Build Hexagon NN DSP library for the Qualcomm Robotics RB3 CDSP

Download the Hexagon SDK version 3.4.2 for Linux from here.

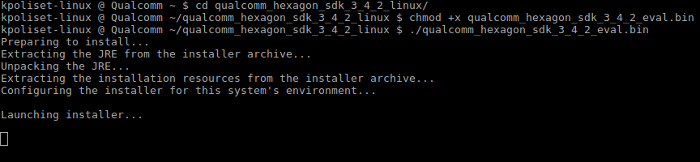

Unzip the file and install the SDK using the following commands


 $ cd qualcomm_hexagon_sdk_3_4_2_linux/
 $ chmod +x qualcomm_hexagon_sdk_3_4_2_eval.bin
 $ ./qualcomm_hexagon_sdk_3_4_2_eval.bin

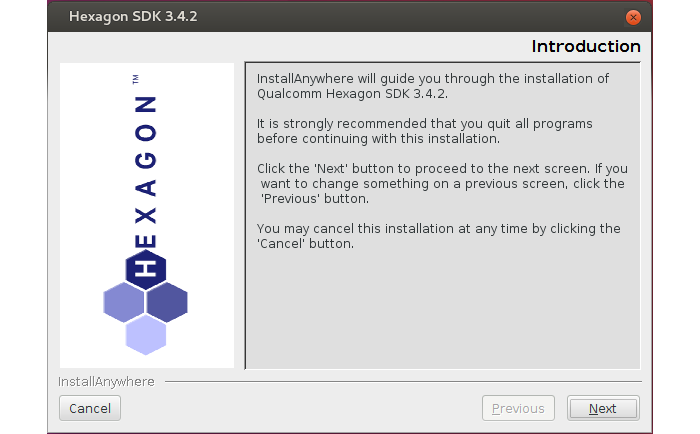

This will pop up a window for the installer, follow the instructions accordingly and complete the installation.

Note: If you encounter an error “Malformed \uxxxx encoding” like here, change the PS1 prompt and then execute the bin file

Set the environment variable $HEXAGON_SDK_ROOT by the command

$ source /work/Qualcomm/Hexagon_SDK/3.4.2/setup_sdk_env.source

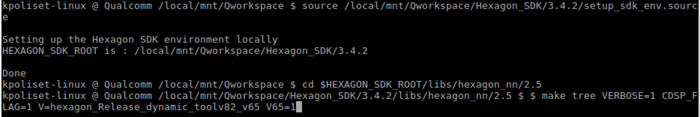

Compile Hexagon NN using the following commands and generate a hexagon library


 $ cd $HEXAGON_SDK_ROOT/libs/hexagon_nn/2.5/
 $ make tree VERBOSE=1 CDSP_FLAG=1 V=hexagon_Release_dynamic_toolv82_v65 V65=1

The libhexagon_nn_skel.so generated here is the shared library for the CDSP

Note: If you get a Hexagon clang error, it is because the Hexagon SDK 3.4.2 has 8.3.02 version of Hexagon Clang instead of 8.2.07. To continue with the build process, Download the Hexagon SDK 3.4.1 for Linux from here and build using all the steps listed till now.

Create a soft link between the 3.4.1 SDK and 3.4.2 SDK , so that Hexagon clang 8.2.07 can be used to build SDK 3.4.2.

Step 2: Generate Testsig and sign the previously generated shared library-libhexagon_nn_skel.so with it.

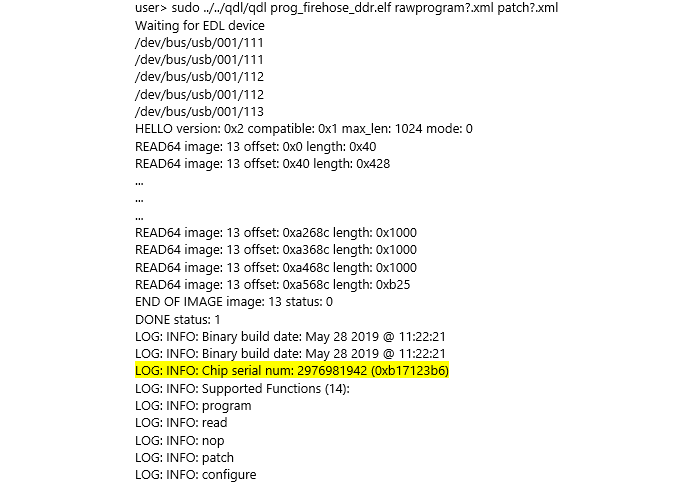

To generate a Testsig, the serial number of Target robotics development kit is needed.
Get serial number from the robotics development kit ’s console using command

$ cat /sys/bus/soc/devices/soc0/serial_number

If this path is not present in the Target robotics development kit, you may try re-flashing it with one of the new releases, the serial number could be seen during the flashing.

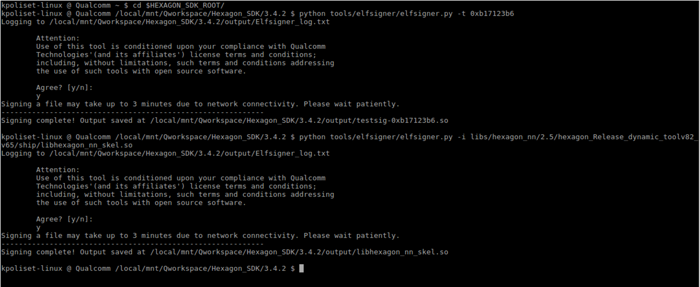

Pass the serial_number to elfsigner.py using the following commands:


 $ cd $HEXAGON_SDK_ROOT
 $ python tools/elfsigner/elfsigner.py -t $SERIAL_NUMBER

Sign the shared library libhexagon_nn_skel.so using elfsigner.py


 $ python tools/elfsigner/elfsigner.py -i
 libs/hexagon_nn/2.5/hexagon_Release_dynamic_toolv82_v65/ship/libhexagon_nn_skel.so

Step 3: Generate Inception v3 model graph for Hexagon DSP.

In this project, you will use an Inception v3 model’s frozen graph for the image classification. In the following steps, download TensorFlow, Bazel and generate a Hexagon DSP compatible version of the Inception V3 frozen graph.

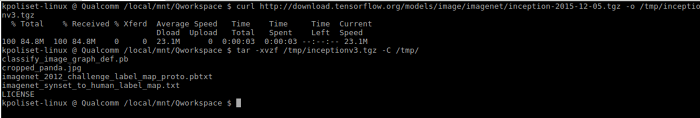

Download TensorFlow Inception V3 model Frozen graph using

$ curl http://download.tensorflow.org/models/image/imagenet/inception-2015-12-05.tgz -o /tmp/inceptionv3.tgz

and unzip it to /tmp directory.

$ tar -xzf /tmp/inceptionv3.tgz -C /tmp/

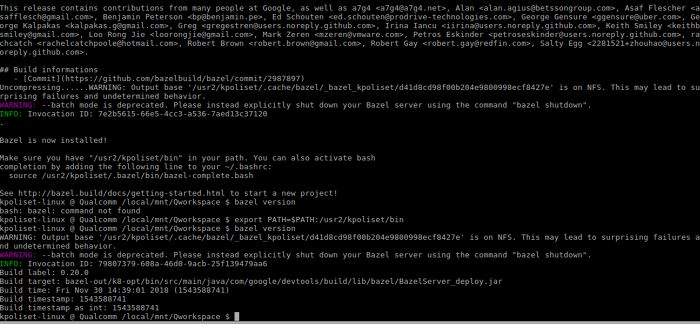

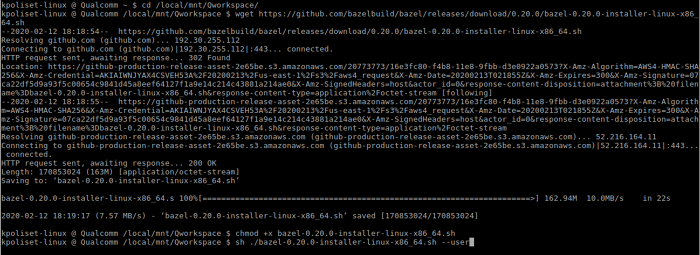

Download and install Bazel (version 0.20.0) using the following commands:


 $ wget https://github.com/bazelbuild/bazel/releases/download/0.20.0/bazel-0.20.0-installer-linux-x86_64.sh
 chmod +x bazel-0.21.0-installer-linux-x86_64.sh
 $ ./bazel-0.21.0-installer-linux-x86_64.sh –-user

Make sure to add /home/bin to $PATH to avoid bazel not found error.

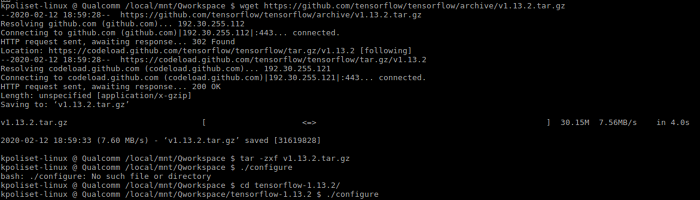

Download and build TensorFlow(version 1.13.2) using the following commands


 $ wget https://github.com/tensorflow/tensorflow/archive/v1.13.2.tar.gz
 $ tar -zxvf v1.13.2.tar.gz
 $ cd tensorflow-1.13.2

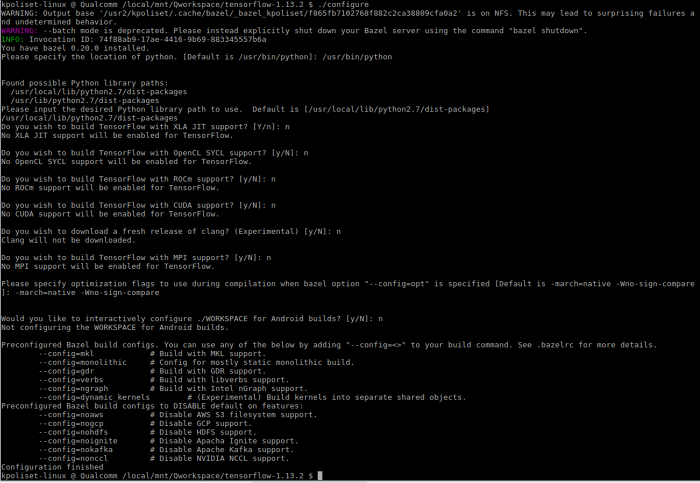

 $ ./configure

To complete the configuration, specify the location of Python and select the appropriate options to build TensorFlow.

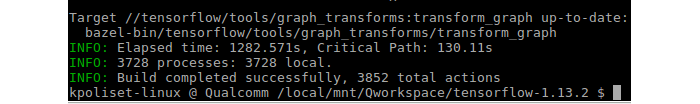

Build transform_graph tool in TensorFlow using the following commands


 $ touch WORKSPACE
 $ bazel build tensorflow/tools/graph_transforms:transform_graph

The build would take a bit longer.

(More information about tranform_graph can be found here)

Quantize protobuf using Graph Transform Tool


 $ bazel-bin/tensorflow/tools/graph_transforms/transform_graph --in_graph=/tmp/classify_image_graph_def.pb --out_graph=/tmp/inception_v3_quantized.pb --inputs="Mul" --outputs='softmax' --transforms='add_default_attributes strip_unused_nodes(type=float, shape="1,299,299,3") remove_nodes(op=Identity, op=CheckNumerics) fold_constants(ignore_errors=true) fold_batch_norms fold_old_batch_norms quantize_weights quantize_nodes fold_constants strip_unused_nodes sort_by_execution_order'

Convert the quantized protobuf into a C file (iv3.c) using the following commands


 $ cd $HEXAGON_SDK_ROOT/examples/hexagon_nn/
 $ virtualenv -p python2 env2

If this gives an error “virtualenv not found”/ “pip missing”, install pip using

$ sudo apt install python-pip

and install virtualenv using


 $ sudo apt-get install python-virtualenv)
 $ source env2/bin/activate

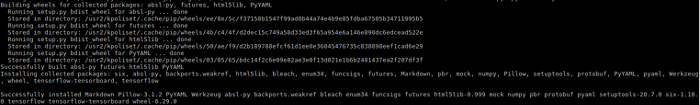

 $ pip install -r environments/req2.txt

Enter the command below to generate Hexagon compatible iv3.c file


 $python $HEXAGON_SDK_ROOT/examples/hexagon_nn/scripts/tensorflow_to_hexagon_nn.py /tmp/inception_v3_quantized.pb $HEXAGON_SDK_ROOT/examples/hexagon_nn/tutorials/007-tensorflow-to-hexagon-nn/inceptionv3_v1.yaml > iv3.c

And copy iv3.c to the folder as shown in the command

$ cp iv3.c $HEXAGON_SDK_ROOT/libs/hexagon_nn/2.5/

Step 4: Compile new fastRPC libraries to generate libcdsprpc and libadsprpc shared objects, using the following commands

Navigate to your workspace (Here it is /local/mnt/workspace),

$ cd /local/mnt/workspace

Download the GNU toolchain using the command below and untar it


$ wget https://releases.linaro.org/components/toolchain/binaries/7.1-2017.08/aarch64-linux-gnu/gcc-linaro-7.1.1-2017.08-x86_64_aarch64-linux-gnu.tar.xz
$ tar -xf gcc-linaro-7.1.1-2017.08-x86_64_aarch64-linux-gnu.tar.xz
$ cd Hexagon_SDK/3.4.2/libs/hexagon_nn/2.5/
$ ln -sf /local/mnt/workspace/gcc-linaro-7.1.1-2017.08-x86_64_aarch64-linux-gnu

Add the GNU toolchain location to $PATH

$ export PATH=$PATH:/local/mnt/workspace/gcc-linaro-7.1.1-2017.08-x86_64_aarch64-linux-gnu/bin/

Download fastRPC and compile new libraries


$ git clone -b automake https://git.linaro.org/landing- teams/working/qualcomm/fastrpc.git
 $ cd fastrpc
  $ ./autogen.sh

If you do not have automake already installed, this step gives an error. Install automake with:

sudo apt-get install automake


 $ ./configure --host=aarch64-linux-gnu
  $ make

Copy the shared object files to the location as shown in the commands


 $ cp src/.libs/libadsprpc.so*
 $HEXAGON_SDK_ROOT/libs/common/remote/ship/UbuntuARM_Debug_aarch64/
 $ cp src/.libs/libcdsprpc.so*
 $HEXAGON_SDK_ROOT/libs/common/remote/ship/UbuntuARM_Debug_aarch64

Step 5: Compile hexagon-nn shared user space library.

$ cd $HEXAGON_SDK_ROOT/libs/hexagon_nn/2.5/

Download the patch using


 $ wget http://people.linaro.org/~srinivas.kandagatla/hexagon_nn_3.4.2_shared_lib.patch

Patch Hexagon NN with the downloaded patch to compile as shared library for user space


 $ patch -p1 < hexagon_nn_3.4.2_shared_lib.patch
  $ make tree V=UbuntuARM_Debug_aarch64 CDSP_FLAG=1 V65=1 GRAPHINIT="iv3.c"

Step 6: Push files to target

Establish an SSH connection from the host Linux PC to the Target robotics development kit and copy the files into the target using the following commands


$ ssh linaro@DB_IP_ADDR mkdir /home/linaro/apps /home/linaro/dsp
 $ scp $HEXAGON_SDK_ROOT/output/testsig*.so linaro@DB_IP_ADDR:~/dsp/
 $ scp $HEXAGON_SDK_ROOT/output/libhexagon_nn_skel.so linaro@DB_IP_ADDR:~/dsp/
 $ scp
 $HEXAGON_SDK_ROOT/libs/hexagon_nn/2.5/UbuntuARM_Debug_aarch64/ship/libhexagon_nn.so linaro@DB_IP_ADDR:~/apps/
 $ scp $FASTRPC_LIB_PATH/src/.libs/libcdsp* linaro@DB_IP_ADDR:~/apps/
  $ scp $FASTRPC_LIB_PATH/src/.libs/libadsp* linaro@DB_IP_ADDR:~/apps/
  $ scp $FASTRPC_LIB_PATH/src/.libs/*rpcd linaro@DB_IP_ADDR:~/apps/

Once the files are pushed to the Target, you do not need to use the host PC anymore.

On the Qualcomm Robotics RB3 Development Kit (Target)

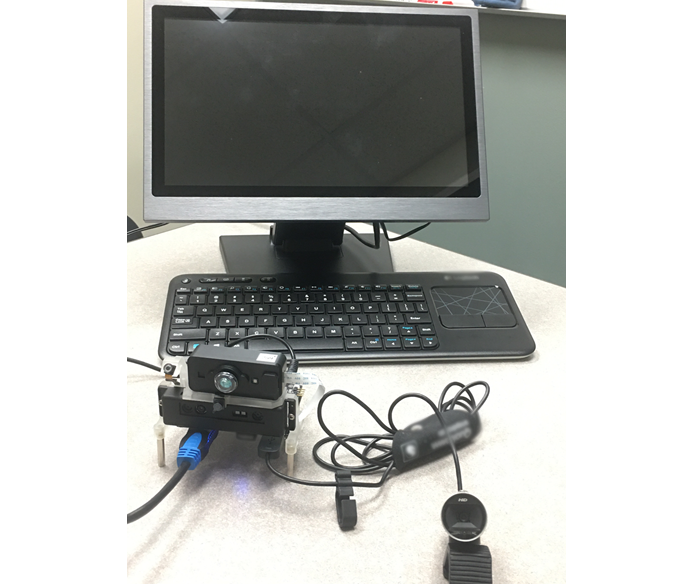

Step 1: Make hardware connections and power up Robotics Development Kit, set the Screen to avoid blanking

Connect Robotics Development Kit with USB Camera on the right most port, and wireless USB for Keyboard and mouse on the other port.
Connect Robotics Development Kit with HDMI cable and the other end of the cable to the HDMI Screen/monitor that is powered on.
Connect the power cable to Robotics Development Kit and wait for the desktop to pop up.

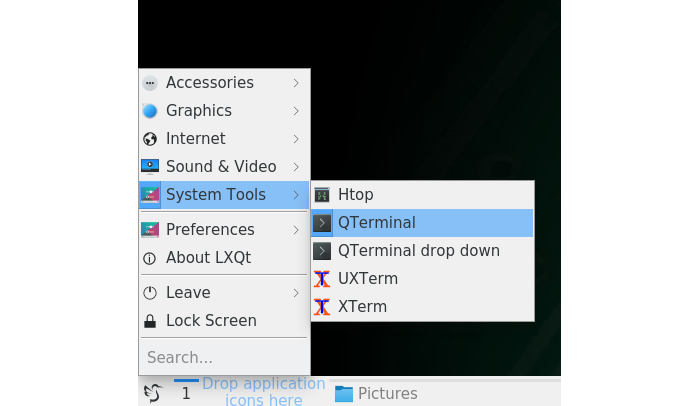

Open a terminal by navigating to System Tools > QTerminal as shown below

Change the screen properties using the commands below, to avoid blanking of screen after a short period of inactivity on the board.


 $ xset s off
 $ xset dpms 0 0 0
 $ xset dpms s off

Step 2: Install fastrpc lib on Target Qualcomm Robotics Development Kit

In the terminal, login as sudo and check if there are any old adsprpc libraries and remove them


 $ sudo su
  $ rm /usr/local/libadsp* /usr/local/libcdsp* /usr/local/bin/cdsprpcd /usr/local/bin/adsprpcd

Copy the fastRPC libs to /usr/local/lib and /usr/local/bin


 $ cp /home/linaro/apps/libcdsp* /usr/local/lib/
 $ cp /home/linaro/apps/libadsp* /usr/local/lib/
 $ cp /home/linaro/apps/*rpcd /usr/local/bin

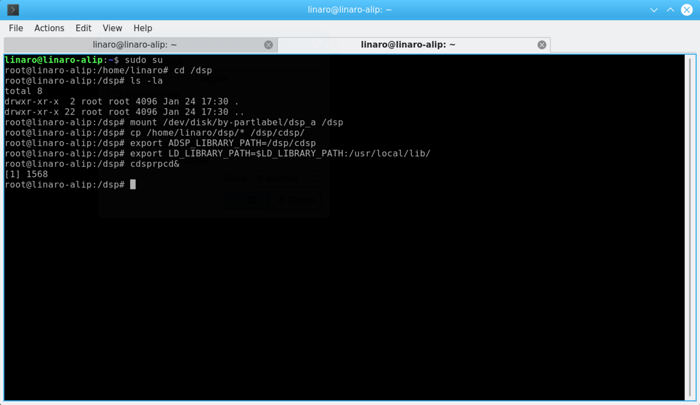

Step 3: Mount the dsp and start cdsprpcd daemon


 $ mkdir /dsp
  $ mount /dev/disk/by-partlabel/dsp_a /dsp
  $ cp /home/linaro/dsp/* /dsp/cdsp/
  $ export ADSP_LIBRARY_PATH=/dsp/cdsp
  $ export LD_LIBRARY_PATH=$LD_LIBRARY_PATH:/usr/local/lib
  $ cdsprpcd&

Step 4: Install OpenCV on the Target

In another terminal, type in the following commands to download and install OpenCV


 $ git clone https://github.com/opencv/opencv.git
  $ cd ~/opencv
  $ mkdir build
  $ cd build
  $ cmake -D CMAKE_BUILD_TYPE=Release -D

CMAKE_INSTALL_PREFIX=/usr/local

(If this gives an error “cmake not installed”, install cmake with


 apt-get -y install cmake)
 $ make -j8
  $ sudo make install

Step 5: Run OpenCV ImageNet application for camera

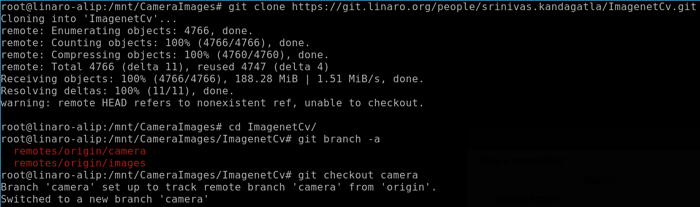

Download the application from the camera branch and build using the following commands


 $ git clone https://git.linaro.org/people/srinivas.kandagatla/ImagenetCv.git
  $ cd ImagenetCv

Build application using


 $ cmake .
  $ make

Run the application using the command

$ ./ImagenetCv

If this shows an error like “install libgtk2.0-dev”

Install libgtk2.0-dev using the commands given below and run the application


 $ apt get update
 $ apt get upgrade
 $ apt get install libgtk2.0-dev

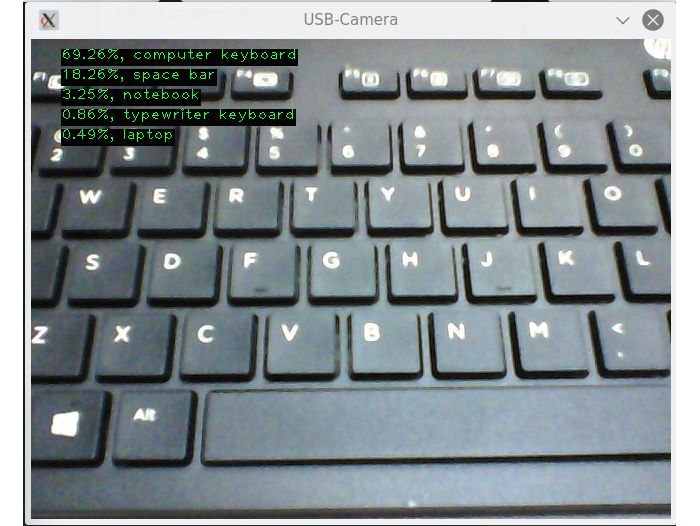

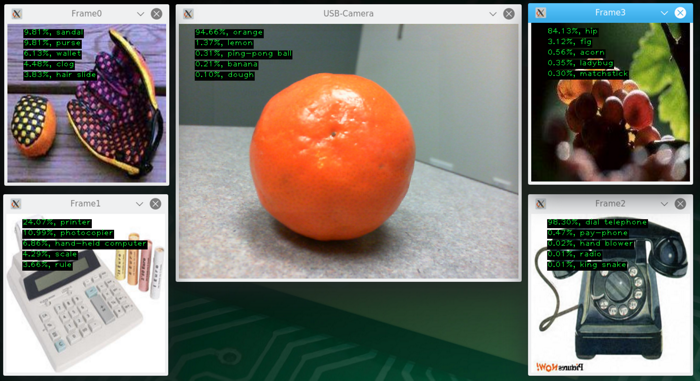

Running the application pops up a window that shows video captured by the camera and the image classification being done

Step 6: Run OpenCV ImageNet application for local Images

Download the application from the images branch and build using the following commands


 $ git clone https://git.linaro.org/people/srinivas.kandagatla/ImagenetCv.git
  $ cd ImagenetCv
  $ cmake .
  $ make
 $ ./ImagenetCv

4 windows pop up, that show image classification being done on local images.

Qualcomm Robotics and Qualcomm Hexagon are products of Qualcomm Technologies, Inc. and/or its subsidiaries.

Opinions expressed in the content posted here are the personal opinions of the original authors, and do not necessarily reflect those of Qualcomm Incorporated or its subsidiaries ("Qualcomm"). The content is provided for informational purposes only and is not meant to be an endorsement or representation by Qualcomm or any other party. This site may also provide links or references to non-Qualcomm sites and resources. Qualcomm makes no representations, warranties, or other commitments whatsoever about any non-Qualcomm sites or third-party resources that may be referenced, accessible from, or linked to this site.

Project Authors

Srinivas Kandagatla

Ramya K Polisetti
