The Qualcomm Dragonwing IQ-9075 EVK showcases the most common features of the Qualcomm Dragonwing IQ-9075 processor, which is optimized for industrial IoT, Edge AI and robotics applications involving heavy workloads in the most demanding environments like autonomous mobile robots (AMRs) and industrial automation.

The Qualcomm Dragonwing IQ-9075 EVK consists of a main board, supporting key interfaces, and optional expansion mezzanine boards to support additional features. It enables developers, OEMs, and ODMs to design and test their solutions, integrated with standard interfaces and connectors, mezzanine expandability, and wireless connectivity, powered by the industrial-grade Qualcomm IQ-9075 processor.

Test and prototype software development and hardware designs with less effort and cost to get your product to market faster.

Product license agreement
Featured resourcesQuick Start Guide
Discord
Support
Product Brief

Specifications

Features
EVK-IQ9075M-STARTER-1.2 based on QCS9075-0-AA
Memory
Type
LPDDR51
Capacity
36 GB
Storage
SD
Micro SD card
UFS Capacity
128 GB
Ethernet
Ports
2.5 GE
Camera
Interface Type
4x Flex connector Camera Serial Interface (CSI)
Display
Interface Type
2x Mini DisplayPort (MiniDP), 1x Flex connector Display Serial Interface (DSI)
  1. With link ECC
  2. 1x microphone, 2x speaker
  3. 1x EDL and fastboot, 1x Host mode. Share one controller. Not active simultaneously.
  4. OTG mode (ADB)
  5. 2x RX/TX, 1x RX/TX/CTS/RFR, 1x SAIL_UART (RX/TX)
  6. 1x SAIL_SPI (CS0), 1x SAIL_SPI (CS0, CS1)
  7. 5x I²C, 3x CCI_I2C, 1x SAIL_I2C
  8. 44x SOC GPIO, 30x PMIC GPIO
  9. 6x QUP (L0/1), 3x QUP (L0-3), 1x QUP (L2/3), 1x QUP (QSPI), 1x QUP (L0-3, CS0, CS1)
  10. CAN-FD on LS expansion
  11. ICM-42688
  12. TMP411DQDGKRQ1

Specifications



Processor Dragonwing IQ-9075
See more
Operating Systems Ubuntu, Upstream Linux with Yocto Support
Memory 36 GB LPDDR5 with link ECC
Storage 128 GB UFS
PCIe/Connectivity Wi-Fi/Bluetooth: M.2 module with connector on mainboard PCIe: 1x PCIex4 slot or expansion (switched), 1x m.2 E key (Wi-Fi) or expansion (switched)
Camera 4x MIPI CSI (C/D-PHY) flex connectors
USB
  • USB Type C (host or device mode)
  • USB Type C (host mode)
  • USB 2.0 (host or device mode)
Part Number SKU:QCS9075-AA
EVK-IQ9075M-STARTER-1.2
Product Brief

Image Gallery

Featured Documents

Benefits

Performance

  • Heterogeneous computing architecture
  • Optimized energy efficiency and computational performance

On-Device AI

  • Dedicated NPU for on-device AI
  • 20-40 Dense TOPS (INT8) performance
  • Runs 13Bn parameter models
  • Generates 9 tokens per second

Versatility and Scalability

  • Versatile edge AI platform
  • Robotics and industrial automation
  • Retail and smart city workloads

Camera and Computer Vision

  • Three MIPI CSI ports
  • Concurrent 4K video streams
  • Computer vision applications

Wireless Connectivity

  • Qualcomm® NFA765A module
  • Fast and reliable wireless connectivity
  • Long range connectivity between devices and peripherals

Rich Peripheral Extensibility

  • Connection to a range of peripherals
  • Low- and high-speed connectors
  • Standard interfaces
  • Communication protocol support
Memory
Type
LPDDR51
Capacity
36 GB
Storage
SD
Micro SD card
UFS Capacity
128 GB
Ethernet
Ports
2.5 GE
Camera
Interface Type
4x Flex connector Camera Serial Interface (CSI)
Display
Interface Type
2x Mini DisplayPort (MiniDP), 1x Flex connector Display Serial Interface (DSI)
  1. With link ECC
  2. 1x microphone, 2x speaker
  3. 1x EDL and fastboot, 1x Host mode. Share one controller. Not active simultaneously.
  4. OTG mode (ADB)
  5. 2x RX/TX, 1x RX/TX/CTS/RFR, 1x SAIL_UART (RX/TX)
  6. 1x SAIL_SPI (CS0), 1x SAIL_SPI (CS0, CS1)
  7. 5x I²C, 3x CCI_I2C, 1x SAIL_I2C
  8. 44x SOC GPIO, 30x PMIC GPIO
  9. 6x QUP (L0/1), 3x QUP (L0-3), 1x QUP (L2/3), 1x QUP (QSPI), 1x QUP (L0-3, CS0, CS1)
  10. CAN-FD on LS expansion
  11. ICM-42688
  12. TMP411DQDGKRQ1

Qualcomm IQ-9075 EVK

Processor

Qualcomm IQ-9075 See more.
CPU: Octa-core (2.36 GHz) - DMIPS: Up to 227K

GPU: Qualcomm® Adreno™ 663 MH 3.0 @ 184 fps (800MHz

Operating Systems: Linux, Ubuntu

Storage

2x 128GB UFS, micro SD card, EEPROM for MACs

Connectivity

Wi-Fi/BT: M.2 module with connector on mainboard
PCLe: 1x PCIex4 slot or expansion (switched), 1x m.2 E key (Wi-Fi) or expansion (switched)

Display

• 2x mini-DP (one with MST)

• DSI flex connection (display not included)

Camera

4x MIPI CSI (C/D-PHY) flex connectors

USB

• USB Type C (host or device mode)

• USB Type C (host mode)

• USB 2.0 (host or device mode)

Audio

• 1x I2S mic

• 2x I2S speaker amps

• additional I2S on GPIOs

Ethernet

RJ45 (2.5GbE)

CAN

1x CAN-FD on LS expansion

Other I/Os on mezzanine

connectors (1.8V)

• 2x UART (RX/TX), 1x UART (RX/TX/CTS/RFR), 1x SAIL_UART(RX/TX)

• 1x SAIL_SPI (CS0), 1x SAIL_SPI

(CS0, CS1)

• 5x I2C, 3x CCI_I2C, 1x SAIL_I2C

• 44x SOC GPIO, 30x PMIC GPIO (After using above listed QUPs, I2S)

• 6x QUP (L0/1), 3x QUP(L0-3), 1x QUP (L2/3), 1xQUP(QSPI), 1xQUP(L0-3, CS0, CS1)

TPM

ST33HTPH2x32AHE4 on mainboard (EVT-WNC version)

Sensors

IMU: ICM-42688

Debug/Ul

FTDI

Thermal management

CPU cooler/fan

Power

DC barrel plug (20V/160W wall adapter provided)

Size

100x100x2mm

Operating

Temperature

-20°C to 70°C

Other parts

included in kit

• 160W power supply (862-65274-0003) and adapter (45-82893-A6)

• NFA765A Wi-Fi module with RF cables (30-55360-1200)

• 65W cooler/fan and mechanical hardware

• Cables: micro USB and Type C USB cables, miniDP to DP adapter

• NO AC power cord included, please order separately

Solutions

AI Model Development and Prototyping

Create, test, and optimize AI models for compute, smart vision, language processing, and machine learning applications. It supports frameworks like ONNX Runtime, TensorFlow Lite, and PyTorch.

Robotics and Industrial Automation

Build proof of concepts for autonomous mobile robots (AMRs), unmanned aerial vehicles (UAVs), drones, industrial machinery, and agricultural robotics with real-time, on-device AI decision-making and execution.

Multi-sensor and Camera Fusion

Design multi-sensor and camera systems with real-time sensor fusion technology for surveillance, object detection, navigation, predictive maintenance, quality control, and process automation.

High Performance Edge Computing

Facilitate the development of edge AI solutions for industrial IoT, smart cities, retail, work/site safety, smart buildings, and healthcare.

Featured Video

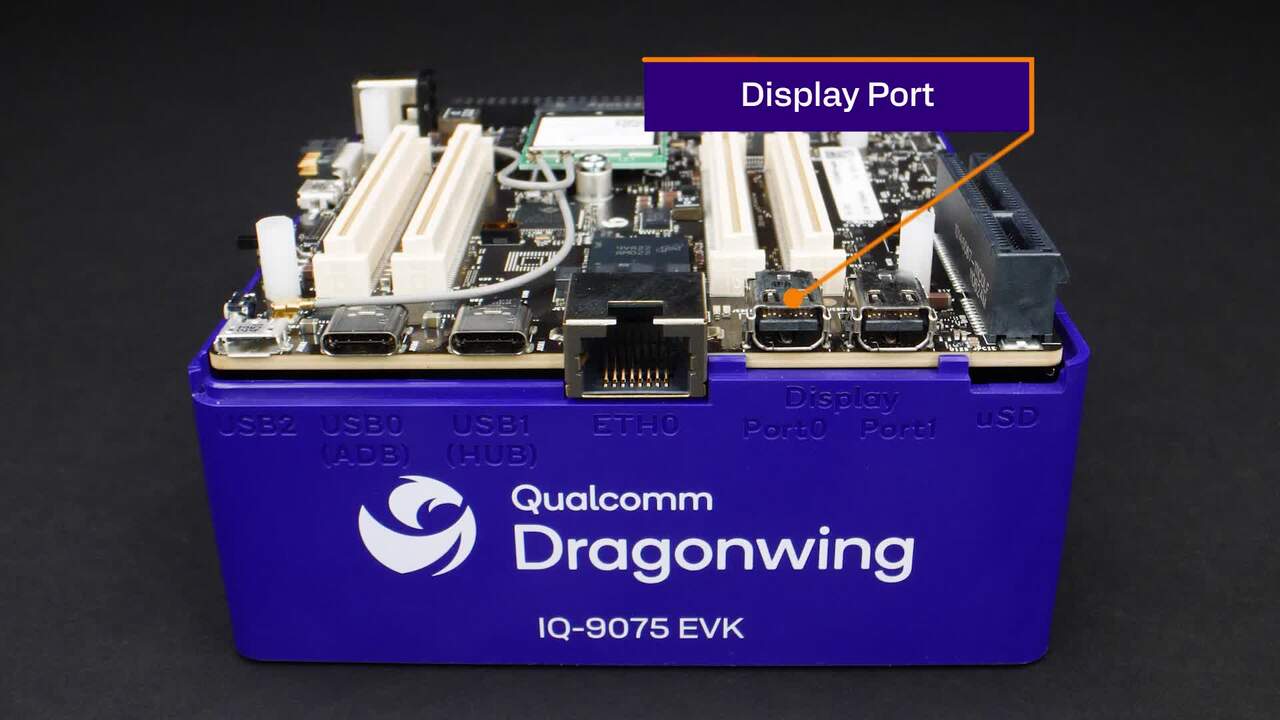

IQ9075 EVK Product Intro Unboxing

04:49
IQ9075 EVK Product Intro Unboxing

4:49

Current Time 0:00
Duration 4:48
Loaded: 2.06%
Stream Type LIVE
Remaining Time 4:48

1x
  • Chapters
  • descriptions off, selected
  • captions off, selected
  • en (Main), selected

Sample Applications

Explore real-world applications and solutions developed using IQ-9075 across industrial and edge use cases

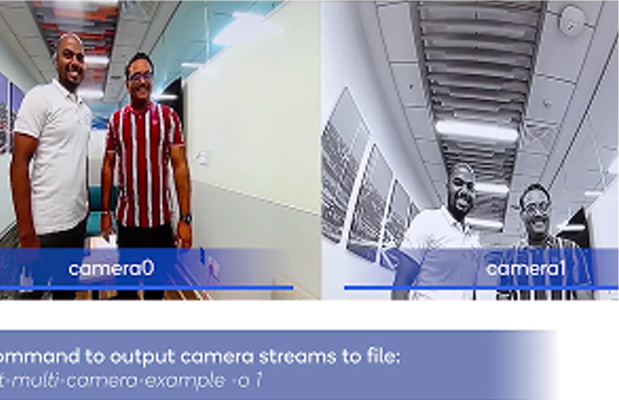

Multicamera streaming or encoding (Dash cam)

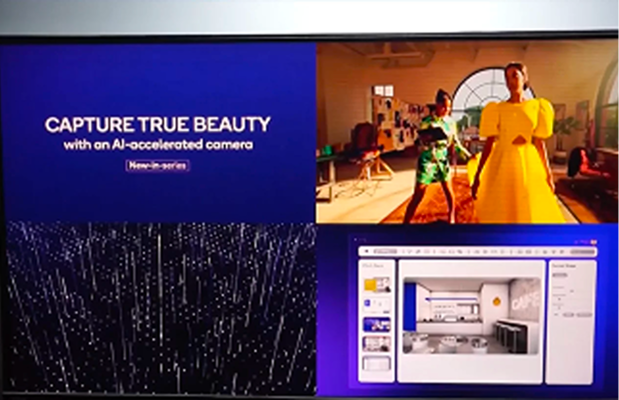

Multichannel video decode and compose (Video wall)

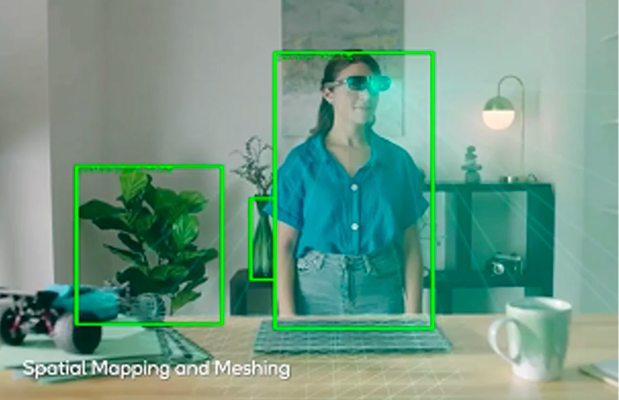

AI Object Detection

Embedded AI workflow

Qualcomm Dragonwing IQ-9075 EVKs are supported by platforms and SDKs such as Edge Impulse, Qualcomm AI Hub, and Foundries.io, for a streamlined AI model workflow, and Qualcomm Intelligent Multimedia (IM) SDK for a simplified integration of video and audio streams. The AI workflow includes AI model selection, raw data acquisition, model training/refining and benchmarking, and deployment onto multiple edge devices in production.
