Qualcomm QCC74xM EVKs for multi-connectivity applications.

The Qualcomm® QCC74xM EVKs are available to evaluate the features and performance of their respective Qualcomm® QCC74xM tri-radio modules. They allow you to prototype demanding IoT applications requiring multiple connectivity options.

The QCC74xM EVKs enable developers, OEMs, and ODMs to design and test industrial-grade IoT multi-radio solutions (Wi-Fi 6, qualified against Bluetooth^® Core 5.4 technology, and Thread) using standard interfaces and hostless mode. To facilitate rapid IoT application development, the EVKs are backed by an open-source SDK available on CodeLinaro, coupled with a VS Code extension and the Qualcomm^® Connectivity Integrated Development Environment

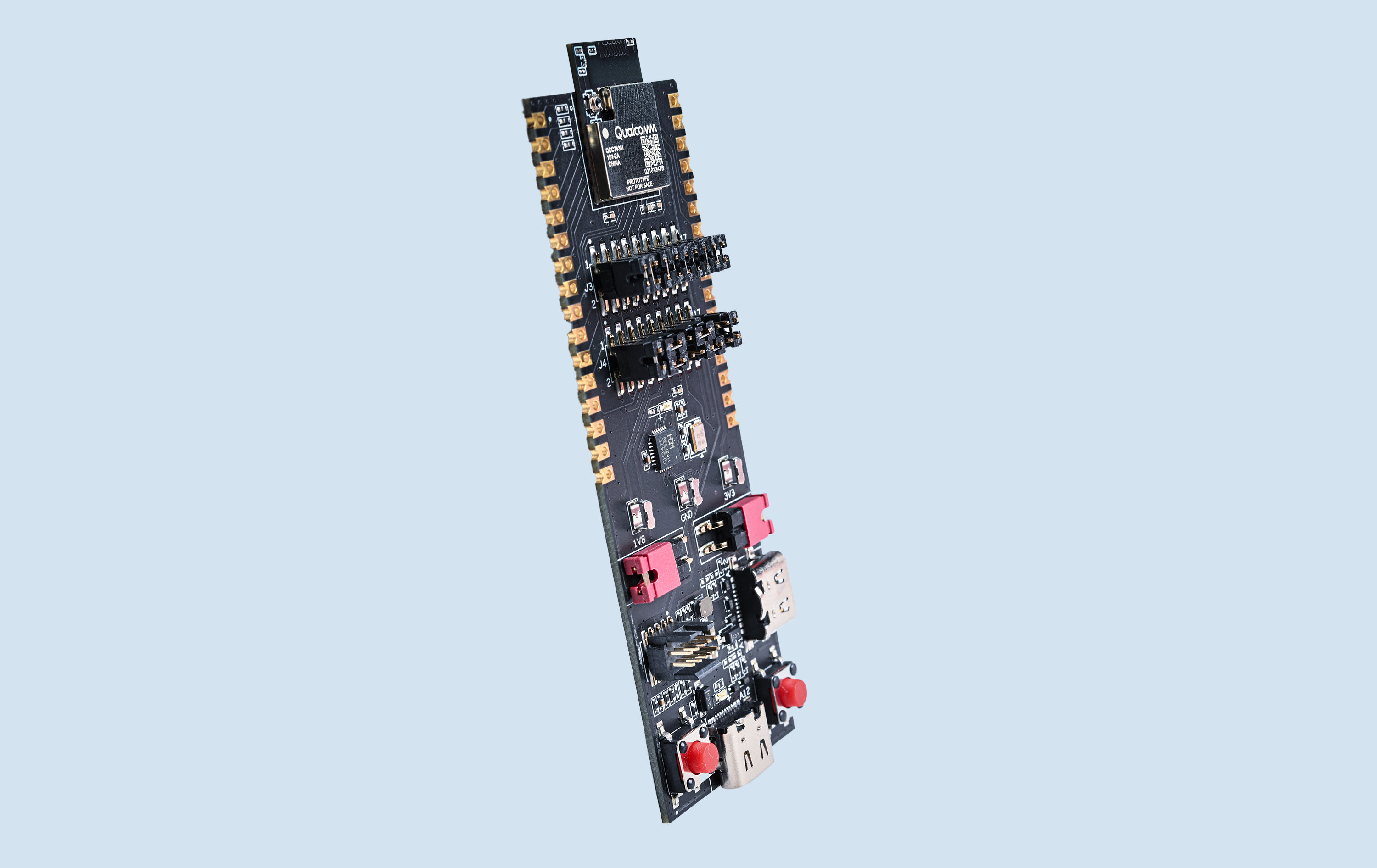

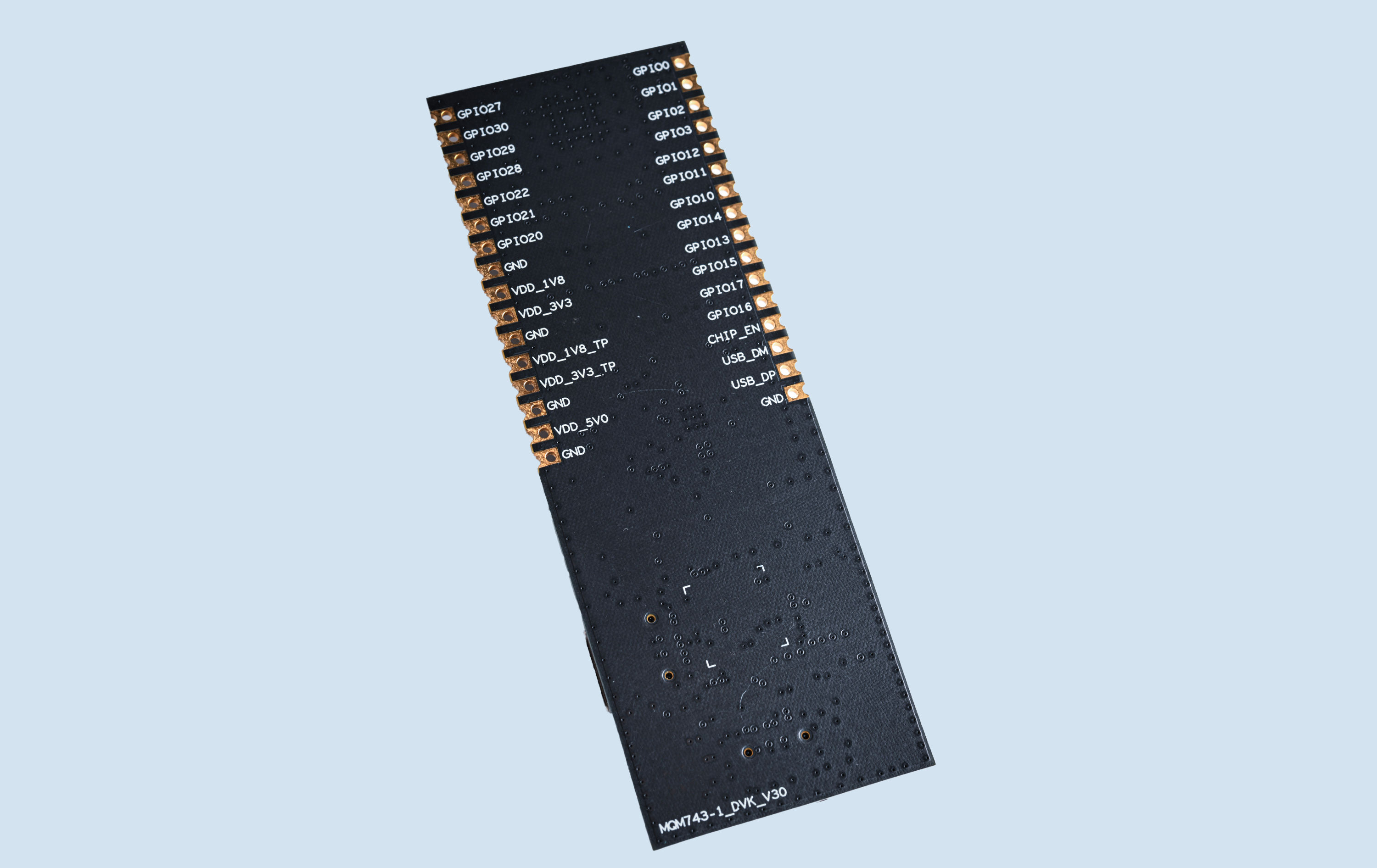

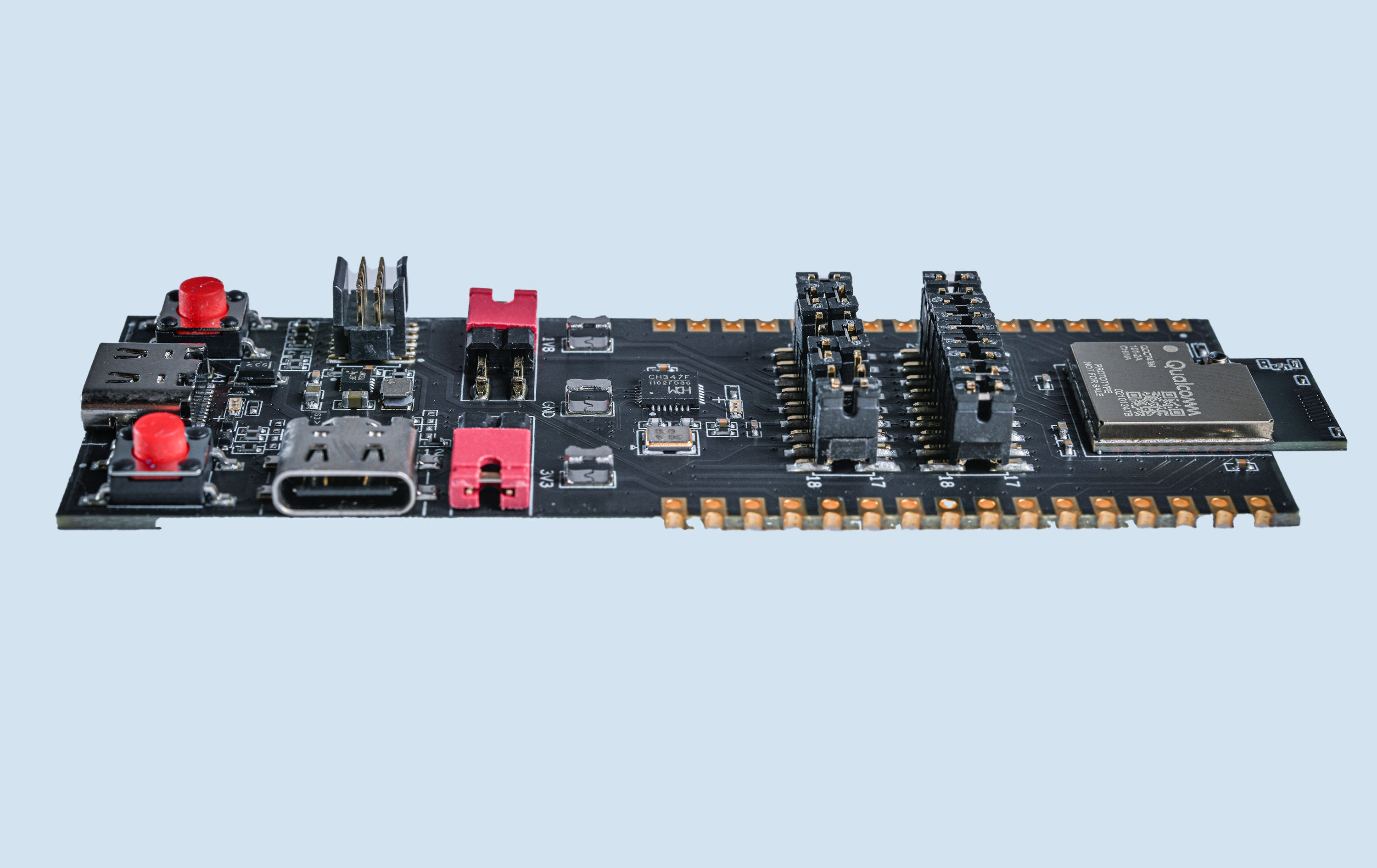

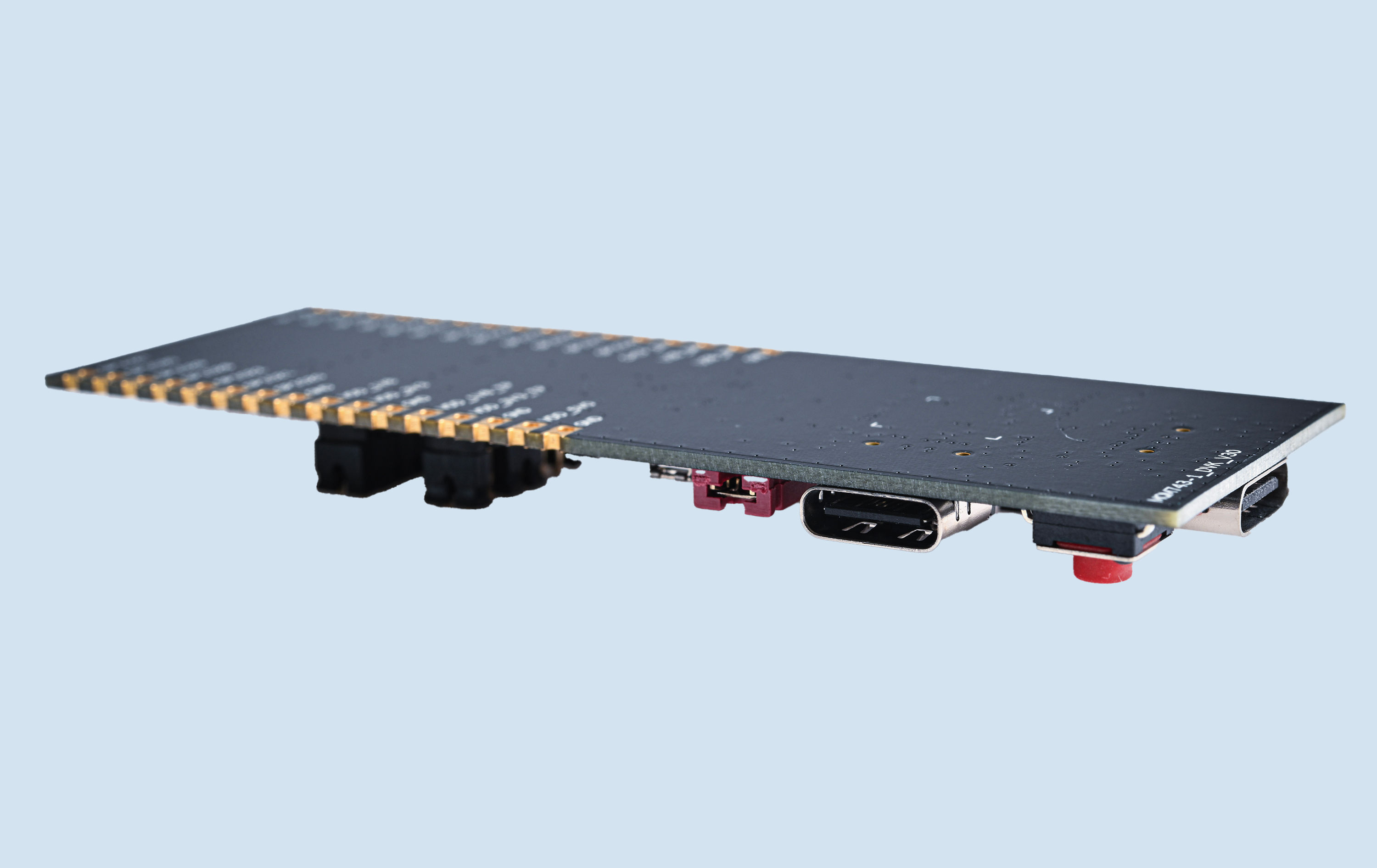

The EVKs consist of a main board with standard connectors that integrate their respectiv...

Product license agreement

Featured DocumentsQuick start guide

User guide

QCC74xM module

Open-source software SDK

Multi-radio Integration

Build wireless IoT applications with multiple radio options including Wi-Fi 6, qualified against Bluetooth® Core 5.4, and Thread.

High Computing Power

Gain high compute performance for your demanding edge applications with the powerful 32-bit RISC-V microcontroller with a DSP and FPU.

Built-in Security

A built-in security acceleration engine supports encryption algorithms, secure boot, and secure debugging. QCC74xM modules are PSA Certified Level 1.

Rich Peripheral Interfaces

The EVK provides a wide range of standard physical interfaces for better compatibility with most external IoT devices.

Open-source Development Environment

Accelerate your development with the open-source SDK available on CodeLinaro, the Qualcomm® Connectivity Integrated Development Environment (QCCIDE), and a VS Code extension plug-in.

Rich Multimedia Support

The EVK's camera and display interfaces, along with its MIC audio input and MJPEG 720p codec, allow applications to capture and display multimedia at the edge.

		QCC743M	QCC744M	QCC748M
Processsor	32-bit RISC-V @ 325MHz	Y	Y	Y
Onboard Memory	128KB ROM, 484KB SRAM	Y	Y	Y
SiP Memory (optional)	4/8/16MB pSRAM (optional)	N	4MB	4/8MB
	4/8MB NOR Flash (optional)	N	N	4MB
Wi-Fi Standard	1x1 2.4GHz 802.11 b/g/n/ac/ax (Wi-Fi 6)	Y	Y	Y
Bluetooth Standard	Bluetooth Low Energy v5.4	Y	Y	Y
802.15.4 Standard	Thread and Zigbee-ready	Y	Y	Y
Matter support	Matter over Wi-Fi and Thread supported, with BLE commissioning	Y	Y	Y
Operating Temperature	-40C to +105C or -40C to +85C with SIP memory	-40C to 85C	-40C to 85C	-40C to 85C
EVK Input Power	USB or 5V	Y	Y	Y
Module Antenna Config	PCB antenna or RF Connector	Y	Y	Y
Module onboard Flash	4MB or 8MB QSPI Flash	4MB	8MB	8MB
Ethernet	RMII (via GPIO)	N	Y	Y
Audio Codec	1x DAC (Speaker) / 1x ADC (Mic) via GPIO	N	Y	Y
Video Codec	MJPEG Encoding	N	Y	Y
Camera Interface	DVP (via GPIO)	N	Y	Y
Display Interface	DBI (via GPIO)	N	Y	Y
GPIO	Up to 19 (5x5 QFN) or 35 (7x7 QFN)	Up to 19	Up to 35	Up to 35
SDIO	SDIO 2.0 Secondary, SD Card Interface	Y	Y	Y
UART	2x	Y	Y	Y
USB	2.0	N	N	Y
ISO 11898 (CAN Bus)	1x	Y	Y	Y
SPI	Primary/Secondary	Y	Y	Y
I2C	2x	Y	Y	Y
I2S	Primary/Secondary	Y	Y	Y
PWM	1x PWM (4 channels)	Y	Y	Y
QSPI	XiP QSPI (Flash)	Y	Y	Y
Timers	RTC, 2x 32-bit, 1x 16-bit	Y	Y	Y
IR Controller	Receiver	Y	Y	Y
ADC	General Purpose 12/14/16 bits	Y	Y	Y
DAC	General Purpose 12-bit	Y	Y	Y
JTAG	via GPIO	Y	Y	Y

EVK Variants

The QCC74xM EVKs come in variants based on QCC743M or QCC744M module that include a PCB antenna or an RF Connector:

Dev Kit	Order Number	Antenna Config	Embedded Memory	Extended Memory	GPIOs	Multimedia Features
QCC743M EVK	65-79672-1 EVK-QCC743M-1-01-AA	PCB Antenna	No	4MB Flash	Up to 19	No
QCC743M EVK	65-79672-2 EVK-QCC743M-1-01-AB	RF Connector	No	4MB Flash	Up to 19	No
QCC748M EVK	65-79674-7 EVK-QCC748M-6-01-0-AA	PCB Antenna	8MB PSRAM	16MB Flash	Up to 32	Camera & Display interfaces, A/V codecs USB 2.0
