Qualcomm QCC730M EVK for micro-power Wi-Fi IoT applications

The Qualcomm® QCC730M EVK is available to evaluate the features and performance of the QCC730M module and prototype micro-power Wi-Fi IoT applications such as smart home and battery-powered applications.

The QCC730M EVK enables developers, OEMs, and ODMs to design and test micro-power Wi-Fi solutions using standard interfaces and selectable power modes. To facilitate rapid IoT application development, the EVK is backed by an open-source SDK available on CodeLinaro and Zephyr coupled with a VS Code extension.

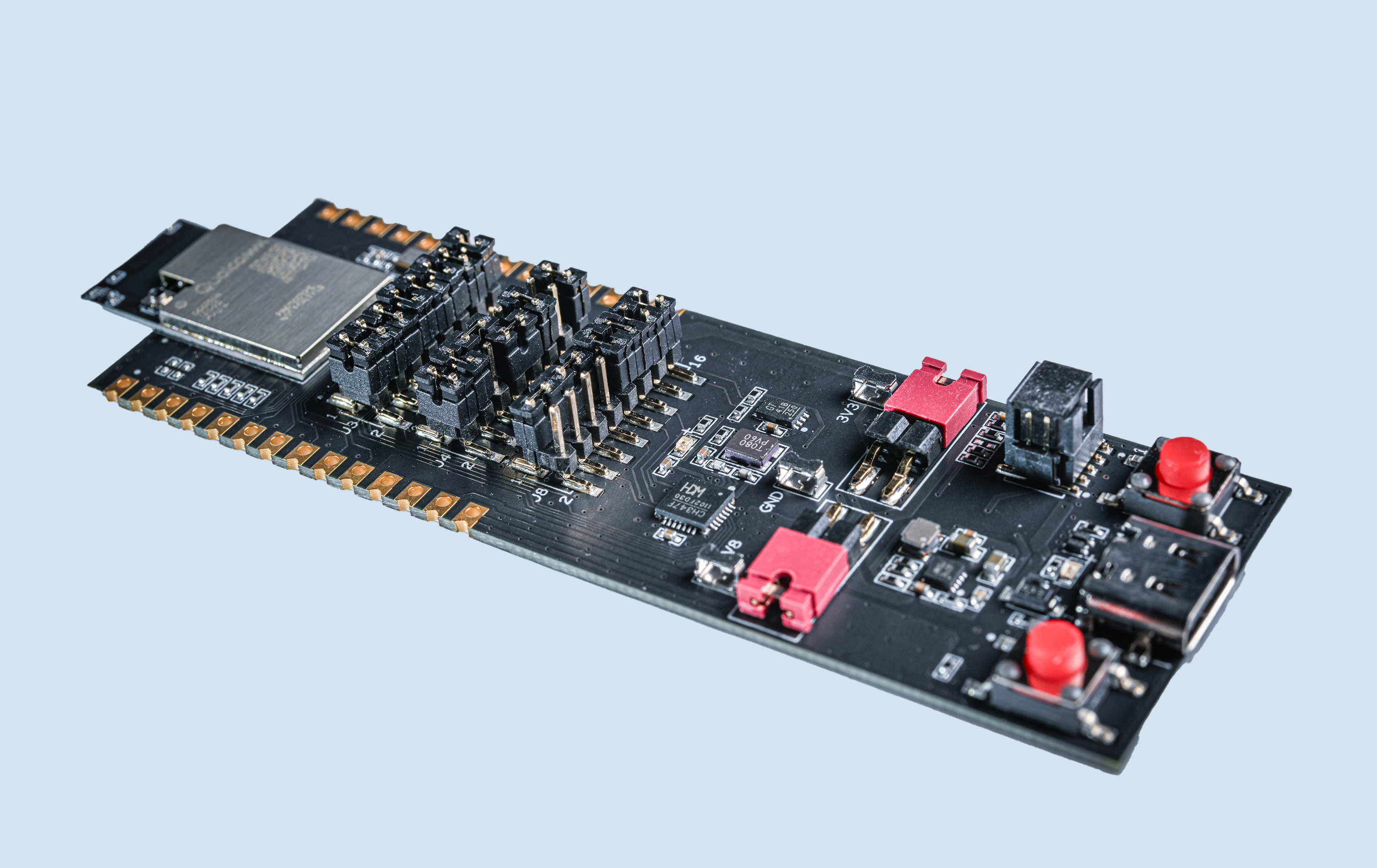

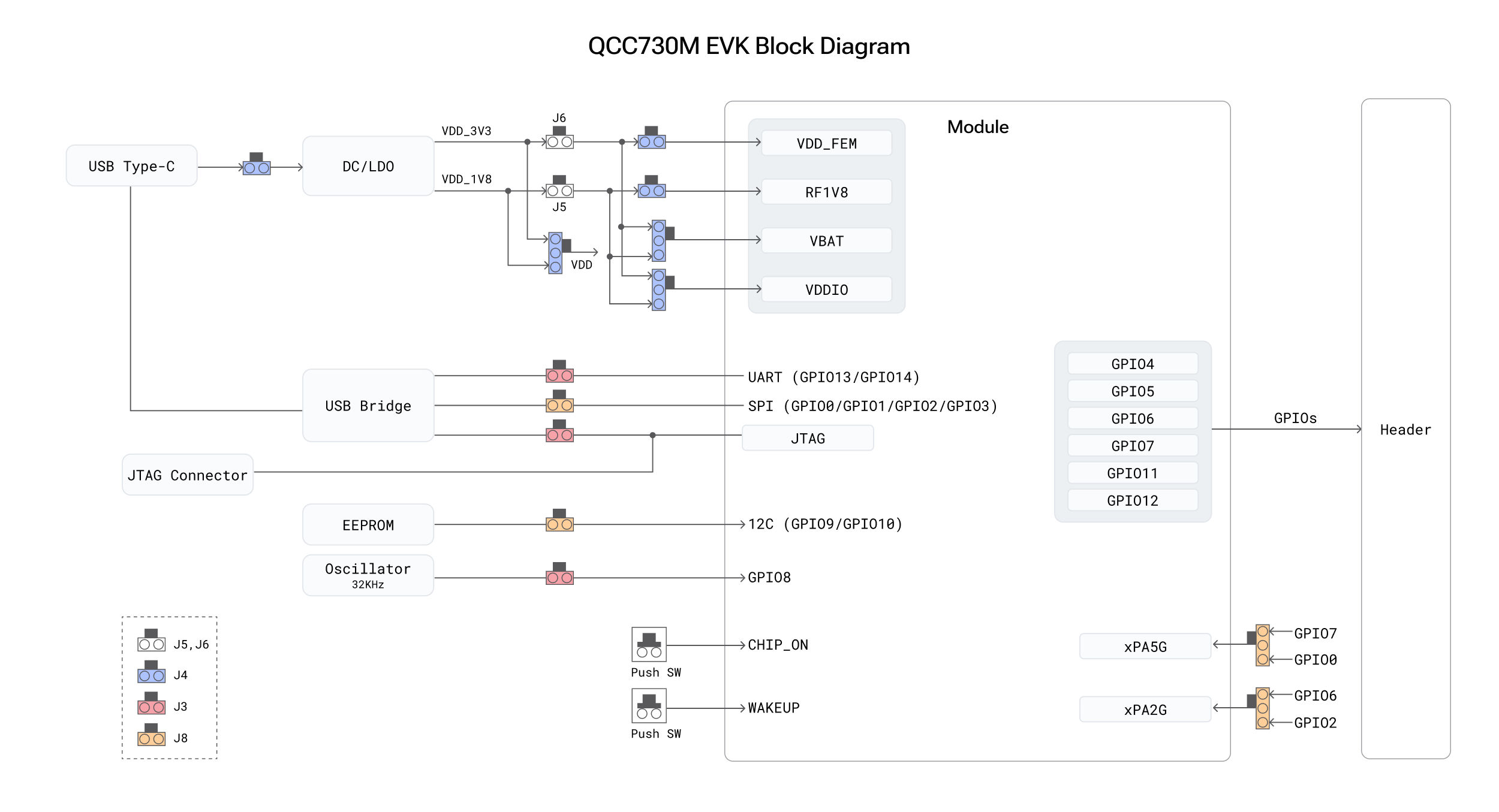

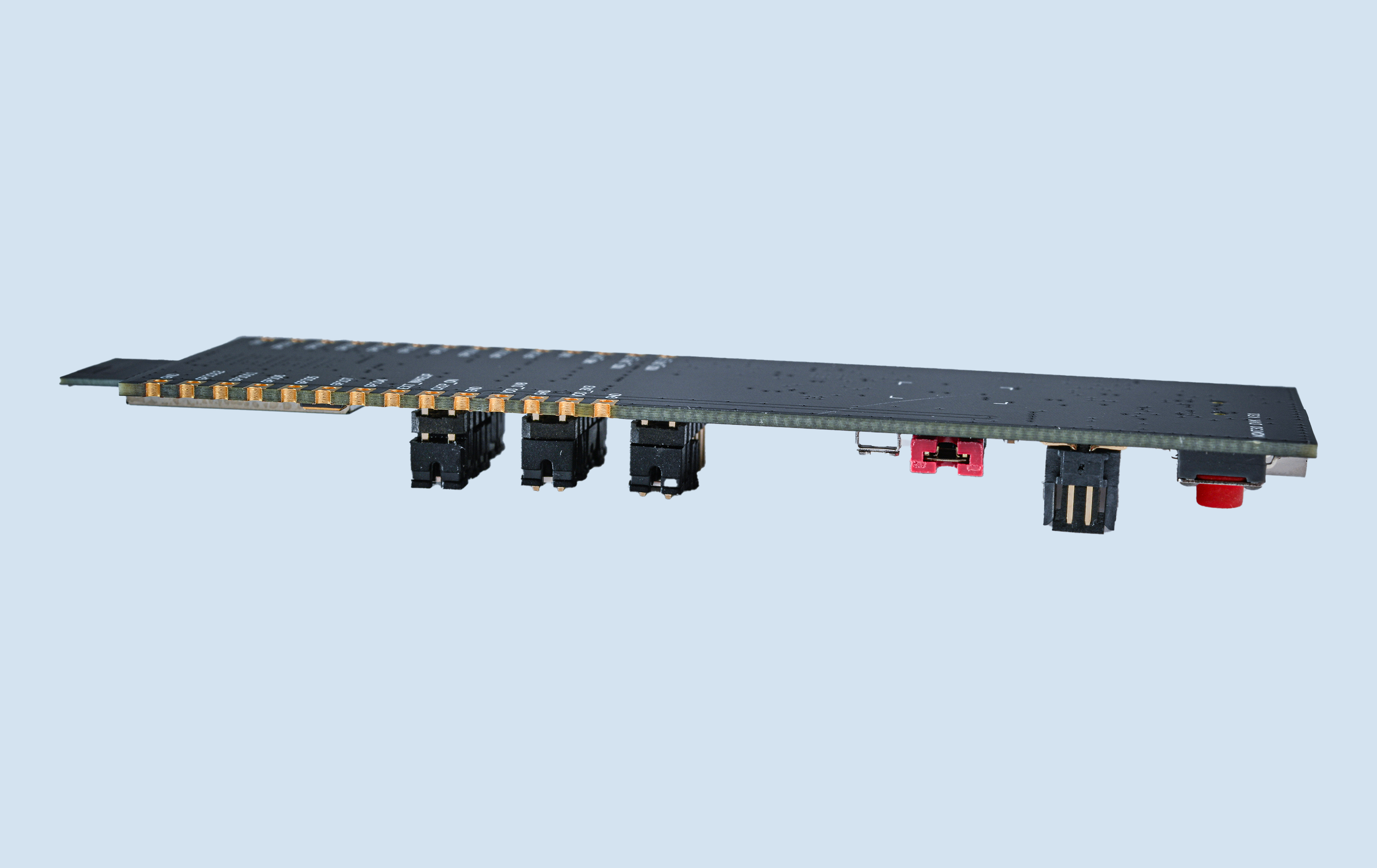

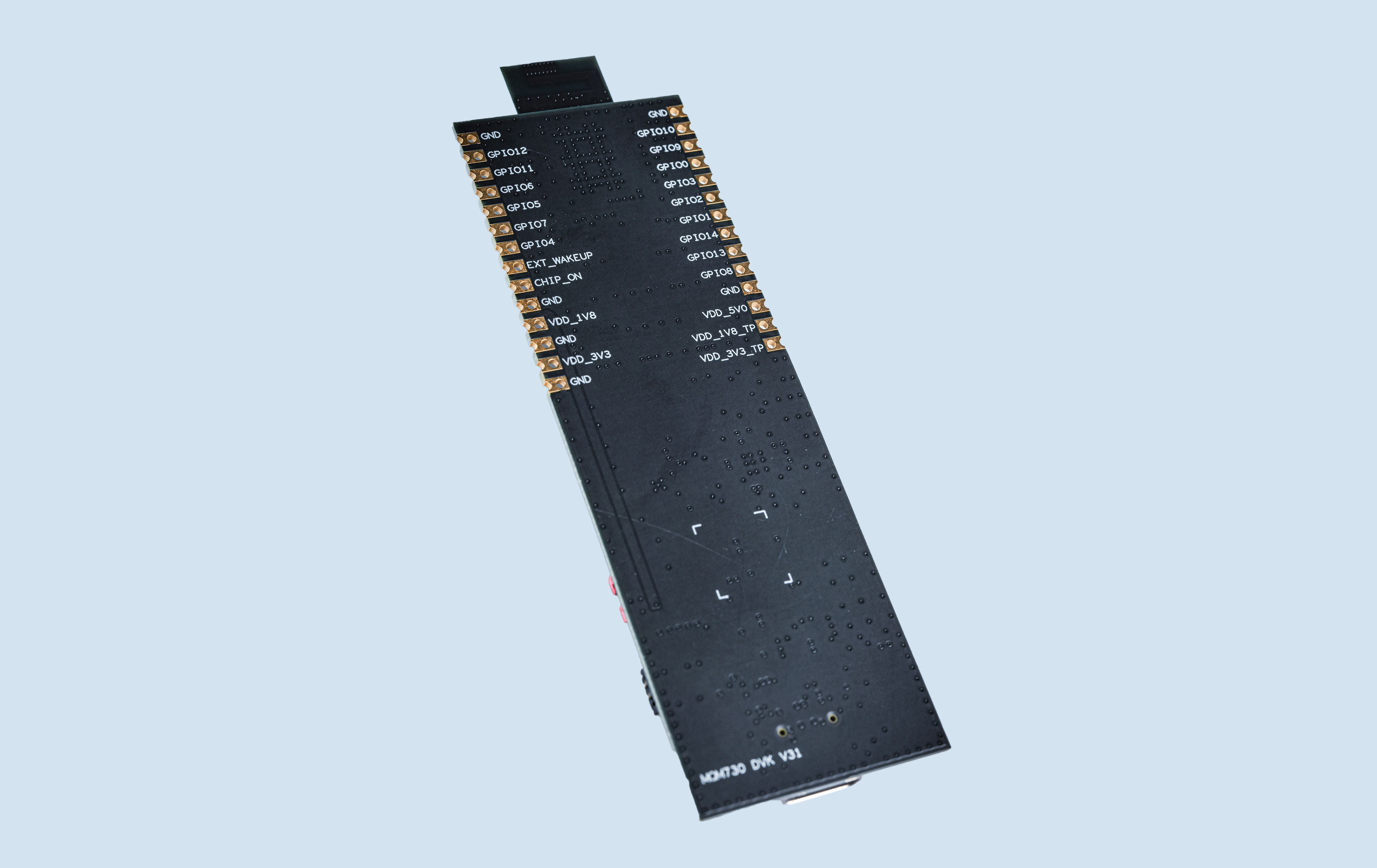

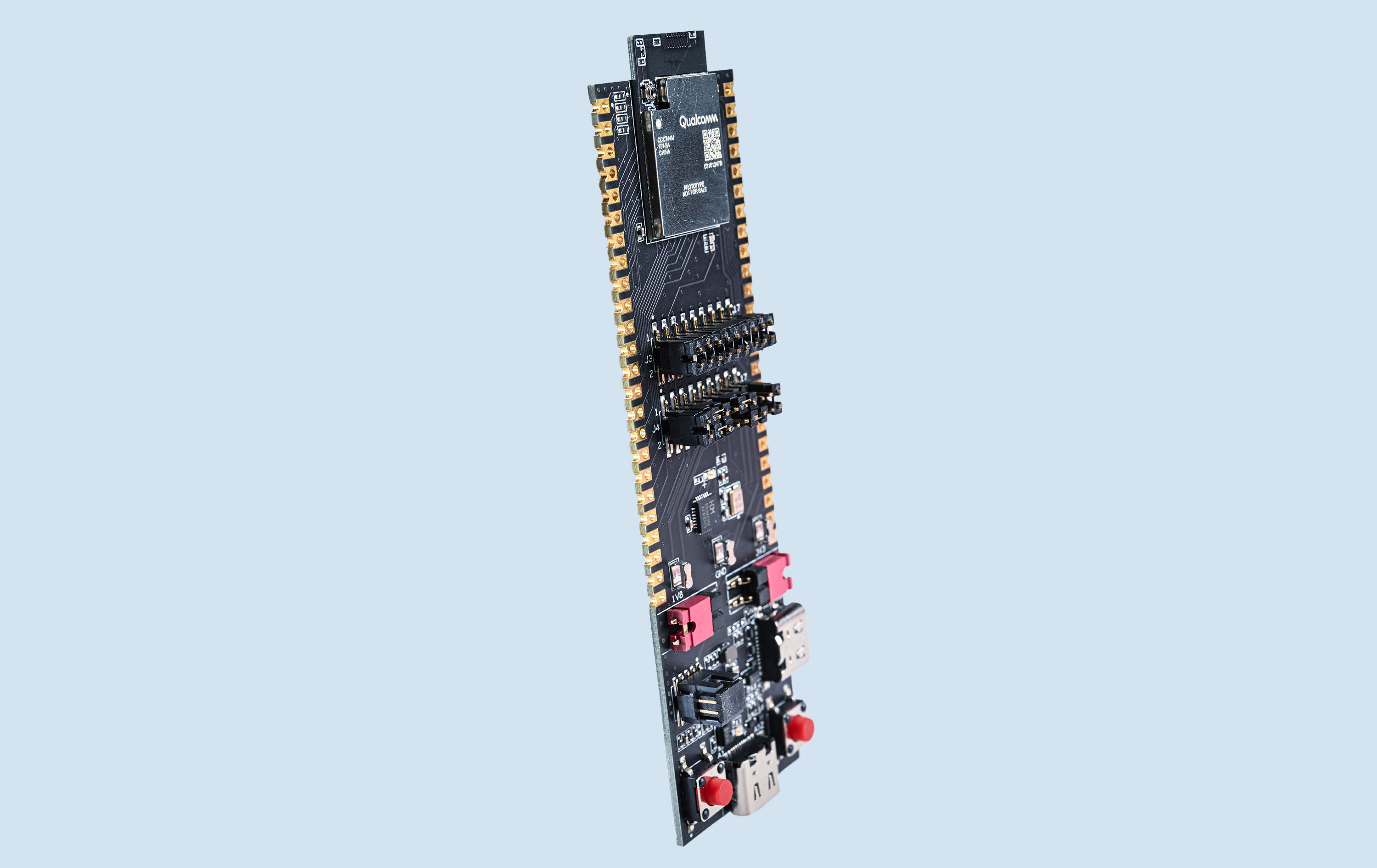

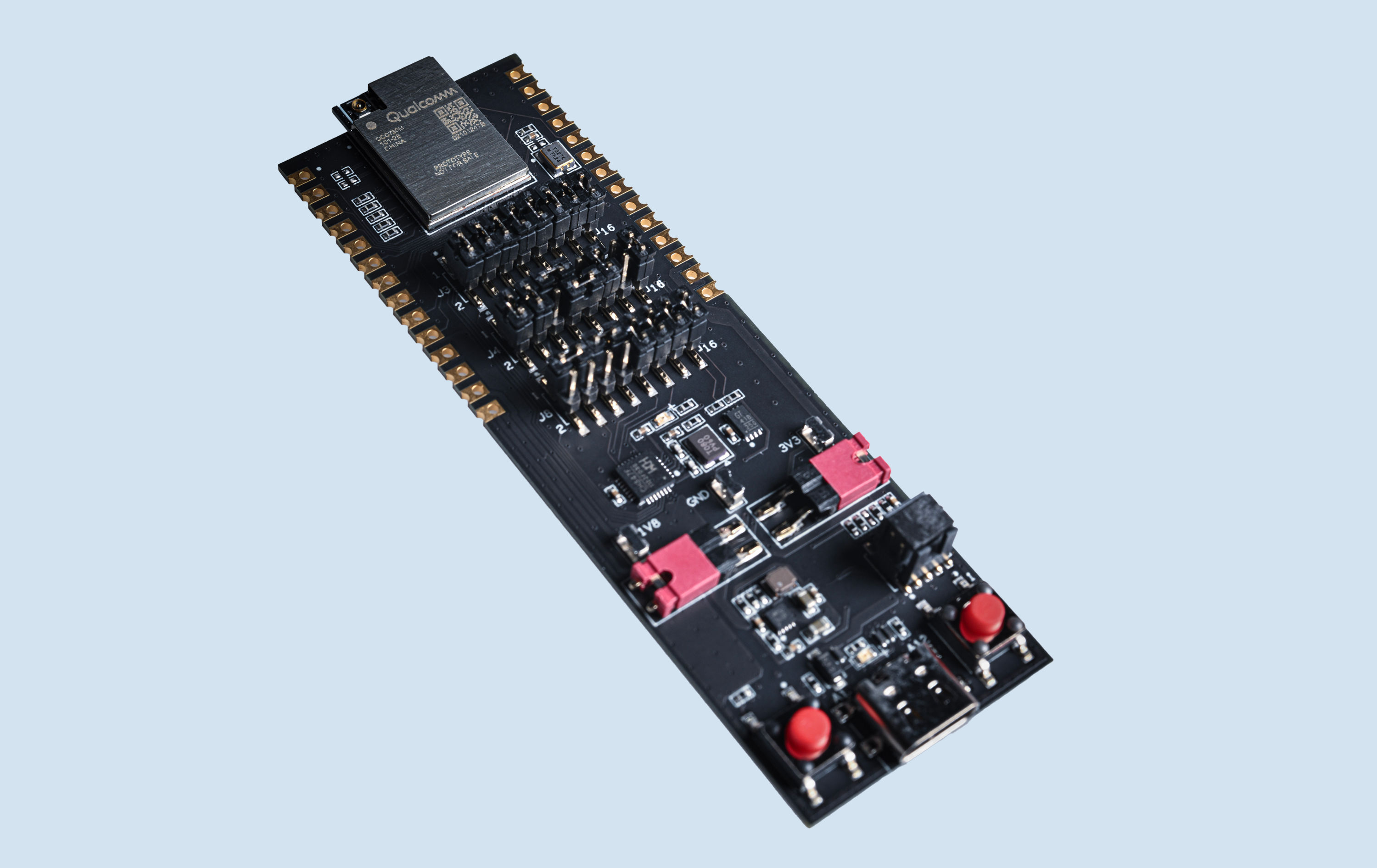

The QCC730M EVK consists of a main board with standard connectors and an integrated QCC730M micro-power Wi-Fi module which includes the QCC730-1 micro-power Wi-Fi chipset.

Product license agreement

Featured ResourcesBringing up Guide

User guide

QCC730M module

Open-source software SDK

2:36

Qualcomm® QCC730 Dev Kit: Introduction and set up

4:39

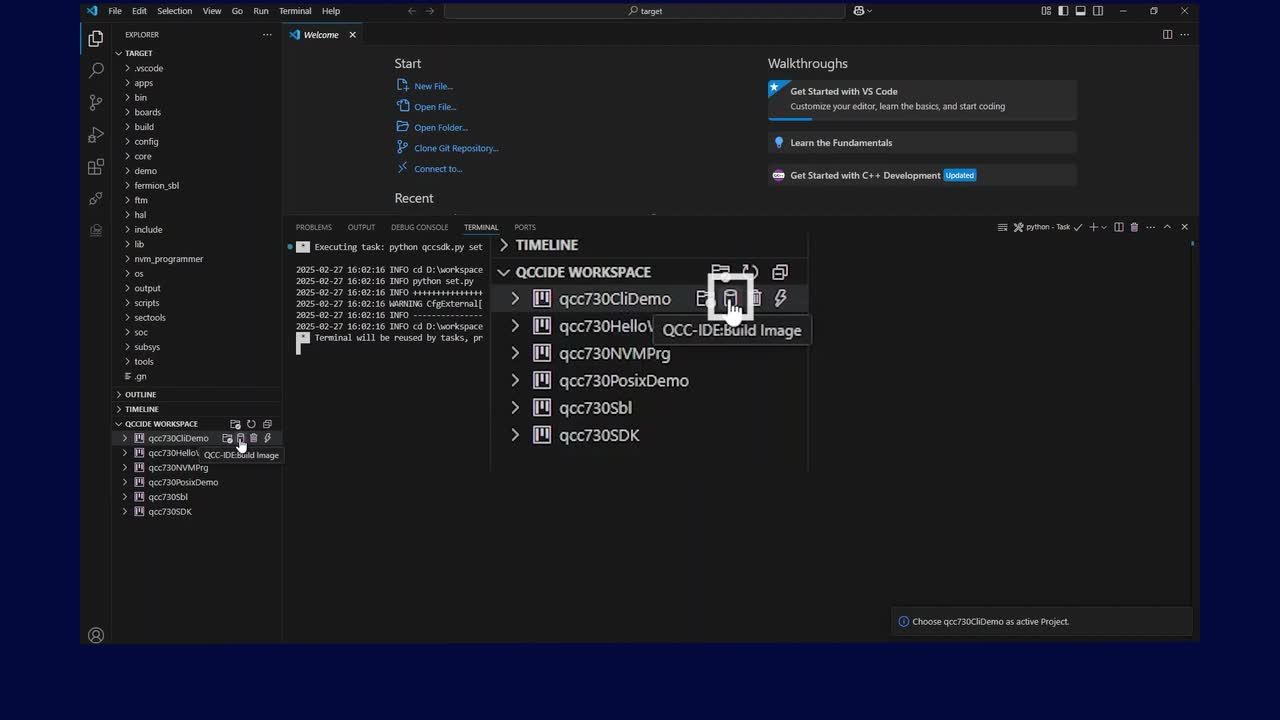

QCC730 Dev Kit IDE Setup

Video

Qualcomm^® QCC730
Dev Kit: IDE Setup

Video Player is loading.

Current Time 0:00

Duration 4:38

Loaded: 2.13%

Stream Type LIVE

Remaining Time 4:38

QCC730 Dev Kit IDE Setup

Mar 7, 2025 | 4:39

Micro-power Wi-Fi

Build solutions with longer battery life via selectable power modes and innovative power management thanks to the power-efficient Wi-Fi module of the QCC730M.

Design Flexibility

Gain extreme flexibility by operating in both hostless or hosted mode, supporting internal or external power amplifiers, and integrated non-volatile memory.

Open-source Development Environment

Accelerate your development with the open source software SDK available on CodeLinaro, the Qualcomm® Connectivity Integrated Development, and a VS Code extension plug-in.

Processor	QCC730M
Onboard Memory	1.5MB RRAM / 640KB SRAM
WiFi Standard	1x1 2.4GHz 802.11 a/b/g/n (Wi-Fi 4) Matter over Wifi supported
Operating Temperature	-20C to +85C
EVK Input Power	USB or 5V
Module Antenna Config	PCB Antenna or RF Connector
Module onboard Flash	4MB QSPI Flash
GPIO	15x
UART	1x
SPI	Secondary
I2C	1x Primary
QSPI	XiP QSPI (Primary)
ADC	General Purpose 12/14/16 bits
DAC	General Purpose 12-bit
JTAG	via GPIO

EVK Variants

The QCC730M EVK comes in 4 variants with a PCB antenna or RF Connector, and with an internal or external power amplifier:

Module	Order Number	FEM	Antenna Config	Ext Memory
QCC730M EVK	65-79685-1 EVK-QCC730M-1-00-0-AA	iPA	PCB Antenna	4MB Flash
	65-79685-2 EVK-QCC730M-1-00-0-AB	iPA	RF Connector
	65-79685-3 EVK-QCC730M-1-00-0-AD	xPA	PCB Antenna
	65-79685-4 EVK-QCC730M-1-00-0-AE	xPA	RF Connector
