Dragonfly O200
Active
Qualcomm Dragonfly™
O200
Contact Sales

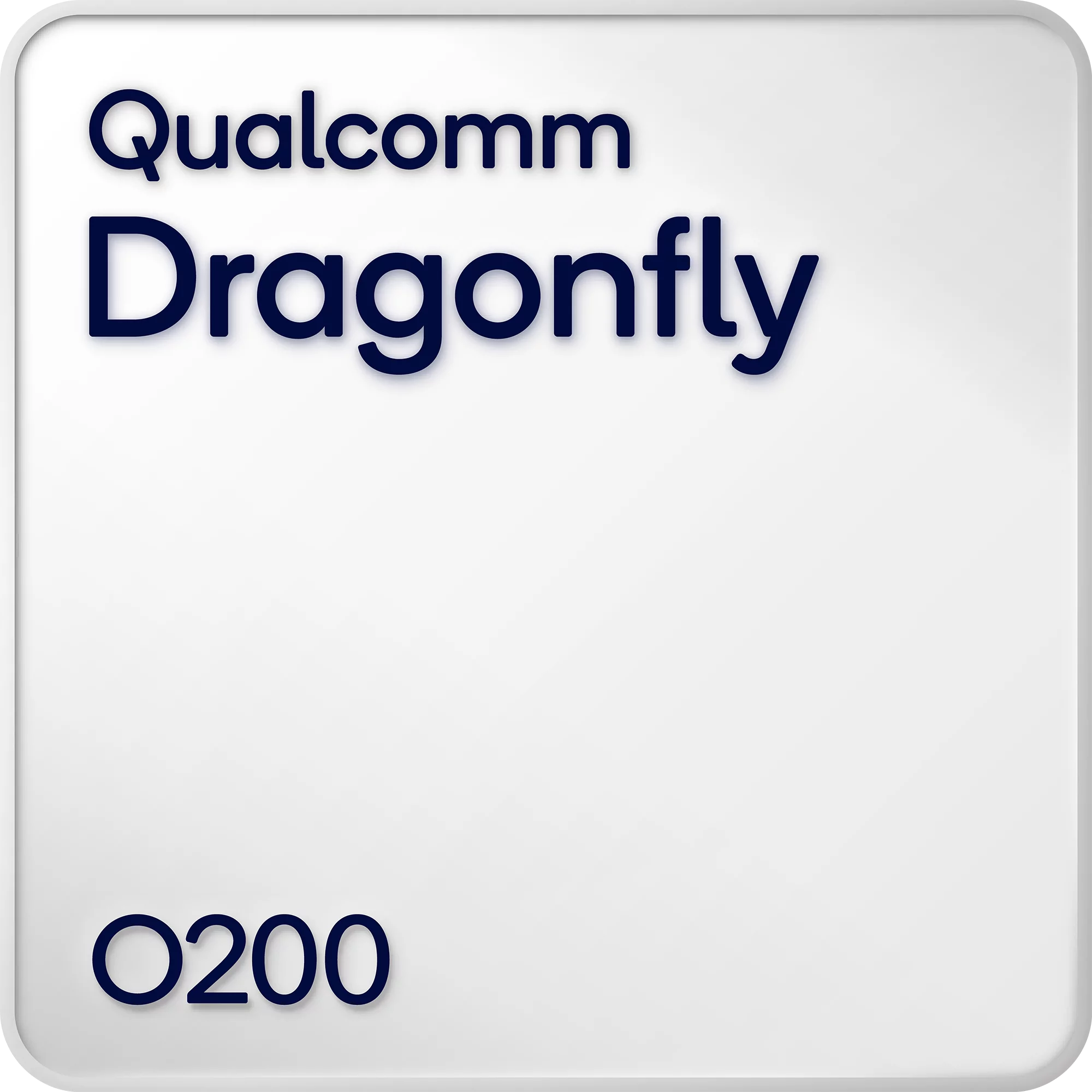

chip image

1.6T PAM4 Optical DSP

The Qualcomm Dragonfly™ O200 DSP is a 3nm CMOS single-chip, low-power and low-latency PAM4 optical transceiver Digital Signal Processor (DSP) retimer. It is a 200G/lane device delivering high performance, high reliability interconnect for 1.6T and 800G Optical Transceivers. The O200 includes integrated laser direct drive capability for Externally-Modulated Laser (EML) and Silicon Photonics (SiPho) based modulators.

Product license agreement

Use Cases

Optical modules (OSFP, QSFP, XPO) icon
Optical modules (OSFP, QSFP, XPO)

Benefits

default icon alt text
Advanced DSP technology
A suite of advanced signal processing algorithms engineered to deliver exceptional Bit Error Rate (BER) performance with ultra-low power consumption
default icon alt text
Powerful diagnostic technology
Offers a powerful suite of diagnostic and monitoring tools designed to give end users complete visibility into link performance, by leveraging real-time analytics across electrical or optical links.
default icon alt text
Low power MLSD
Industry-leading, low-power Maximum Likelihood Sequence Detection (MLSD)
default icon alt text
Integrated Driver
High BW Integrated high swing driver supporting 3Vpp for direct drive of EML and Silicon Photonic modulators, reducing cost and power consumption

Features

  • Diagnostics and monitoring: FEC error, EYE, SNR, Host/Line Loopback
  • Line Side Serdes Integrated Laser Driver support for EML & SiPho
  • Independent clocking per lane for breakout mode support
  • Full XBAR to ease layout
  • 200G with two generation backwards compatibility (100G PAM4 and 50G PAM4)
  • IEEE 802.3dj compliant IFS (Inner FEC Subsystem)
  • KP4 FEC Decode and Encode
  • PRBS gen/checker
  • Host side long Reach (LR) capability (40dB bump-bump)
