Dragonfly O100
Active
Qualcomm Dragonfly™
O100
Contact Sales

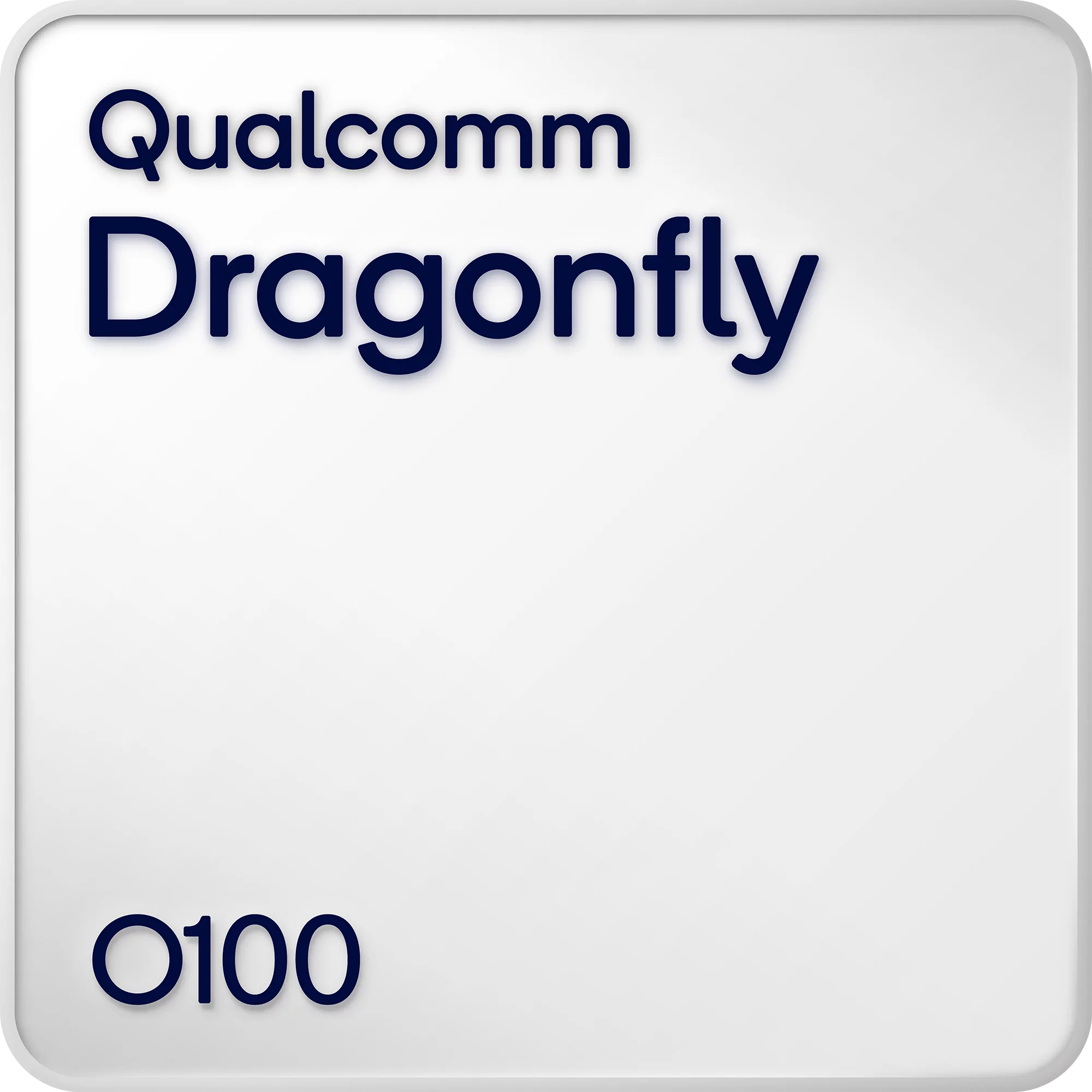

chip image

800G PAM4 Optical DSP

The Qualcomm Dragonfly™ O100 DSP is a 4nm CMOS single-chip, low-power and low-latency PAM4 optical transceiver Digital Signal Processor (DSP) retimer. It is a 100G/lane device delivering high performance, high reliability interconnect for 800G and 400G Optical Transceivers. The O100 includes integrated laser direct drive capability for Externally-Modulated Laser (EML) and Silicon Photonics (SiPho) based modulators.

Product license agreement

Use Cases

Optical modules (OSFP, QSFP, XPO) icon
Optical modules (OSFP, QSFP, XPO)

Benefits

default icon alt text
Advanced DSP technology
A suite of advanced signal processing algorithms engineered to deliver exceptional Bit Error Rate (BER) performance with ultra-low power consumption.
default icon alt text
Powerful diagnostic technology
Offers a powerful suite of diagnostic and monitoring tools designed to give end users complete visibility into link performance, by leveraging real-time analytics across electrical or optical links.
default icon alt text
Integrated high swing Driver
Integrated high swing driver supporting 3Vpp for directly driving EML and Silicon Photonics modulators, reducing cost and power consumption.

Features

  • Diagnostics and monitoring: FEC error, EYE, SNR, Host/Line Loopback
  • Line Side Serdes Integrated Laser Driver support for EML & SiPho
  • Independent clocking per lane for breakout mode support
  • Full XBAR to ease layout
  • 100G with two generation backwards compatibility (50G PAM4 and 25G NRZ)
  • PRBS gen/checker
