Dragonfly CU200
Active
Qualcomm Dragonfly™
CU200
Contact Sales

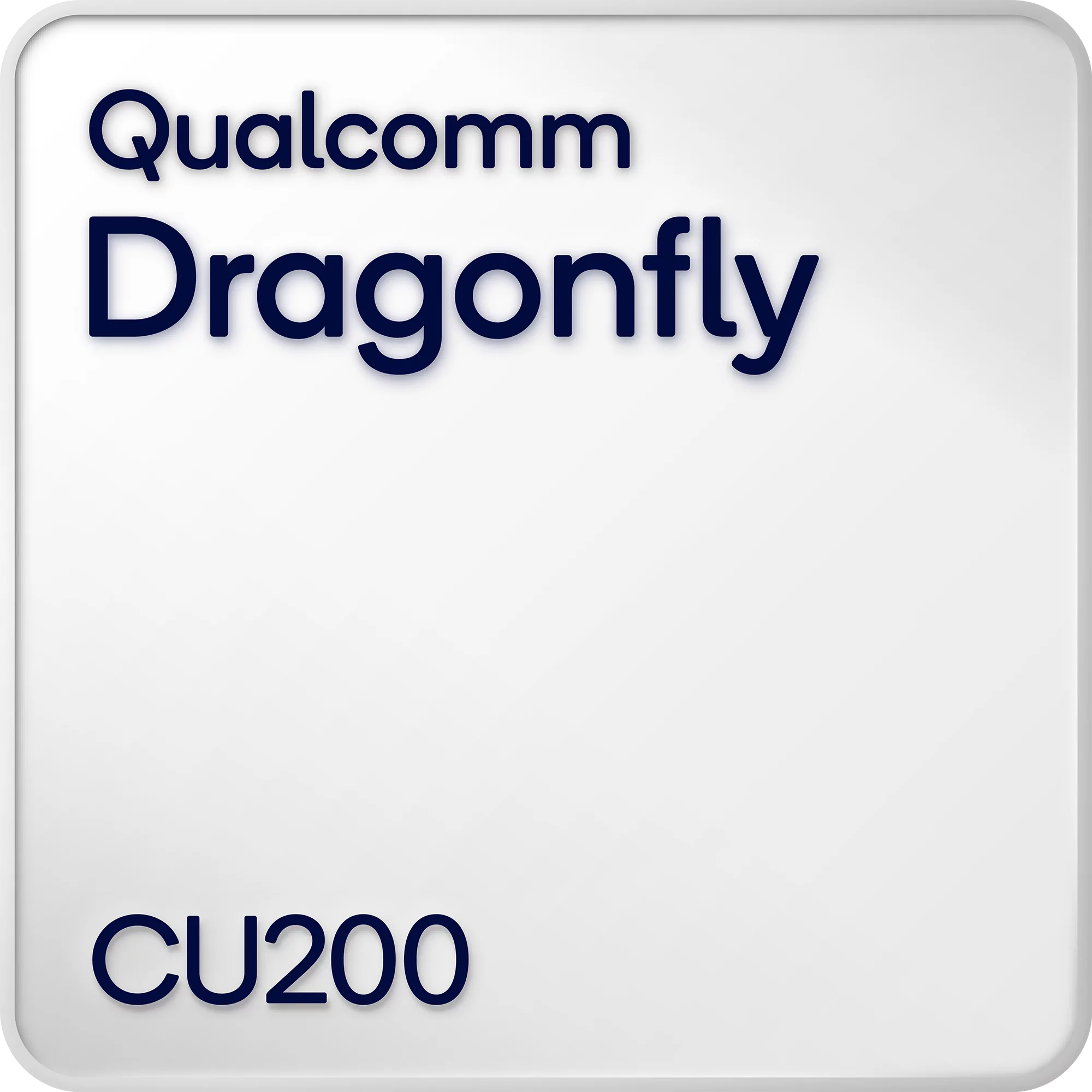

chip image

1.6T PAM4 Electrical DSP

The Qualcomm Dragonfly™ CU200 DSP is a 3nm CMOS single-chip, low-power and low-latency PAM4 Active Electrical Cable (AEC) Digital Signal Processor (DSP) retimer. It is a 200G/lane device delivering high performance, high reliability interconnect for 1.6T AECs. The CU200 can also function as an 8x212.5 Gbps protocol agnostic retimer.

Product license agreement

Use Cases

Active electrical cables icon
Active electrical cables
On-board electrical retimers icon
On-board electrical retimers

Benefits

default icon alt text
Advanced DSP technology
A suite of advanced signal processing algorithms engineered to deliver exceptional Bit Error Rate (BER) performance with ultra-low power consumption
default icon alt text
Powerful diagnostic technology
Offers a powerful suite of diagnostic and monitoring tools designed to give end users complete visibility into link performance, by leveraging real-time analytics across electrical or optical links.
default icon alt text
Low power MLSD
Industry-leading, low-power Maximum Likelihood Sequence Detection (MLSD)

Features

  • Diagnostics and monitoring: FEC error, EYE, SNR, Host/Line Loopback
  • Full XBAR to ease layout
  • 200G with two generation backwards compatibility (100G PAM4 and 50G PAM4)
  • IEEE 802.3dj compliant IFS (Inner FEC Subsystem)
  • KP4 FEC Decode and Encode
  • PRBS gen/checker
  • Extra Long Reach (XLR) capability (45dB bump-bump)
