Dragonfly CO400
Active
Qualcomm Dragonfly™
CO400
Contact Sales

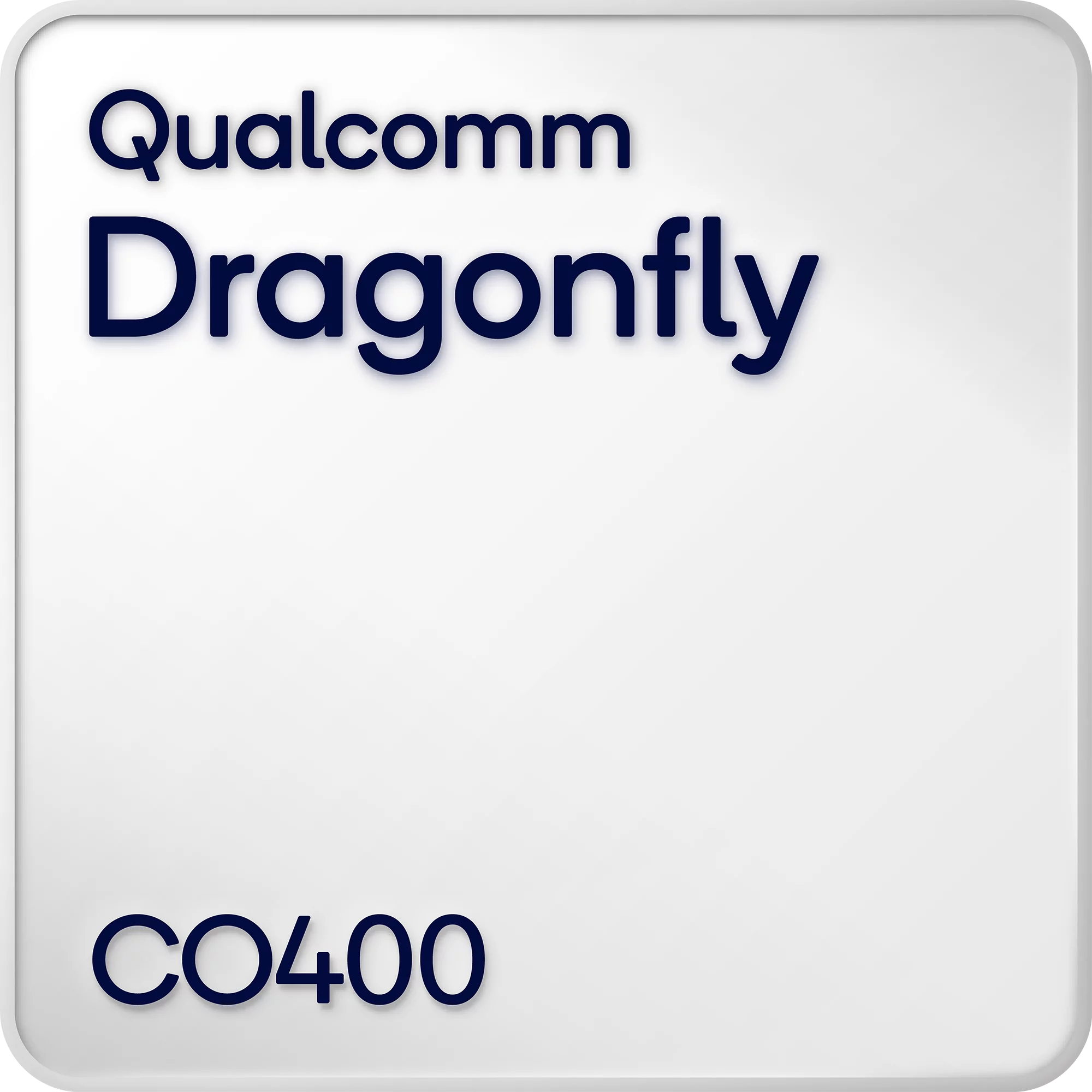

chip image

800G Coherent-lite Optical DSP

The Qualcomm Dragonfly™ CO400 DSP is a 5nm CMOS single-chip, low-latency Coherent-lite Digital Signal Processor (DSP), utilizing DP-QAM16 modulation at 400G/wavelength to enable campus reach connectivity between datacenters. The primary application is up to 20km reach 800G-LR2 optical modules using O-band to support 2x400G transmission.

Product license agreement

Use Cases

Coherent lite Optical modules icon
Coherent lite Optical modules

Benefits

default icon alt text
DSP Controlled laser
Enables use of low cost lasers
default icon alt text
Multiple FEC Options
Low latency Hamming, High performance BCH
default icon alt text
O-band Reach
Supports up to 20km reach using O-band optics

Features

  • DP 16QAM 2x400G
  • Host Compliant to IEEE 802.3 df Standard
  • Up to 20km reach
  • PRBS gen/checker
  • Diagnostics and Monitoring: FEC error, EYE, SNR, Host/Line Loopback
  • FEC: Hamming or BCH option
  • Optional MACSec
